Hozelock Bioforce Revolution Spares

You Are Here : Spare Parts > Hozelock Spare Parts > Hozelock Bioforce Revolution Spares

Hozelock Bioforce Revolution Filter Spare Parts

Hozelock Bioforce Revolution Filter Spare Parts

The Hozelock Bioforce Revolution Filter spares that are currently available include Replacement Foam Media, Replacement Quartz Sleeves, UV Bulbs, Hosetail Sets, New Lids, Lid Electrical Sections, O'rings, Cleaning Diverter Valves and Metal Lid Bands

Spare Parts - Quick Links

Hozelock Bioforce Revolution 6000 / 9000 / 14000  Filter Instruction Manual PDF Logo Hozelock Bioforce Revolution 6000 / 9000 / 14000 Filter Instruction Manual

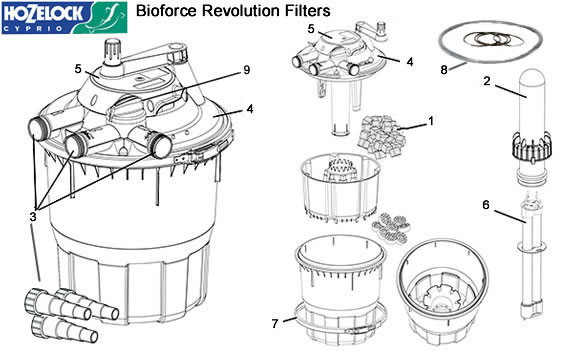

Hozelock Bioforce Revolution Spares
Diagram - Part 1

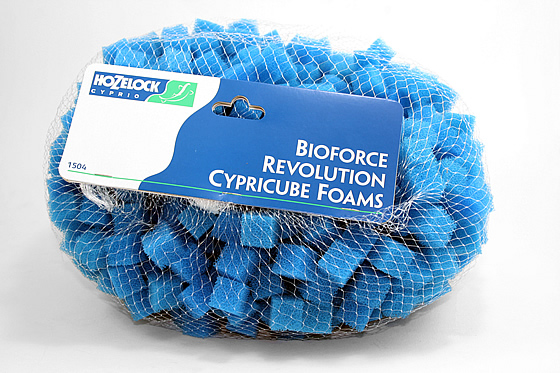

Hozelock Bioforce Revolution Foam Cubes (CypriCubes) (1504)
Our Ref: HZS211 - Manufacturers Ref: 100-000-245

Diagram Part Ref: 1

Bioforce Revolution 6000 / 9000 - 1 Pack
Bioforce Revolution 14000 - 2 Packs
Click to Enlarge an image of Hozelock Bioforce Revolution Foam Cubes (CypriCubes) (1504)Large image of Hozelock Bioforce Revolution Foam Cubes (CypriCubes) (1504)
Roll over to zoom
Our Price:
£37.34
Quantity:


Hozelock Bioforce Revolution Spares
Diagram - Part 2

Hozelock Quartz Sleeve Bioforce Revolution 6000 (18w) (1511 0000)
Our Ref: HZQ042 - Manufacturers Ref: 100-000-247
Click to Enlarge an image of Hozelock Quartz Sleeve Bioforce Revolution 6000 (18w) (1511 0000)Large image of Hozelock Quartz Sleeve Bioforce Revolution 6000 (18w) (1511 0000)
Roll over to zoom
Our Price:
£42.29
Quantity:

Replacement quartz sleeves suitable for Hozelock Bioforce Revolution 6000

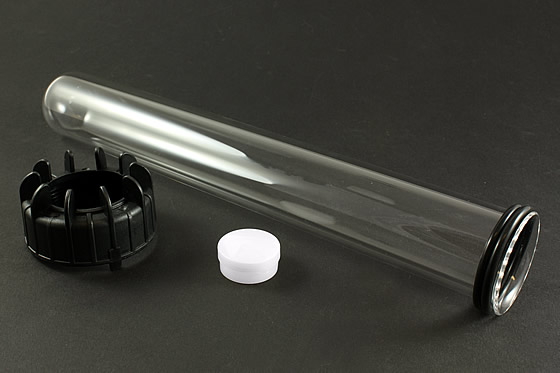

Hozelock Quartz Sleeve Bioforce Revolution 9000 (24w)
Our Ref: HZQ043 - Manufacturers Ref: 100-000-248
Click to Enlarge an image of Hozelock Quartz Sleeve Bioforce Revolution 9000 (24w)Large image of Hozelock Quartz Sleeve Bioforce Revolution 9000 (24w)
Roll over to zoom
Our Price:
£49.49
Quantity:

Replacement quartz sleeves suitable for Hozelock Bioforce Revolution 9000 (24w)

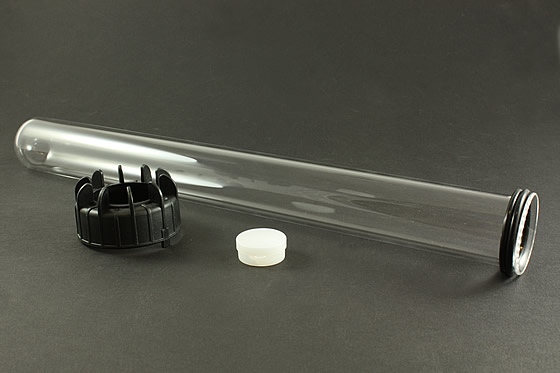

Hozelock Quartz Sleeve Bioforce Revolution 14000 (36w) (1513 0000)
Our Ref: HZQ044 - Manufacturers Ref: 100-000-249

Availability - Currently only 2 in stock


Click to Enlarge an image of Hozelock Quartz Sleeve Bioforce Revolution 14000 (36w) (1513 0000)Large image of Hozelock Quartz Sleeve Bioforce Revolution 14000 (36w) (1513 0000)
Roll over to zoom
Our Price:
£52.19
Quantity:

Replacement quartz sleeves suitable for Hozelock Bioforce Revolution 14000 (36w)

Hozelock Bioforce Revolution Spares
Diagram - Part 3

Hozelock Bioforce Nut & Hosetails (set of 3)
Our Ref: HZS032 - Manufacturers Ref: 100-002-285

Diagram Part Ref: 3
Suitable for 25mm, 32mm, 40mm (1", 1¼",1½") flexible pipework
Availability - Currently only 2 in stock


Click to Enlarge an image of Hozelock Bioforce Nut & Hosetails (set of 3)Large image of Hozelock Bioforce Nut & Hosetails (set of 3)
Roll over to zoom
Our Price:
£19.79
Quantity:

Includes 3 x Hosetails, 3 x Hosetail O rings, 3 x Nuts and 2 x Lid Leavers

Hozelock Bioforce Revolution Spares
Diagram - Part 4

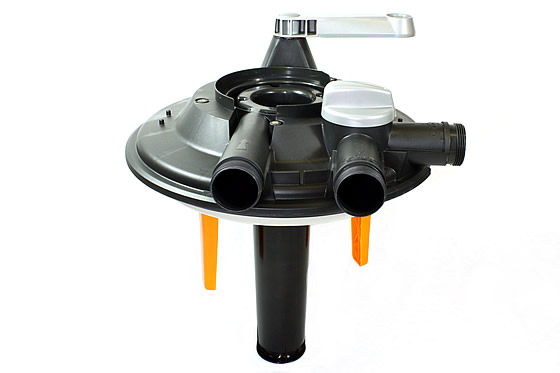

Hozelock Bioforce Revolution 6000 / 9000 Lower Lid (No Electrics) (Z10030)
Our Ref: HZS212 - Manufacturers Ref: 100-002-240

Diagram Part Ref: 4
Click to Enlarge an image of Hozelock Bioforce Revolution 6000 / 9000 Lower Lid (No Electrics) (Z10030)Large image of Hozelock Bioforce Revolution 6000 / 9000 Lower Lid (No Electrics) (Z10030)
Roll over to zoom
Our Price:
£108.00
Quantity:

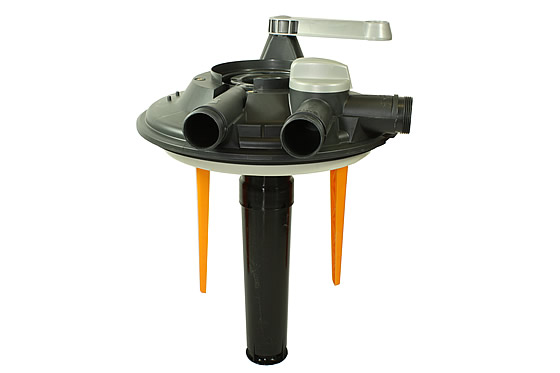

Hozelock Bioforce Revolution 14000 Lower Lid (No Electrics) (Z10031)
Our Ref: HZS213 - Manufacturers Ref: 100-002-241

Diagram Part Ref: 4

Availability - Currently only 2 in stock


Click to Enlarge an image of Hozelock Bioforce Revolution 14000 Lower Lid (No Electrics) (Z10031)Large image of Hozelock Bioforce Revolution 14000 Lower Lid (No Electrics) (Z10031)
Roll over to zoom
Our Price:
£116.99
Quantity:


Hozelock Bioforce Revolution Spares
Diagram - Part 5

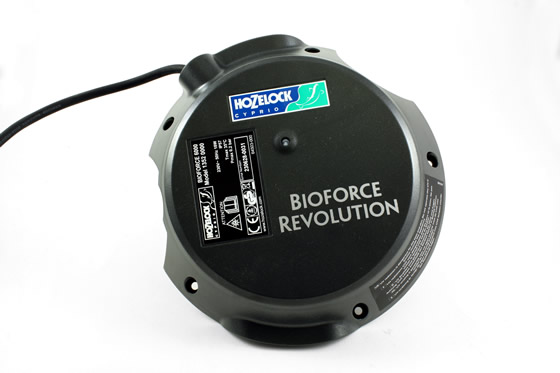

Hozelock Bioforce Revolution 6000 Electrical Assembly (Z10032)
Our Ref: HZS214 - Manufacturers Ref: 100-002-242

Diagram Part Ref: 5
Click to Enlarge an image of Hozelock Bioforce Revolution 6000 Electrical Assembly (Z10032)Large image of Hozelock Bioforce Revolution 6000 Electrical Assembly (Z10032)
Roll over to zoom
Our Price:
£89.99
Quantity:

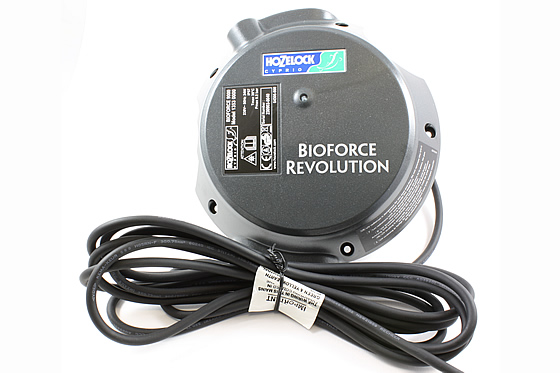

Hozelock Bioforce Revolution 9000 Electrical Assembly (Z10035)
Our Ref: HZS215 - Manufacturers Ref: 100-002-244

Diagram Part Ref: 5
Click to Enlarge an image of Hozelock Bioforce Revolution 9000 Electrical Assembly (Z10035)Large image of Hozelock Bioforce Revolution 9000 Electrical Assembly (Z10035)
Roll over to zoom
Our Price:
£108.00
Quantity:

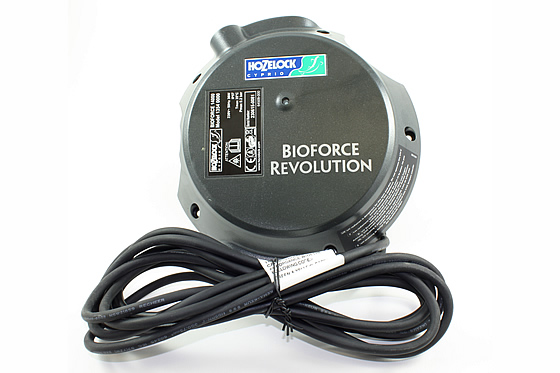

Hozelock Bioforce Revolution 14000 Electrical Assembly (Z10038)
Our Ref: HZS216 - Manufacturers Ref: 100-002-246

Diagram Part Ref: 5
Click to Enlarge an image of Hozelock Bioforce Revolution 14000 Electrical Assembly (Z10038)Large image of Hozelock Bioforce Revolution 14000 Electrical Assembly (Z10038)
Roll over to zoom
Our Price:
£121.50
Quantity:


Hozelock Bioforce Revolution Spares
Diagram - Part 6

Hozelock - 18w PLL UV Bulb (4 Pin)
Our Ref: TMB033 - Manufacturers Ref: 100-000-285

Diagram Part Ref: 6

Suitable for the Bioforce Revolution 6000 Filter Units
Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Hozelock - 18w PLL UV Bulb (4 Pin)Large image of Hozelock - 18w PLL UV Bulb (4 Pin)
Roll over to zoom
Our Price:
£29.99
Quantity:

UV Bulb Specification
• Description : Hozelock 18w PLL UV bulb (4 pins at one end)
• Length - Overall : 225mm
• Length - Excluding Pins : 218mm
• Length - Glass : 195mm
• Ceramic - Width : 23mm
• Ceramic - Breadth : 45mm
Generic - 18w PLL UV Bulb (4 Pin)
Our Ref: TMB020

Not Suitable for Hozelock Vorton

Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Generic - 18w PLL UV Bulb (4 Pin)Large image of Generic - 18w PLL UV Bulb (4 Pin)
Roll over to zoom
Our Price:
£19.98
Quantity:

UV Bulb Specification
• Description : Generic 18w PLL UV bulb (4 pins at one end)
• Length - Overall : 225mm
• Length - Excluding Pins : 218mm
• Length - Glass : 195mm
• Ceramic - Width : 23mm
• Ceramic - Breadth : 45mm
Hozelock - 24W - 4 Pin PL-L TUV Ultra Violet Bulb
Our Ref: TMB034 - Manufacturers Ref: 100-000-244

Diagram Part Ref: 6

Suitable for the Bioforce Revolution 9000 Filter Units
Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Hozelock - 24W - 4 Pin PL-L TUV Ultra Violet BulbLarge image of Hozelock - 24W - 4 Pin PL-L TUV Ultra Violet Bulb
Roll over to zoom
Our Price:
£36.98
Quantity:

UV Bulb Specification
• Description : Hozelock 24w PLL UV bulb (4 pins at one end)
• Length - Overall : 326mm
• Length - Excluding Pins : 319mm
• Length - Glass : 294mm
• Ceramic - Width : 23mm
• Ceramic - Breadth : 45mm
Generic - 24W - 4 Pin PLL TUV Ultra Violet Bulb
Our Ref: TMB021

Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Generic - 24W - 4 Pin PLL TUV Ultra Violet BulbLarge image of Generic - 24W - 4 Pin PLL TUV Ultra Violet Bulb
Roll over to zoom
Our Price:
£22.99
Quantity:

UV Bulb Specification
• Description : Generic 24w PLL UV bulb (4 pins at one end)
• Length - Overall : 318mm
• Length - Excluding Pins : 311mm
• Length - Glass : 286mm
• Ceramic - Width : 23mm
• Ceramic - Breadth : 45mm
Hozelock - 36W - 4 Pin PL-L TUV Ultra Violet Bulb
Our Ref: TMB035 - Manufacturers Ref: 100-000-287

Diagram Part Ref: 6

Suitable for the Bioforce Revolution 14000 Filter Units
Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Hozelock - 36W - 4 Pin PL-L TUV Ultra Violet BulbLarge image of Hozelock - 36W - 4 Pin PL-L TUV Ultra Violet Bulb
Roll over to zoom
Our Price:
£39.98
Quantity:

UV Bulb Specification
• Description : Hozelock 36w PLL UV bulb (4 pins at one end)
• Length - Overall : 414mm
• Length - Excluding Pins : 407mm
• Length - Glass : 382mm
• Ceramic - Width : 23mm
• Ceramic - Breadth : 45mm
Generic - 36W - 4 Pin PL-L TUV Ultra Violet Lamp
Our Ref: TMB022

Not Suitable for Hozelock Vorton

Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Generic - 36W - 4 Pin PL-L TUV Ultra Violet LampLarge image of Generic - 36W - 4 Pin PL-L TUV Ultra Violet Lamp
Roll over to zoom
Our Price:
£25.98
Quantity:

UV Bulb Specification
• Description : Generic 36w PLL UV bulb (4 pins at one end)
• Length - Overall : 408mm
• Length - Excluding Pins : 401mm
• Length - Glass : 376mm
• Ceramic - Width : 23mm
• Ceramic - Breadth : 45mm

Hozelock Bioforce Revolution Spares
Diagram - Part 7

Hozelock Bioforce Revolution 6000 - 14000 Lid Clamp (Z12365)
Our Ref: HZS047 - Manufacturers Ref: 100-002-287

Diagram Part Ref: 5
Click to Enlarge an image of Hozelock Bioforce Revolution 6000 - 14000 Lid Clamp (Z12365)Large image of Hozelock Bioforce Revolution 6000 - 14000 Lid Clamp (Z12365)
Roll over to zoom
Our Price:
£37.80
Quantity:


Hozelock Bioforce Revolution Spares
Diagram - Part 8

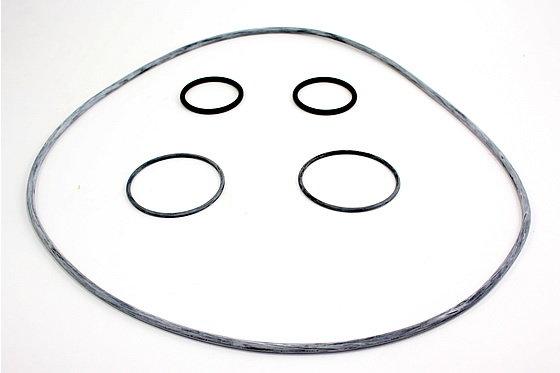

Hozelock Bioforce Revolution O 'Ring Set (1510)
Our Ref: HZS220 - Manufacturers Ref: 100-000-246

Diagram Part Ref: 8

This kit includes a main body o'ring, 2 quartz o'rings and 2 electrical head seals.
Click to Enlarge an image of Hozelock Bioforce Revolution O 'Ring Set (1510)Large image of Hozelock Bioforce Revolution O 'Ring Set (1510)
Roll over to zoom
Our Price:
£14.39
Quantity:


Hozelock Bioforce Revolution Spares
Diagram - Part 9

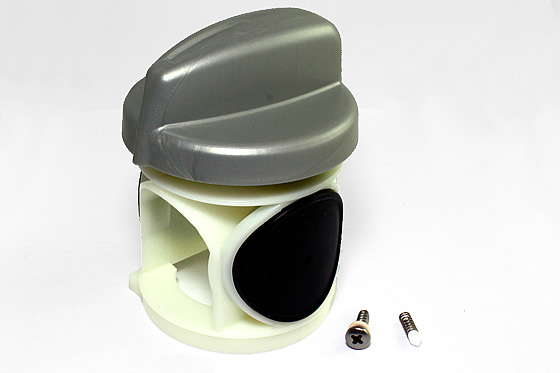

Hozelock Bioforce Revolution Cleaning Diverter Valve Replacement (Z10041)
Our Ref: HZS221 - Manufacturers Ref: 100-002-248

Diagram Part Ref: 9
Click to Enlarge an image of Hozelock Bioforce Revolution Cleaning Diverter Valve Replacement (Z10041)Large image of Hozelock Bioforce Revolution Cleaning Diverter Valve Replacement (Z10041)
Roll over to zoom
Our Price:
£8.53
Quantity:
