Oase Filtral 3000 Combined Filter Spare Parts

You Are Here : Spare Parts > Oase Spare Parts > Oase Pond Filter Spare Parts > Oase Filtral Combined Filter Spare Parts > Oase Filtral 3000 Combined Filter Spare Parts

Oase Filtral 3000 Combined Filter Spare Parts

Oase Filtral 3000 Combined Filter Spare Parts

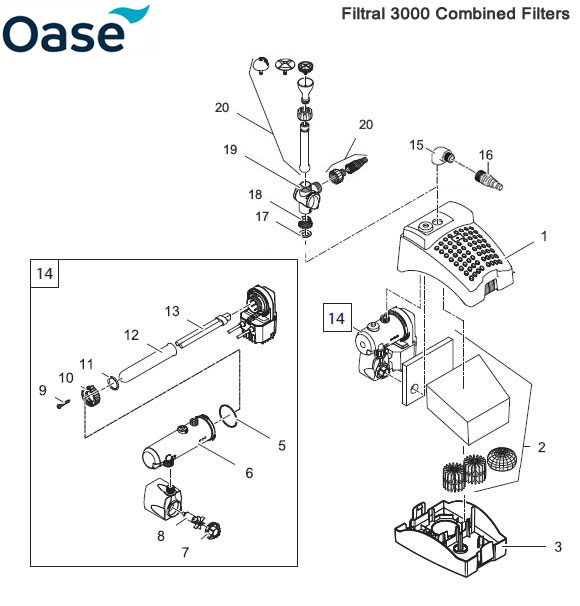

The Oase Filtral 3000 currently has the following pare parts available, the top cage, filtration media pack, bottom cage, fountain set, water body / UV body O ring, water body / UV body, pump impellor housing, pump impellor, UV quartz screw, UV quartz sleeve, UV quartz O ring, UV quartz sleeve nut, replacement UV bulbs, complete pump and UV assembly, elbowed outlet and outlet hosetail.

Spare Parts - Quick Links

Oase Filtral 3000 Combined Filter Spare Parts
Diagram - Part 1

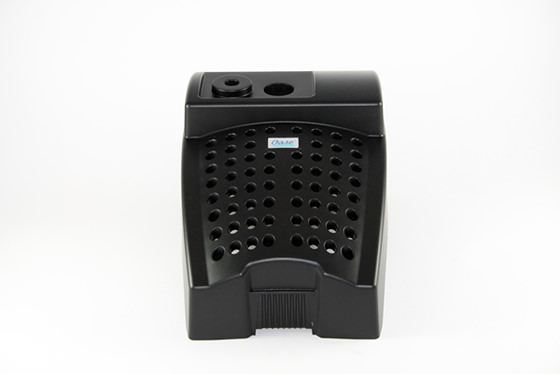

Oase Filtral 3000 - Top Cage (14041)
Our Ref: OAS660 - Manufacturers Ref: 14041

Diagram Part Ref: 1

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase Filtral 3000 - Top Cage (14041)Large image of Oase Filtral 3000 - Top Cage (14041)
Roll over to zoom
Our Price:
£7.19
 Quantity:

Oase Filtral 3000 Combined Filter Spare Parts
Diagram - Part 2

Oase Filtral 3000 - Filter Media Set (13705)
Our Ref: OAS661 - Manufacturers Ref: 13705

Diagram Part Ref: 2
Click to Enlarge an image of Oase Filtral 3000 - Filter Media Set (13705)Large image of Oase Filtral 3000 - Filter Media Set (13705)
Roll over to zoom
Our Price:
£16.39
 Quantity:

Oase Filtral 3000 Combined Filter Spare Parts
Diagram - Part 3

Oase Filtral 3000 - Base Cage (13623)
Our Ref: OAS662 - Manufacturers Ref: 13623

Diagram Part Ref: 3

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase Filtral 3000 - Base Cage (13623)Large image of Oase Filtral 3000 - Base Cage (13623)
Roll over to zoom
Our Price:
£7.19
 Quantity:

Oase Filtral 3000 Combined Filter Spare Parts
Diagram - Part 4

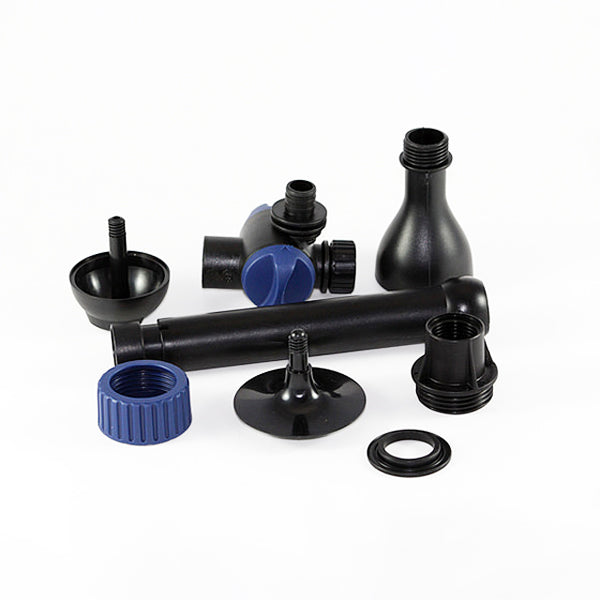

Oase Filtral 3000 - Fountain Outlet Assembly (13643)
Our Ref: OAS663 - Manufacturers Ref: 13643

Diagram Part Ref: 4

Availability - Currently only 2 in stock


Click to Enlarge an image of Oase Filtral 3000 - Fountain Outlet Assembly (13643)Large image of Oase Filtral 3000 - Fountain Outlet Assembly (13643)
Roll over to zoom
Our Price:
£8.57
 Quantity:

Oase Filtral 3000 Combined Filter Spare Parts
Diagram - Part 5

Oase Filtral 3000 - UV Body / Water Housing O-Ring (73490 was 28553)
Our Ref: OAS677 - Manufacturers Ref: 73490

Diagram Part Ref: 5
Click to Enlarge an image of Oase Filtral 3000 - UV Body / Water Housing O-Ring (73490 was 28553)Large image of Oase Filtral 3000 - UV Body / Water Housing O-Ring (73490 was 28553)
Roll over to zoom
Our Price:
£0.98
 Quantity:

Oase Filtral 3000 Combined Filter Spare Parts
Diagram - Part 6

Oase Filtral 3000 - UV Body / Water Housing (13965)
Our Ref: OAS664 - Manufacturers Ref: 13965

Diagram Part Ref: 6
Click to Enlarge an image of Oase Filtral 3000 - UV Body / Water Housing (13965)Large image of Oase Filtral 3000 - UV Body / Water Housing (13965)
Roll over to zoom
Our Price:
£8.04
 Quantity:

Oase Filtral 3000 Combined Filter Spare Parts
Diagram - Part 7

Oase Filtral 3000 - Impeller Housing (35762)
Our Ref: OAS257 - Manufacturers Ref: 35762

Diagram Part Ref: 7

Availability - Currently only 1 in stock


Click to Enlarge an image of Oase Filtral 3000 - Impeller Housing (35762)Large image of Oase Filtral 3000 - Impeller Housing (35762)
Roll over to zoom
Our Price:
£4.43
 Quantity:

Oase Filtral 3000 Combined Filter Spare Parts
Diagram - Part 8

Oase Filtral 3000 - Impeller (28351 was 35897)
Our Ref: OAS253 - Manufacturers Ref: 28351

Diagram Part Ref: 8
Click to Enlarge an image of Oase Filtral 3000 - Impeller (28351 was 35897)Large image of Oase Filtral 3000 - Impeller (28351 was 35897)
Roll over to zoom
Our Price:
£8.04
 Quantity:

Oase Filtral 3000 Combined Filter Spare Parts
Diagram - Part 9

Oase Filtral 3000 - Quartz Nut Oval Head Screw (27891)
Our Ref: OAS665 - Manufacturers Ref: 27891

Diagram Part Ref: 9
Click to Enlarge an image of Oase Filtral 3000 - Quartz Nut Oval Head Screw (27891)Large image of Oase Filtral 3000 - Quartz Nut Oval Head Screw (27891)
Roll over to zoom
Our Price:
£0.98
 Quantity:

Oase Filtral 3000 Combined Filter Spare Parts
Diagram - Part 10

Oase Filtral 3000 - Quartz Nut (12049)
Our Ref: OAS666 - Manufacturers Ref: 12049

Diagram Part Ref: 10
Click to Enlarge an image of Oase Filtral 3000 - Quartz Nut (12049)Large image of Oase Filtral 3000 - Quartz Nut (12049)
Roll over to zoom
Our Price:
£1.78
 Quantity:

Oase Filtral 3000 Combined Filter Spare Parts
Diagram - Part 11

Oase Filtral 3000 - Quartz Nut O-Ring (73481 was 19475)
Our Ref: OAS681 - Manufacturers Ref: 73481

Diagram Part Ref: 16
Click to Enlarge an image of Oase Filtral 3000 - Quartz Nut O-Ring (73481 was 19475)Large image of Oase Filtral 3000 - Quartz Nut O-Ring (73481 was 19475)
Roll over to zoom
Our Price:
£1.69
 Quantity:

Oase Filtral 3000 Combined Filter Spare Parts
Diagram - Part 12

Oase Filtral 3000 - Quartz (14193)
Our Ref: OAQ013 - Manufacturers Ref: 14193

Add Oase Silicone Grease - 10ml (+ £5.38)

Diagram Part Ref: 12
Click to Enlarge an image of Oase Filtral 3000 - Quartz (14193)Large image of Oase Filtral 3000 - Quartz (14193)
Roll over to zoom
Our Price:
£17.95
 Quantity:

Oase Filtral 3000 Combined Filter Spare Parts
Diagram - Part 13

Oase 7w PLS UV Bulb (2 Pin)
Our Ref: TMB027 - Manufacturers Ref: 57111

Diagram Part Ref: 13

Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Oase 7w PLS UV Bulb (2 Pin)Large image of Oase 7w PLS UV Bulb (2 Pin)
Roll over to zoom
Our Price:
£21.98
 Quantity:

UV Bulb Specification
• Description : Oase 7w PLS UV bulb (2 pins at one end and one lug per side)
• Length - Overall : 136mm
• Length - Glass : 96mm
• Ceramic - Width : 16mm
• Ceramic - Breadth : 32mm

Oase Filtral 3000 Combined Filter Spare Parts
Diagram - Part 14

Oase Filtral 3000 - Complete Pump / UV Assembly - 7W (21615 was 13966)
Our Ref: OAS668 - Manufacturers Ref: 21615

Diagram Part Ref: 14
Unfortunately this product Currently Out of Stock
Please click here to send us your details and we will contact you as soon as it becomes available.
Our Price:
£73.06
 Quantity:

Oase Filtral 3000 Combined Filter Spare Parts
Diagram - Part 15

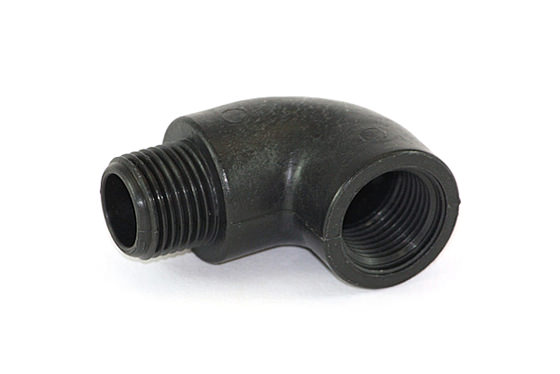

Oase Filtral Elbowed Outlet Connector (20191)
Our Ref: OAS684 - Manufacturers Ref: 20191

Diagram Part Ref: 15
Click to Enlarge an image of Oase Filtral Elbowed Outlet Connector (20191)Large image of Oase Filtral Elbowed Outlet Connector (20191)
Roll over to zoom
Our Price:
£4.27
 Quantity:

Oase Filtral 3000 Combined Filter Spare Parts
Diagram - Part 16

Oase 1/2 Stepped Hose Tail - 42429 (23641)
Our Ref: OAS210 - Manufacturers Ref: 42429

Diagram Part Ref: 16
Click to Enlarge an image of Oase 1/2 Stepped Hose Tail - 42429 (23641)Large image of Oase 1/2 Stepped Hose Tail - 42429 (23641)
Roll over to zoom
Our Price:
£2.62
 Quantity:

Oase Filtral 3000 Combined Filter Spare Parts
Diagram - Part 17

Oase Filtral 3000 / 6000 / 9000 - Outlet Gasket (29388)
Our Ref: OAS675 - Manufacturers Ref: 29388

Diagram Part Ref: 6
Click to Enlarge an image of Oase Filtral 3000 / 6000 / 9000 - Outlet Gasket (29388)Large image of Oase Filtral 3000 / 6000 / 9000 - Outlet Gasket (29388)
Roll over to zoom
Our Price:
£0.49
 Quantity:

Oase Filtral 3000 Combined Filter Spare Parts
Diagram - Part 18

Oase Filtral 3000 / 6000 / 9000 - Outlet T Nut (13427)
Our Ref: OAS676 - Manufacturers Ref: 13427

Diagram Part Ref: 7
Click to Enlarge an image of Oase Filtral 3000 / 6000 / 9000 - Outlet T Nut (13427)Large image of Oase Filtral 3000 / 6000 / 9000 - Outlet T Nut (13427)
Roll over to zoom
Our Price:
£1.34
 Quantity:

Oase Filtral 3000 Combined Filter Spare Parts
Diagram - Part 19

Oase Filtral 6000 / 9000 - Fountain T-Controller (43083 was 20830)
Our Ref: OAS251 - Manufacturers Ref: 43290

Diagram Part Ref: 8
Click to Enlarge an image of Oase Filtral 6000 / 9000 - Fountain T-Controller (43083 was 20830)Large image of Oase Filtral 6000 / 9000 - Fountain T-Controller (43083 was 20830)
Roll over to zoom
Our Price:
£13.03
 Quantity:

Oase Filtral 3000 Combined Filter Spare Parts
Diagram - Part 20

Oase Filtral 6000 / 9000 - Fountain Tube And Head Set (43083 was 35717)
Our Ref: OAS250 - Manufacturers Ref: 43083

Diagram Part Ref: 9
Click to Enlarge an image of Oase Filtral 6000 / 9000 - Fountain Tube And Head Set (43083 was 35717)Large image of Oase Filtral 6000 / 9000 - Fountain Tube And Head Set (43083 was 35717)
Roll over to zoom
Our Price:
£12.26
 Quantity:
