Plastic Reservoir and Metal Grid Kits

You Are Here : Water Features > Water Feature Reservoirs and Bases > Plastic Reservoir and Metal Grid Kits

Plastic Reservoir and Metal Grid Kits

Plastic Reservoir and Metal Grid Kits

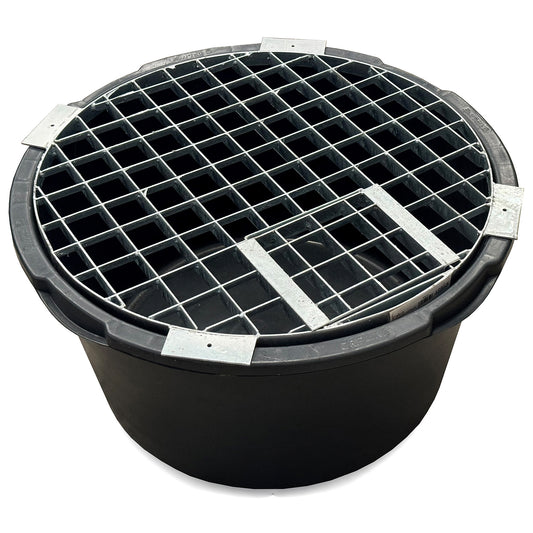

Medium Round Reservoir and Tabbed Grid Kit (60cm Dia)

Our Ref: ECW012
Manufacturers Ref: 6008-60tab
Our Price:
99.98
See full details
Add a Oase Auto Fill Kit
(See Optional Extras details below) (+ 39.98)

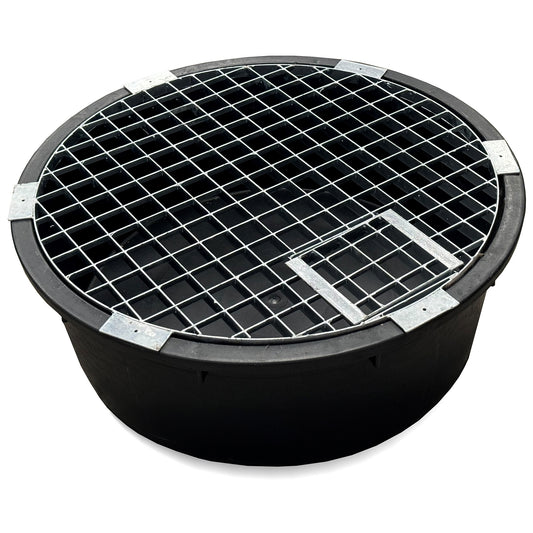

Large Round Reservoir and Tabbed Grid Kit (80cm Dia)

Our Ref: ECW013
Manufacturers Ref: 6008-79tab
Our Price:
199.99
See full details

Limited availability - 2 left in stock

Add a Oase Auto Fill Kit
(See Optional Extras details below) (+ 39.98)

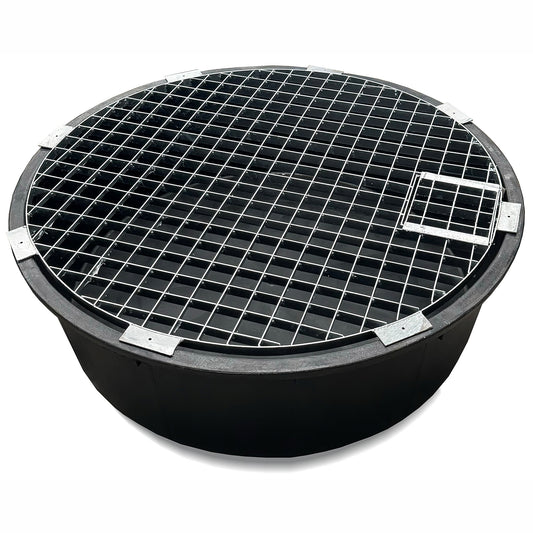

Extra Large Round Reservoir and Tabbed Grid Kit (112cm Dia)

Our Ref: ECW014
Manufacturers Ref: 6008-104tab
Our Price:
279.98
See full details
Add a Oase Auto Fill Kit
(See Optional Extras details below) (+ 39.98)
Unfortunately this product is Temporarily Out of Stock
Pleaseclick here to send us your detailsand we will contact you as soon as it becomes available.

The Plastic Reservoir and Metal Grid Kits which are supplied by the specialist stone water feature manufacture Eastern Connections are a perfect solution when adding a self-contained water feature or a stream collection sump within your garden. These strong plastic sumps are slightly tapered allowing the top rim to be supported by the surround ground. When installed in this way the galvanised steel grid can support a water feature of up to 300 Kg. This kits also feature an inset access cover which allow you to remove and clean you water pump without having to disturb your feature. The grid size is 5.5cm Square and perfect for large cobble and fast drainage. If you would like to use smaller aggregate material like gravel or granite chippings a non-rotting water permeable material like underlay or greenhouse netting will have to be placed over the grid to stop it falling through. Take care to ensure the material and smaller aggregate does not hinder the speed of drainage and cause flooding.

Please note that if it is not possible to support the reservoir lip when installed, the maximum weight limit would be 100 Kg

Plastic Reservoir and Metal Grid Kit Features
• 3 sizes available - Medium - 60cm, Large - 90cm, XtraLarge - 112 cm
• Extremely strong & weatherproof
• Includes a galvanised steel grid
• Support a water feature of up to 300 Kg
• Includes inset access cover
• 5.5cm square grid size

Use the table below to select the correctly sized item. If you have any difficulties deciding which size is right for you, contact us by email or phone and we will be very happy to assist you.

Product Inner Diameter Outer Diameter Height Grid Dia Grid Plus Support Tabs Dia Volume
Medium Round Reservoir and Tabbed Grid Kit 60cm 66cm 33.5cm 59cm 67cm
90 Litres
Large Round Reservoir and Tabbed Grid Kit 80cm 87cm 31cm 78cm 86cm
150 Litres
Extra Large Round Reservoir and Tabbed Grid Kit 105cm 113cm 34.5cm 103cm 111cm
290 Litres
Oase Auto Fill Kit

Oase Auto Fill Kit

The Oase Auto Fill Kit is a simple solution for automatically topping up a water feature sump or pump chamber. Evaporation or "splash out" can cause the water level within your pond or water feature to fall over time. With the installation of an Auto Fill Kit which is connected to a mains water supply, small amounts of water can be added at a time reducing the need for manual top-ups.

The Oase Auto Fill Kit uses a simple and reliable "toilet cistern" type float valve which can be fitted to the flat surface of a plastic reservoir (through a 22mm diameter hole) and then connected to a mains water feed pipe.

The Oase Auto Fill Kit Includes:
• A float valve with a range of 38 - 45 mm between the lowest and the highest level water points
• A "Snap" type hose connector

Oase Auto Fill Kit Technical Limits
• Maximum water pressure : 5 bar (72 PSI)
• Maximum flowrate 340 litres per hour (75 gallons per hour)
