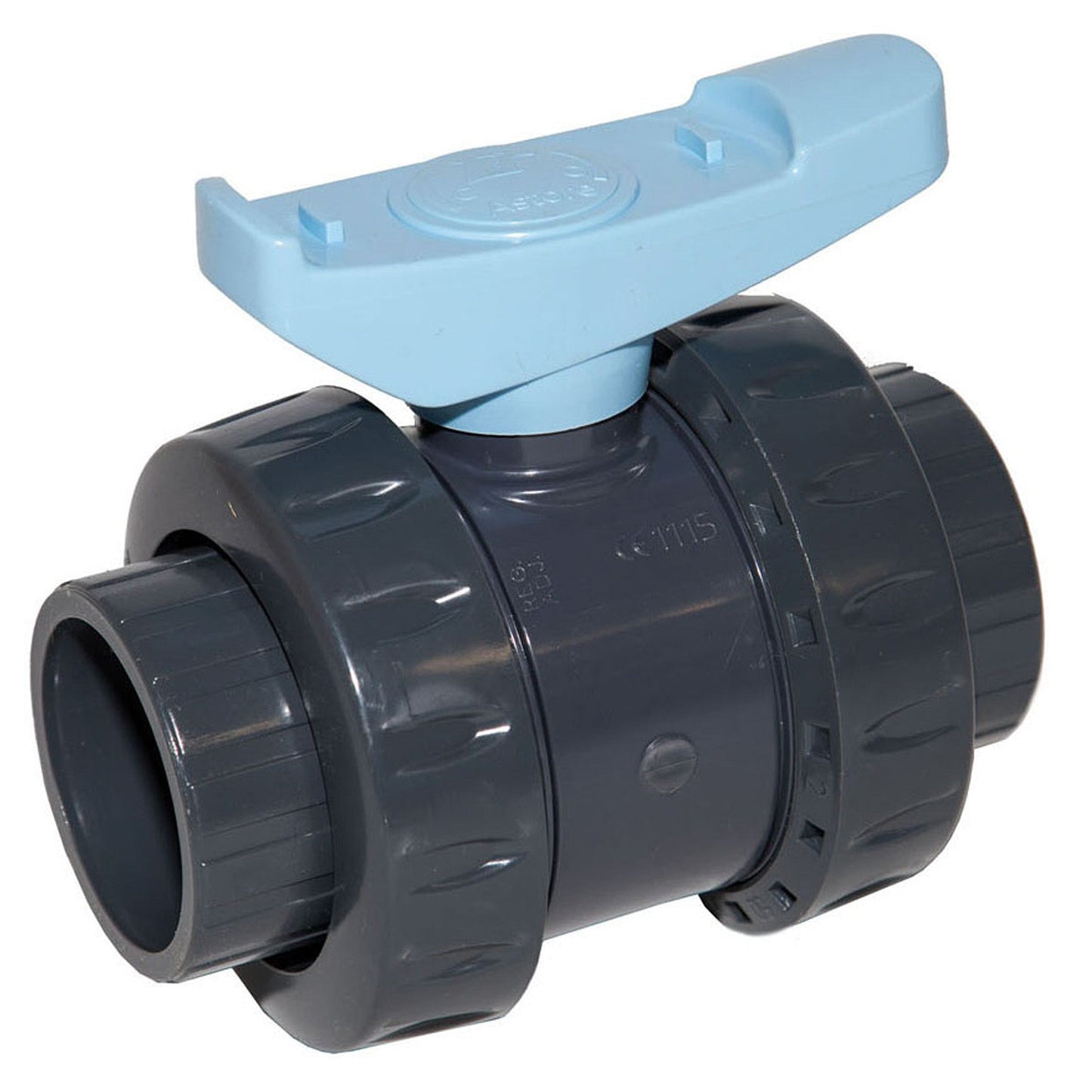

2 inch Solvent Weld Double Union Ball Valves
2 inch Solvent Weld Double Union Ball Valves
2 inch Solvent Weld Double Union Ball Valves
This 2" Solvent Weld Double Union Ball Valves is the perfect way to reduce or stop the flow of both pressurised and gravity fed water in solvent weld pipe systems. This industrial grade ball valve is made from PVC and feature a fully rounded internal ball with EPDM seals and PTFE ball seat. Using the special removable handle this valve can be full dis-assembled for cleaning and the adjusting to ensure smooth operation.
This 2" double union ball valve is suitable for 2" imperial solvent weld pressure pipework or can be used with 50mm metric solvent weld waste pipework if the optional reducing sleeves are used. One required for each side of the valve.
2" inch Double Union Ball Valves Technical Details
• Total Valve Length (to end of connectors) : 174mm
• Total Valve Height / Width : 117mm
• Maximum Height (including handle) : 164mm
• Pipe Size (as supplied) : 2" PVC Solvent weld
• Pipe Size (with optional sleeves) : 50mm PVC Solvent weld
• Pipe Recess Depth : 38mm
• Connection Type : Slip - Slip (Female / Female)
• Valve Material : PVC
• EPDM Seals and PTFE Ball Seat
• Removable handle
• Dismantlable for adjustment and cleaning
This 2" Solvent Weld Double Union Ball Valves is the perfect way to reduce or stop the flow of both pressurised and gravity fed water in solvent weld pipe systems. This industrial grade ball valve is made from PVC and feature a fully rounded internal ball with EPDM seals and PTFE ball seat. Using the special removable handle this valve can be full dis-assembled for cleaning and the adjusting to ensure smooth operation.
This 2" double union ball valve is suitable for 2" imperial solvent weld pressure pipework or can be used with 50mm metric solvent weld waste pipework if the optional reducing sleeves are used. One required for each side of the valve.
2" inch Double Union Ball Valves Technical Details
• Total Valve Length (to end of connectors) : 174mm
• Total Valve Height / Width : 117mm
• Maximum Height (including handle) : 164mm
• Pipe Size (as supplied) : 2" PVC Solvent weld
• Pipe Size (with optional sleeves) : 50mm PVC Solvent weld
• Pipe Recess Depth : 38mm
• Connection Type : Slip - Slip (Female / Female)
• Valve Material : PVC
• EPDM Seals and PTFE Ball Seat
• Removable handle
• Dismantlable for adjustment and cleaning
