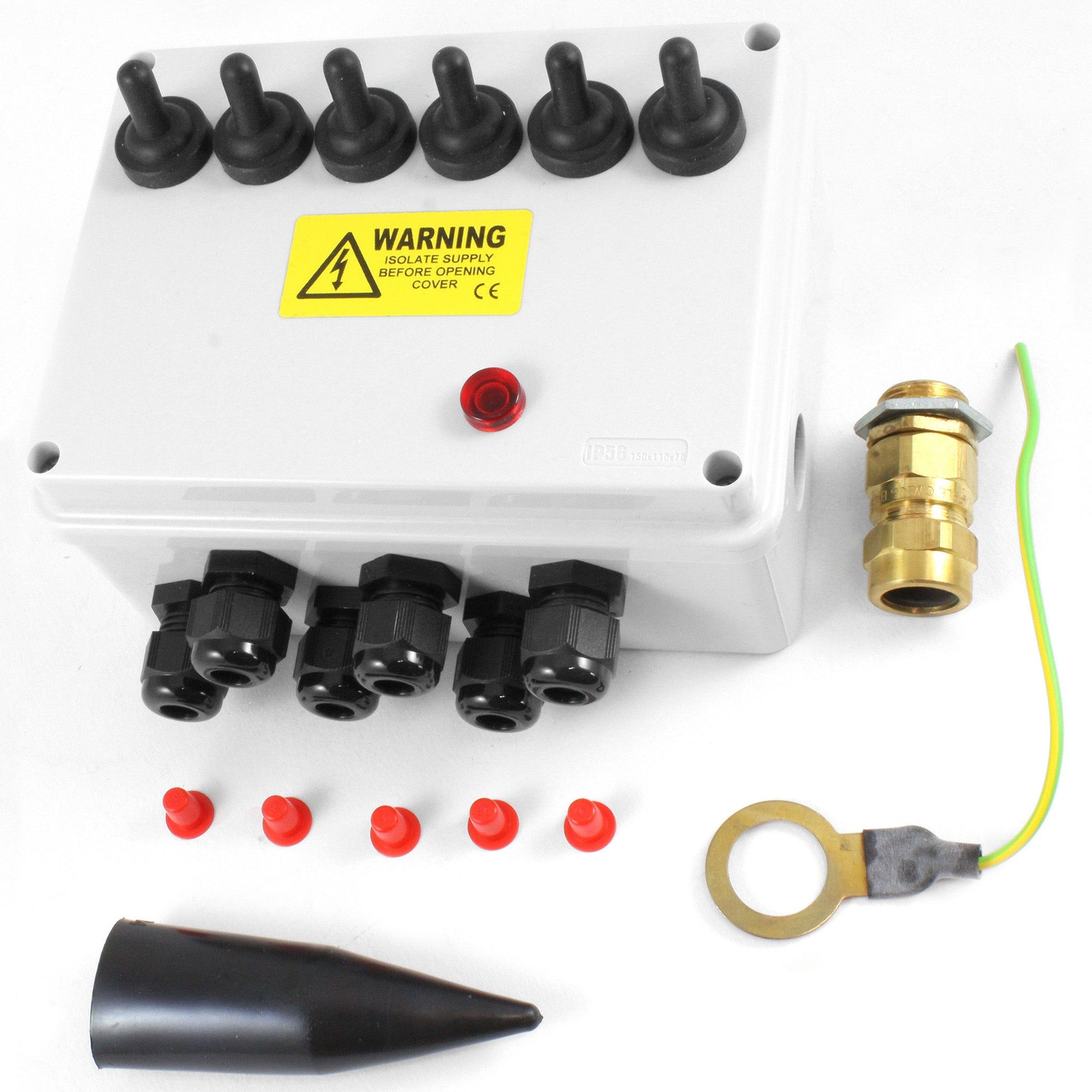

6 Switch Armoured Feed Electrical Box
6 Switch Armoured Feed Electrical Box
6 Switch Armoured Feed Electrical Box
These weatherproof switch boxes are highly resistant to impact, heat, chemical and atmospheric agents and intended for use outdoors, especially for water gardeners. Installation is easy, all you need to do is remove the 4 self tapping screws to release the lid and connect your incoming mains to the blue terminal blocks and the outgoing supply to the black terminal blocks. Controlling the attached devices is then as easy as using a standard light switch. The switches are covered and sealed with black flexible PVC boot covers. Fitted on the bottom of the enclosure are the weatherproof cable glands which will accommodate cables from 5 to 8mm in diameter.
These boxes are supplied with installation instructions, five sealing plugs for unused cable glands and a neoprene lid sealing gasket.
These boxes have a 5A fuse fitted and spare fuses are available. The maximum load on each switch is 360w and a total box load of 1200w.
This "Armoured" version of the standard switch box is supplied with an armoured cable gland which allows connection through the side of the connection box. These boxes are compatible with 3 core steel wire armoured cable, 1.5mm squared.
These weatherproof switch boxes are highly resistant to impact, heat, chemical and atmospheric agents and intended for use outdoors, especially for water gardeners. Installation is easy, all you need to do is remove the 4 self tapping screws to release the lid and connect your incoming mains to the blue terminal blocks and the outgoing supply to the black terminal blocks. Controlling the attached devices is then as easy as using a standard light switch. The switches are covered and sealed with black flexible PVC boot covers. Fitted on the bottom of the enclosure are the weatherproof cable glands which will accommodate cables from 5 to 8mm in diameter.
These boxes are supplied with installation instructions, five sealing plugs for unused cable glands and a neoprene lid sealing gasket.
These boxes have a 5A fuse fitted and spare fuses are available. The maximum load on each switch is 360w and a total box load of 1200w.
This "Armoured" version of the standard switch box is supplied with an armoured cable gland which allows connection through the side of the connection box. These boxes are compatible with 3 core steel wire armoured cable, 1.5mm squared.
Ask a question
If you need to ask a question about 6 Switch Armoured Feed Electrical Box you can do so here.
