The Oase LevelControl Automatic Pond Top-Up System is an electronically controlled automatic refill system which, once connected to a mains water supply, is designed to maintain a consistent water level in ponds, reservoirs, filter systems, and decorative water features. Using conductive level sensing technology and a mains-operated solenoid valve, the system automatically replaces water lost through evaporation, splash-out, or filter cleaning cycles.
The system continuously monitors the water level using the supplied conductive sensor. When the water level drops below the preset level, the controller automatically opens the included 1" solenoid valve to allow fresh mains water into the pond or reservoir. Once the correct water level has been restored, the valve automatically closes again.
Oase LevelControl Automatic Pond Top-Up System Features
- Automatic electronic pond water top-up system
- Maintains a stable water level automatically
- Suitable for ponds, reservoirs, fountains, and water features
- Ideal for gravity-fed and drum filter systems
- Designed to reduce false triggering caused by moving water or wave action
- Includes weatherproof controller and 1" BSP solenoid valve
- LED status display for valve operation monitoring
- Simple installation and low-maintenance operation
- Sensor mounting bracket included
- 2 year manufacturer’s guarantee
The LevelControl system is particularly useful on koi ponds and gravity-fed filtration systems where maintaining a consistent water height is important for stable skimmer performance, filter operation, and pump protection. It is also highly suited to ponds fitted with drum filters, automatically replacing water lost during cleaning cycles.
The system is designed to reduce false triggering caused by moving water or wave action, while the adjustable sensor allows the switching differential to be reduced to approximately 10mm for accurate level management.

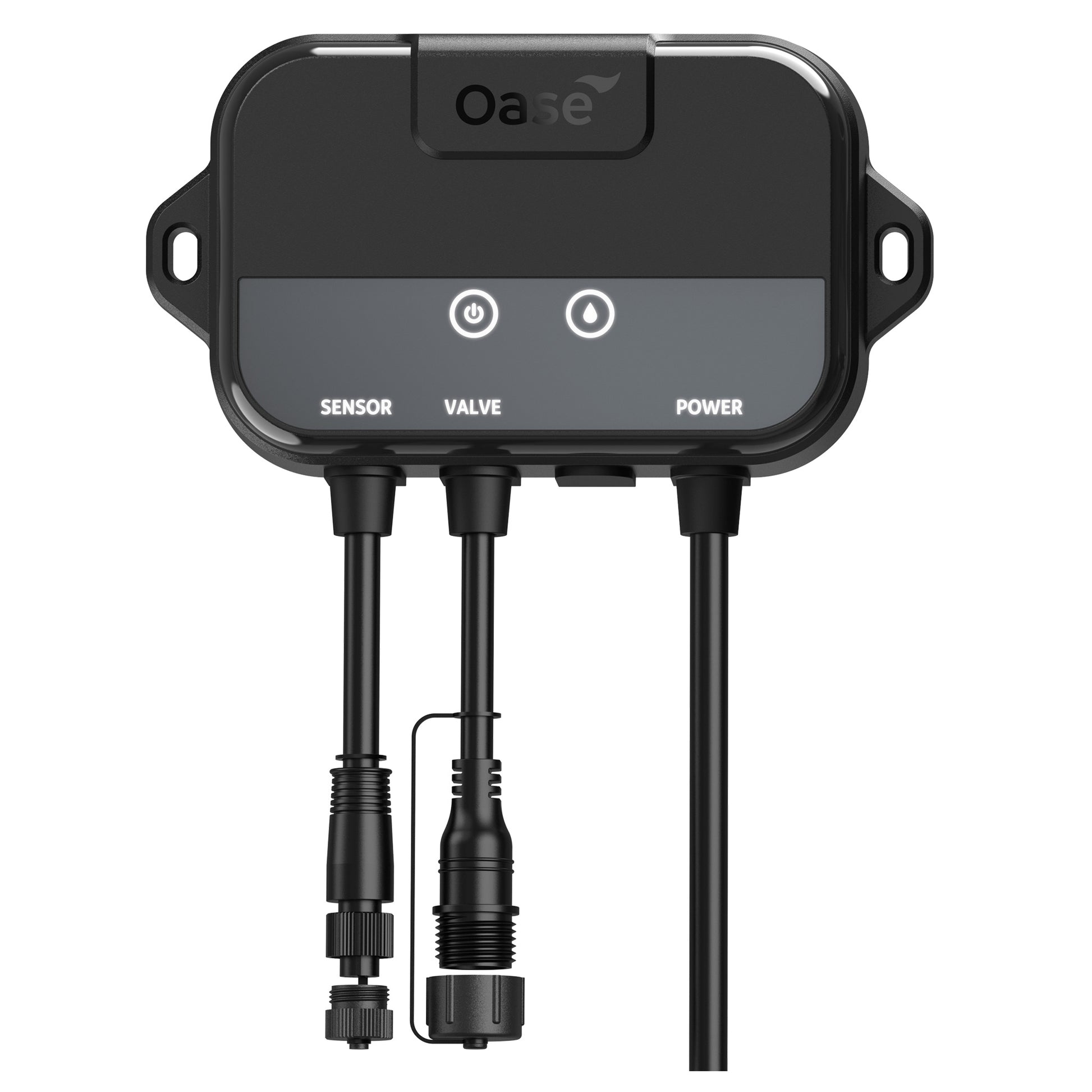

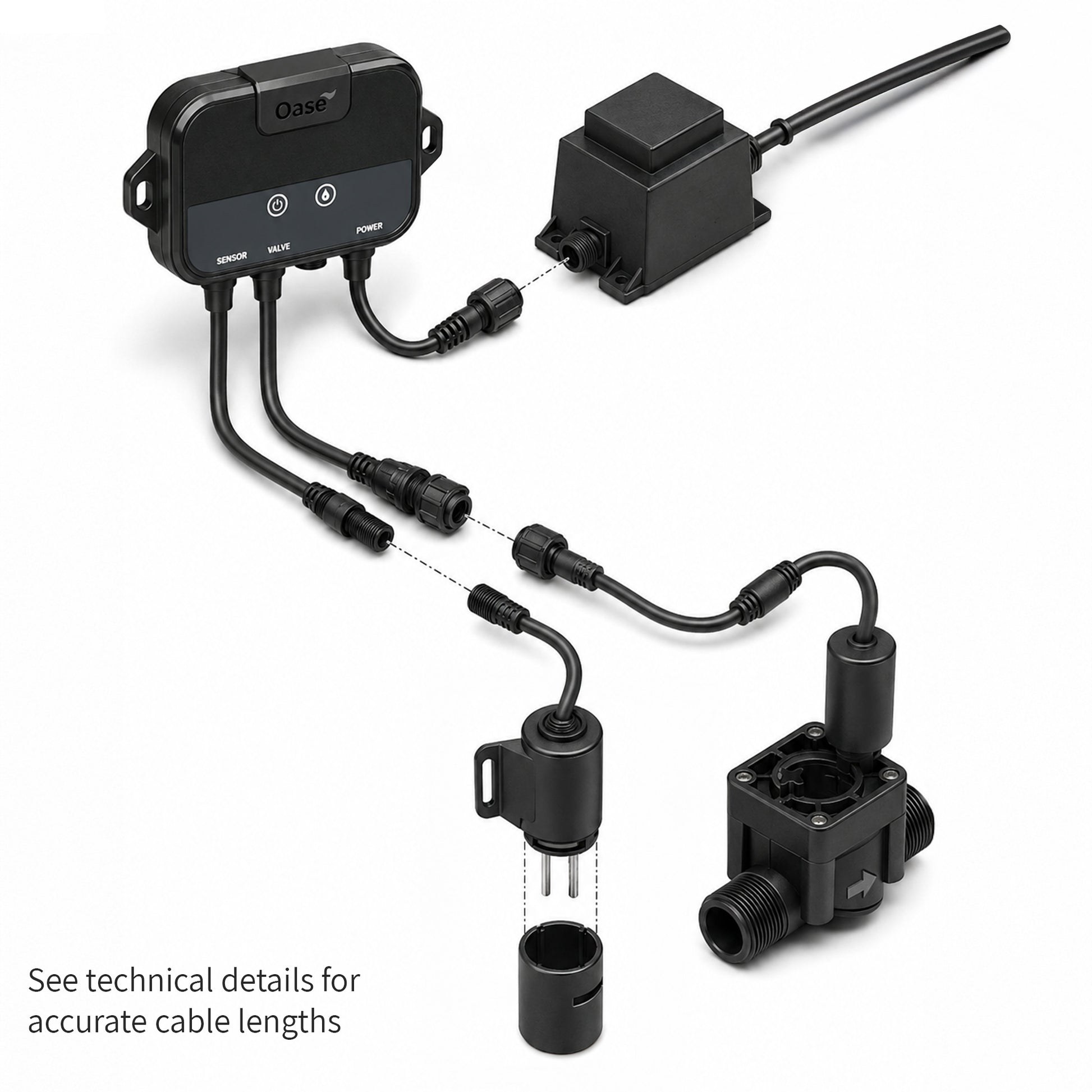

The supplied weatherproof control unit features LED indicators showing the operational status of the solenoid valve. Installation is straightforward, with separate connections provided for the sensor, valve, and mains transformer.
Technical Information
- Rated Voltage: 230V / 50Hz
- Sensor Voltage: 24V
- Connection Size: 1" BSP
- Maximum Operating Pressure: 10 bar
- Switching Differential: 10–20mm
- Power Consumption: Approx. 3W
- Power Cable Length: 2m
- Sensor Cable Length: 3m
- Valve Cable Length: 3m
- Controller Dimensions: 140 x 95 x 36mm
- Guarantee: 2 Years
What’s Included
- Weatherproof control unit
- Conductive water level sensor
- 1" BSP solenoid valve
- Sensor mounting bracket
- Power transformer and cables
Good to Know
- Suitable for both gravity-fed and pump-fed pond systems
- Helps compensate for evaporation and filter cleaning water loss
- Can help maintain consistent skimmer and filter performance
- Designed for permanent outdoor installation
The Oase LevelControl Automatic Pond Top-Up System is an electronically controlled automatic refill system which, once connected to a mains water supply, is designed to maintain a consistent water level in ponds, reservoirs, filter systems, and decorative water features. Using conductive level sensing technology and a mains-operated solenoid valve, the system automatically replaces water lost through evaporation, splash-out, or filter cleaning cycles.
The system continuously monitors the water level using the supplied conductive sensor. When the water level drops below the preset level, the controller automatically opens the included 1" solenoid valve to allow fresh mains water into the pond or reservoir. Once the correct water level has been restored, the valve automatically closes again.
Oase LevelControl Automatic Pond Top-Up System Features
- Automatic electronic pond water top-up system
- Maintains a stable water level automatically
- Suitable for ponds, reservoirs, fountains, and water features
- Ideal for gravity-fed and drum filter systems
- Designed to reduce false triggering caused by moving water or wave action
- Includes weatherproof controller and 1" BSP solenoid valve
- LED status display for valve operation monitoring
- Simple installation and low-maintenance operation
- Sensor mounting bracket included
- 2 year manufacturer’s guarantee
The LevelControl system is particularly useful on koi ponds and gravity-fed filtration systems where maintaining a consistent water height is important for stable skimmer performance, filter operation, and pump protection. It is also highly suited to ponds fitted with drum filters, automatically replacing water lost during cleaning cycles.
The system is designed to reduce false triggering caused by moving water or wave action, while the adjustable sensor allows the switching differential to be reduced to approximately 10mm for accurate level management.
The supplied weatherproof control unit features LED indicators showing the operational status of the solenoid valve. Installation is straightforward, with separate connections provided for the sensor, valve, and mains transformer.
Technical Information
- Rated Voltage: 230V / 50Hz
- Sensor Voltage: 24V
- Connection Size: 1" BSP
- Maximum Operating Pressure: 10 bar
- Switching Differential: 10–20mm
- Power Consumption: Approx. 3W
- Power Cable Length: 2m
- Sensor Cable Length: 3m
- Valve Cable Length: 3m
- Controller Dimensions: 140 x 95 x 36mm
- Guarantee: 2 Years
What’s Included
- Weatherproof control unit
- Conductive water level sensor
- 1" BSP solenoid valve
- Sensor mounting bracket
- Power transformer and cables
Good to Know
- Suitable for both gravity-fed and pump-fed pond systems
- Helps compensate for evaporation and filter cleaning water loss
- Can help maintain consistent skimmer and filter performance
- Designed for permanent outdoor installation
