Oase LevelControl Automatic Water Feature Top Up System
Oase LevelControl Automatic Water Feature Top Up System
Oase LevelControl Automatic Water Feature Top Up System
The Oase LevelControl Automatic Water Feature Top-Up System is an electronically controlled automatic refill system which, once connected to a mains water supply, is designed to maintain a consistent water level within pondless waterfall reservoirs, disappearing water feature sumps, and water feature grid systems. Using conductive level sensing technology and a mains-operated solenoid valve, the system automatically replaces water lost through evaporation, splash-out, and natural water movement.
The system continuously monitors the water level inside the hidden reservoir using the supplied conductive sensor. When the water level drops below the preset level, the controller automatically opens the included 1" solenoid valve to allow fresh mains water into the reservoir. Once the correct water level has been restored, the valve automatically closes again.
Oase LevelControl Automatic Water Feature Top-Up System Features
- Automatic electronic water top-up system
- Ideal for pondless waterfall reservoirs and water feature grids
- Helps maintain a stable reservoir water level automatically
- Suitable for disappearing fountains and self-contained water features
- Designed to reduce false triggering caused by moving water or wave action
- Includes weatherproof controller and 1" BSP solenoid valve
- LED status display for valve operation monitoring
- Simple installation and low-maintenance operation
- Sensor mounting bracket included
- 2 year manufacturer’s guarantee
The LevelControl system is particularly useful on reservoir-based water features where water loss through evaporation and splash-out can gradually reduce the operating water level. By automatically topping up the reservoir when required, the system helps maintain reliable pump operation while reducing manual maintenance.
The system is designed to reduce false triggering caused by moving water or wave action, while the adjustable sensor allows the switching differential to be reduced to approximately 10mm for accurate level management.

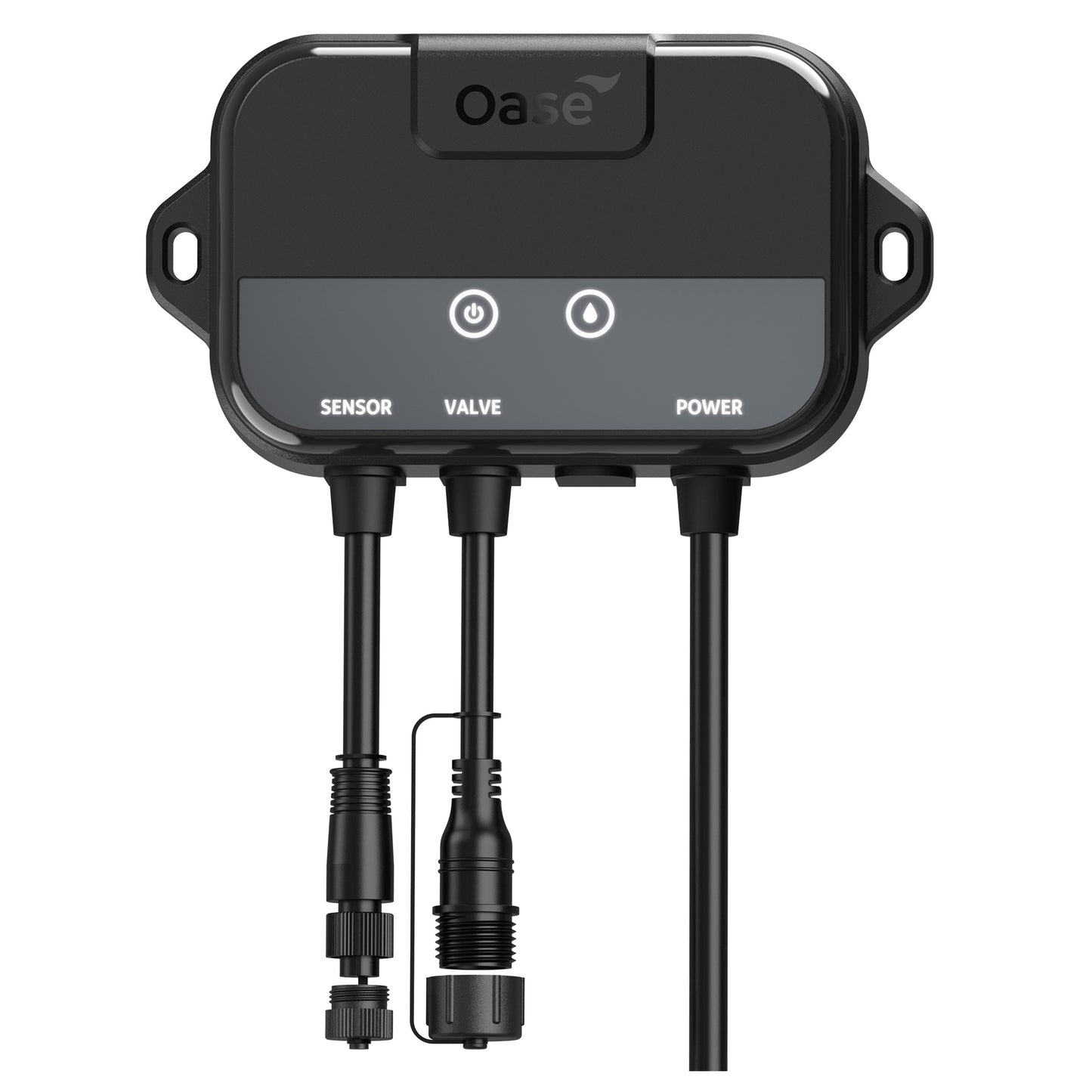

The supplied weatherproof control unit features LED indicators showing the operational status of the solenoid valve. Installation is straightforward, with separate connections provided for the sensor, valve, and mains transformer.
Technical Information
- Product Code: OAA121
- Manufacturer Code: 98040
- Rated Voltage: 230V / 50Hz
- Sensor Voltage: 24V
- Connection Size: 1" BSP
- Maximum Operating Pressure: 10 bar
- Switching Differential: 10–20mm
- Power Consumption: Approx. 3W
- Power Cable Length: 2m
- Sensor Cable Length: 3m
- Valve Cable Length: 3m
- Controller Dimensions: 140 x 95 x 36mm
- Guarantee: 2 Years
What’s Included
- Weatherproof control unit
- Conductive water level sensor
- 1" BSP solenoid valve
- Sensor mounting bracket
- Power transformer and cables
Good to Know
- Helps compensate for evaporation and splash-out water loss
- Can help reduce the risk of pumps running dry
- Suitable for permanent outdoor installation
- Ideal for hidden reservoir and pondless water feature systems
The Oase LevelControl Automatic Water Feature Top-Up System is an electronically controlled automatic refill system which, once connected to a mains water supply, is designed to maintain a consistent water level within pondless waterfall reservoirs, disappearing water feature sumps, and water feature grid systems. Using conductive level sensing technology and a mains-operated solenoid valve, the system automatically replaces water lost through evaporation, splash-out, and natural water movement.
The system continuously monitors the water level inside the hidden reservoir using the supplied conductive sensor. When the water level drops below the preset level, the controller automatically opens the included 1" solenoid valve to allow fresh mains water into the reservoir. Once the correct water level has been restored, the valve automatically closes again.
Oase LevelControl Automatic Water Feature Top-Up System Features
- Automatic electronic water top-up system
- Ideal for pondless waterfall reservoirs and water feature grids
- Helps maintain a stable reservoir water level automatically
- Suitable for disappearing fountains and self-contained water features
- Designed to reduce false triggering caused by moving water or wave action
- Includes weatherproof controller and 1" BSP solenoid valve
- LED status display for valve operation monitoring
- Simple installation and low-maintenance operation
- Sensor mounting bracket included
- 2 year manufacturer’s guarantee
The LevelControl system is particularly useful on reservoir-based water features where water loss through evaporation and splash-out can gradually reduce the operating water level. By automatically topping up the reservoir when required, the system helps maintain reliable pump operation while reducing manual maintenance.
The system is designed to reduce false triggering caused by moving water or wave action, while the adjustable sensor allows the switching differential to be reduced to approximately 10mm for accurate level management.
The supplied weatherproof control unit features LED indicators showing the operational status of the solenoid valve. Installation is straightforward, with separate connections provided for the sensor, valve, and mains transformer.
Technical Information
- Product Code: OAA121
- Manufacturer Code: 98040
- Rated Voltage: 230V / 50Hz
- Sensor Voltage: 24V
- Connection Size: 1" BSP
- Maximum Operating Pressure: 10 bar
- Switching Differential: 10–20mm
- Power Consumption: Approx. 3W
- Power Cable Length: 2m
- Sensor Cable Length: 3m
- Valve Cable Length: 3m
- Controller Dimensions: 140 x 95 x 36mm
- Guarantee: 2 Years
What’s Included
- Weatherproof control unit
- Conductive water level sensor
- 1" BSP solenoid valve
- Sensor mounting bracket
- Power transformer and cables
Good to Know
- Helps compensate for evaporation and splash-out water loss
- Can help reduce the risk of pumps running dry
- Suitable for permanent outdoor installation
- Ideal for hidden reservoir and pondless water feature systems
