Wiska - EV101 Pre Filled IP68 Gel Electrical Cable Connector (6-8mm)
Wiska - EV101 Pre Filled IP68 Gel Electrical Cable Connector (6-8mm)
Wiska - EV101 Pre Filled IP68 Gel Electrical Cable Connector (6-8mm)

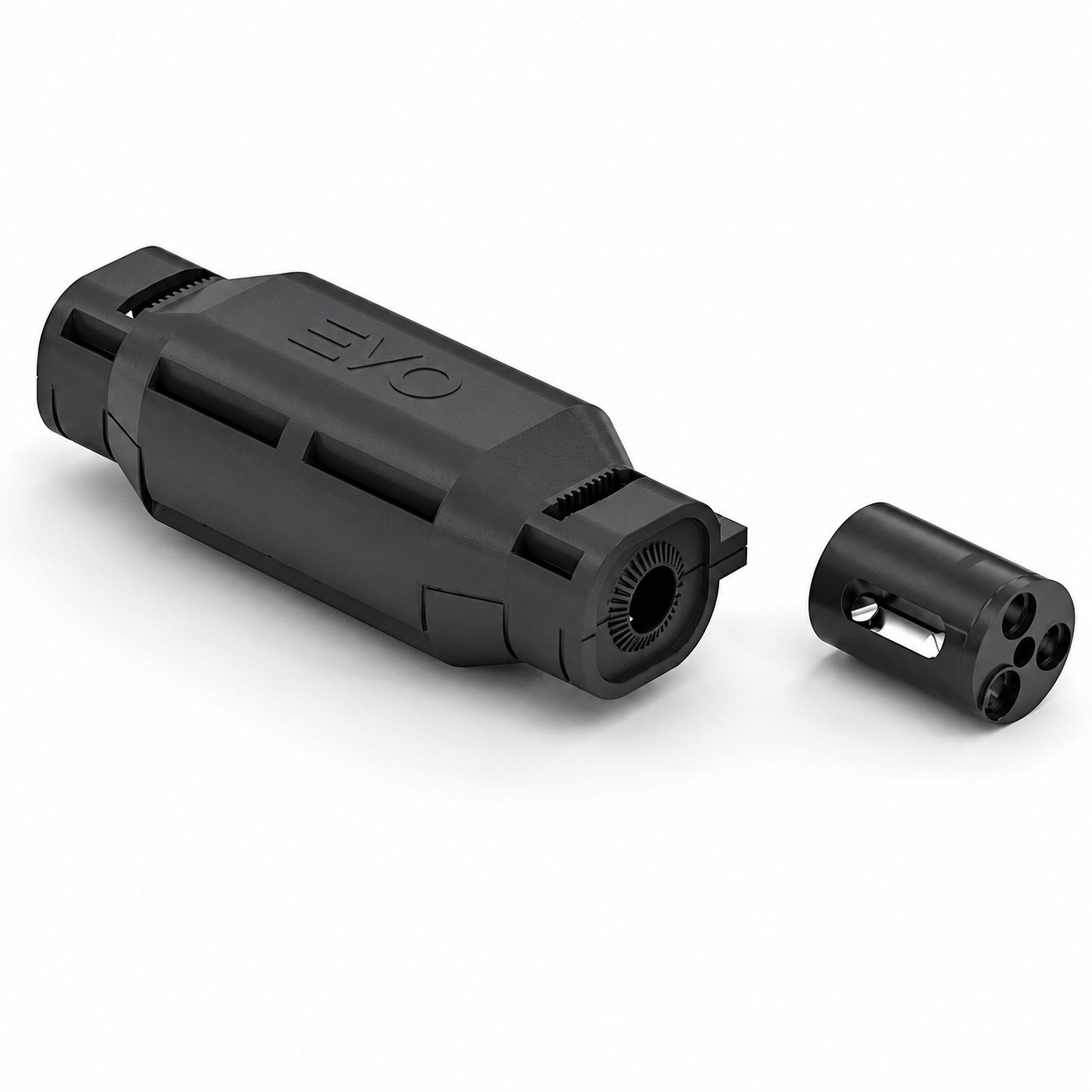

The Wiska EV101 Pre Filled IP68 Gel Connector is designed for joining electrical cables with an outer diameter of 6-8mm where a waterproof external connection is required. The connector is supplied pre-filled with sealing gel, which moulds around the cable and terminal connection when the housing is closed.
Wiska EV101 Pre Filled IP68 Gel Connector Features
- Suitable for cables with an outer diameter of 6-8mm
- Pre-filled gel housing for quick waterproof cable joining
- IP68 rated when correctly installed
- Rated for use down to a maximum depth of 1m
- Supplied with a screw terminal block
- Gel is non-toxic, ready to use, and has no expiry date

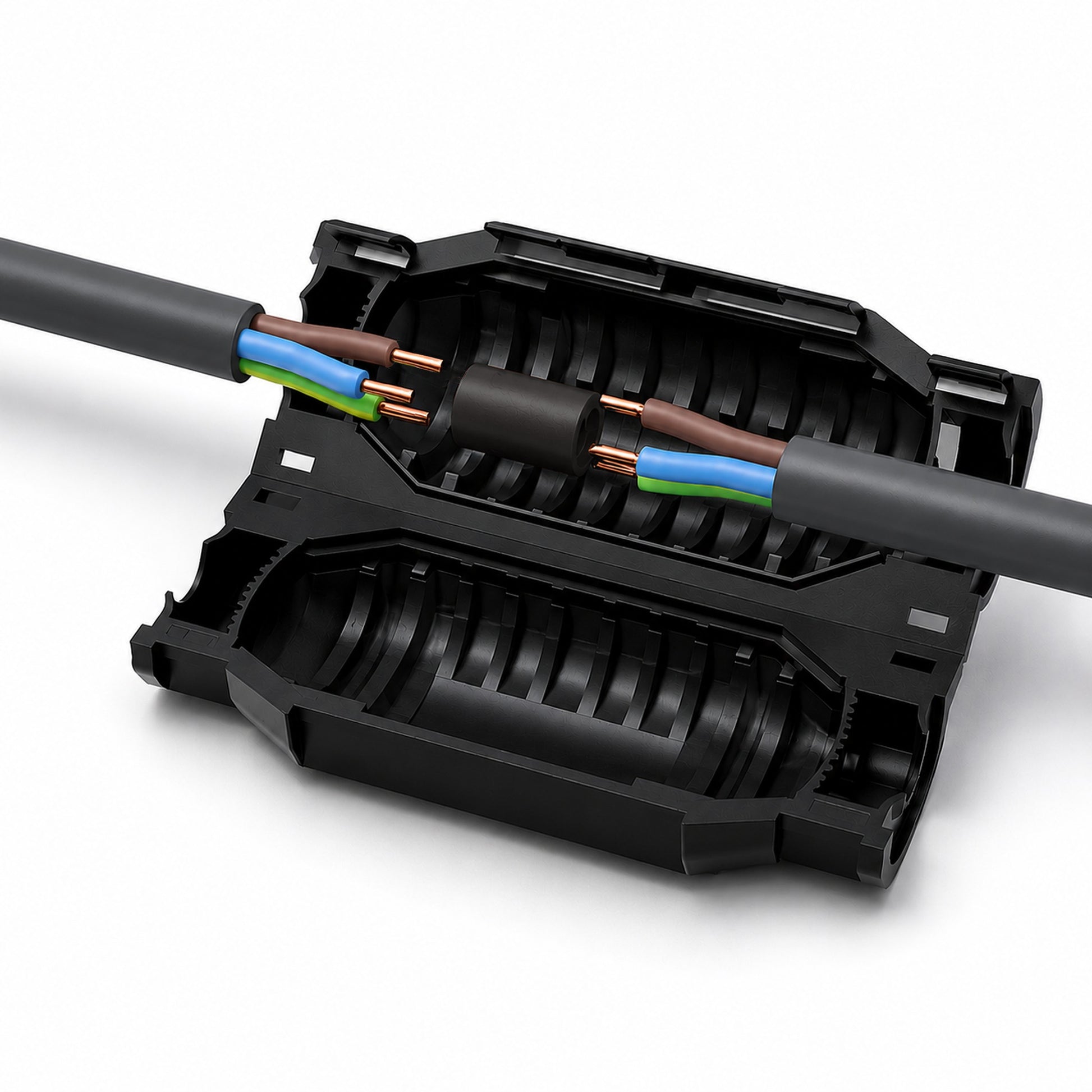

This gel connector provides a simple way to create a sealed waterproof cable joint for outdoor and external electrical installations. Once the cables have been wired into the supplied terminal block, the connection is placed into the centre of the gel-filled housing and the lid is closed.
As the connector closes, the gel is compressed around the cable and terminal block, helping to form a watertight seal around the joint. The supplied screw terminal block can accept up to 3 cables, making the connector suitable for practical cable joining where a compact waterproof enclosure is required.
Technical Specifications
- IP rating: IP68 when correctly installed (waterproof)
- Maximum rated depth: 1m
- Cable diameter: 6-8mm
- Terminal size: 0.75mm² to 2.5mm²
- Temperature range: -20°C to 90°C
- Dimensions: 72mm long x 28mm diameter
What’s Included
- Pre-filled gel connector housing
- Screw terminal block
Good to Know
- The connector must be installed correctly to achieve the stated IP68 rating.
- The gel is ready for immediate use and does not require mixing or preparation.
The Wiska EV101 Pre Filled IP68 Gel Connector is designed for joining electrical cables with an outer diameter of 6-8mm where a waterproof external connection is required. The connector is supplied pre-filled with sealing gel, which moulds around the cable and terminal connection when the housing is closed.
Wiska EV101 Pre Filled IP68 Gel Connector Features
- Suitable for cables with an outer diameter of 6-8mm
- Pre-filled gel housing for quick waterproof cable joining
- IP68 rated when correctly installed
- Rated for use down to a maximum depth of 1m
- Supplied with a screw terminal block
- Gel is non-toxic, ready to use, and has no expiry date
This gel connector provides a simple way to create a sealed waterproof cable joint for outdoor and external electrical installations. Once the cables have been wired into the supplied terminal block, the connection is placed into the centre of the gel-filled housing and the lid is closed.
As the connector closes, the gel is compressed around the cable and terminal block, helping to form a watertight seal around the joint. The supplied screw terminal block can accept up to 3 cables, making the connector suitable for practical cable joining where a compact waterproof enclosure is required.
Technical Specifications
- IP rating: IP68 when correctly installed (waterproof)
- Maximum rated depth: 1m
- Cable diameter: 6-8mm
- Terminal size: 0.75mm² to 2.5mm²
- Temperature range: -20°C to 90°C
- Dimensions: 72mm long x 28mm diameter
What’s Included
- Pre-filled gel connector housing
- Screw terminal block
Good to Know
- The connector must be installed correctly to achieve the stated IP68 rating.
- The gel is ready for immediate use and does not require mixing or preparation.
