Evolution Aqua AirTech 130 / 150 Diaphragm Kit 15mm
Evolution Aqua AirTech 130 / 150 Diaphragm Kit 15mm
Evolution Aqua AirTech 130 / 150 Diaphragm Kit 15mm

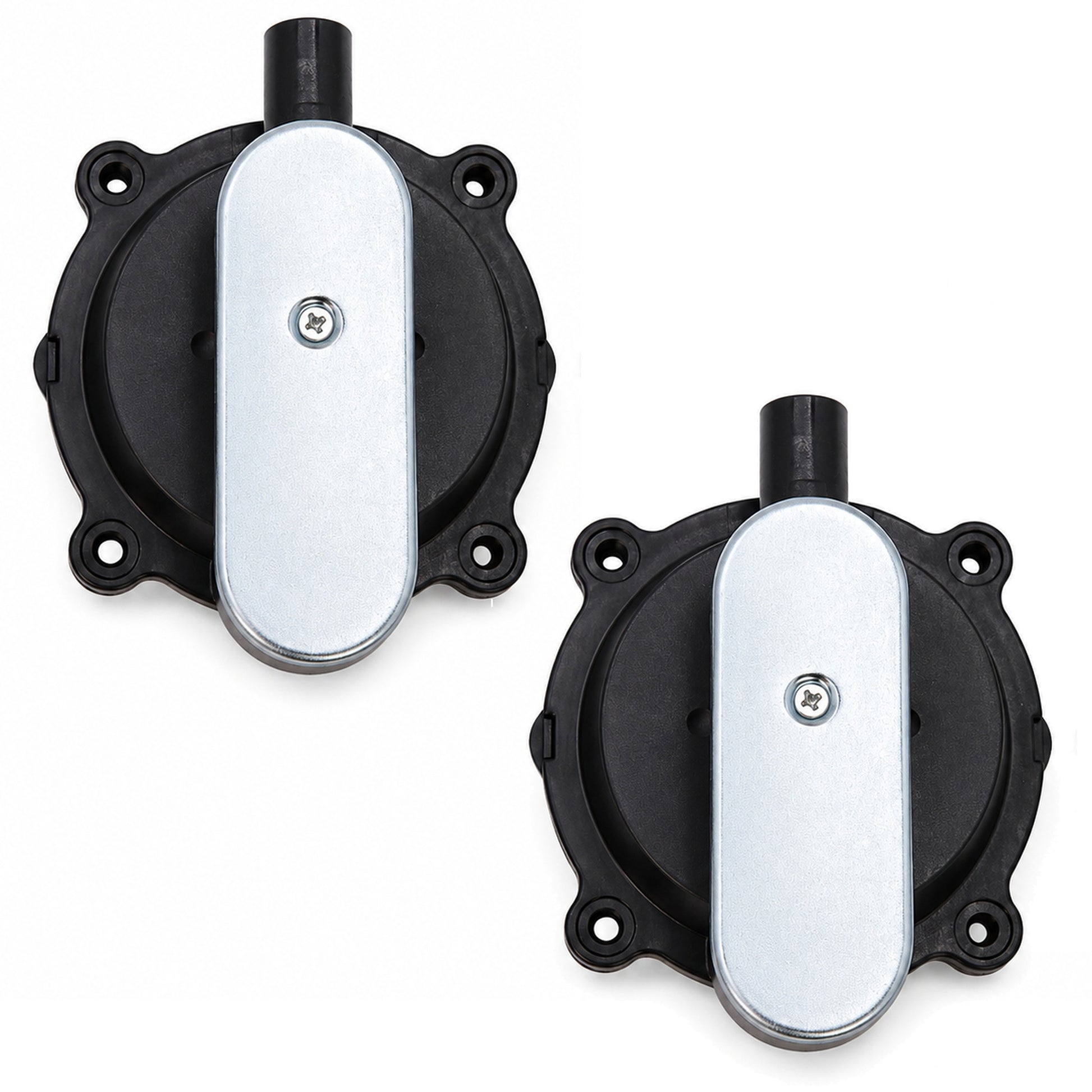

The Evolution Aqua AirTech 130 / 150 Diaphragm Kit is a replacement service kit for Evolution Aqua AirTech 130 and AirTech 150 air pumps. It is used to replace worn diaphragms inside the pump, helping restore air output when the original diaphragms have reached the end of their working life.
Evolution Aqua AirTech 130 / 150 Diaphragm Kit 15mm Features
- Replacement diaphragm kit for Evolution Aqua AirTech 130 and AirTech 150 air pumps
- 15mm diaphragm kit
- Includes two diaphragms and two diaphragm frames
- Supplied with two nuts and two washers
- Used to service worn diaphragm assemblies
- Original frame securing screws must be reused
The diaphragms inside an air pump are constantly moving while the pump is running. Over time they can wear, which may lead to reduced air output, weaker bubbling from air stones or diffusers, or a change in the sound of the pump during operation.

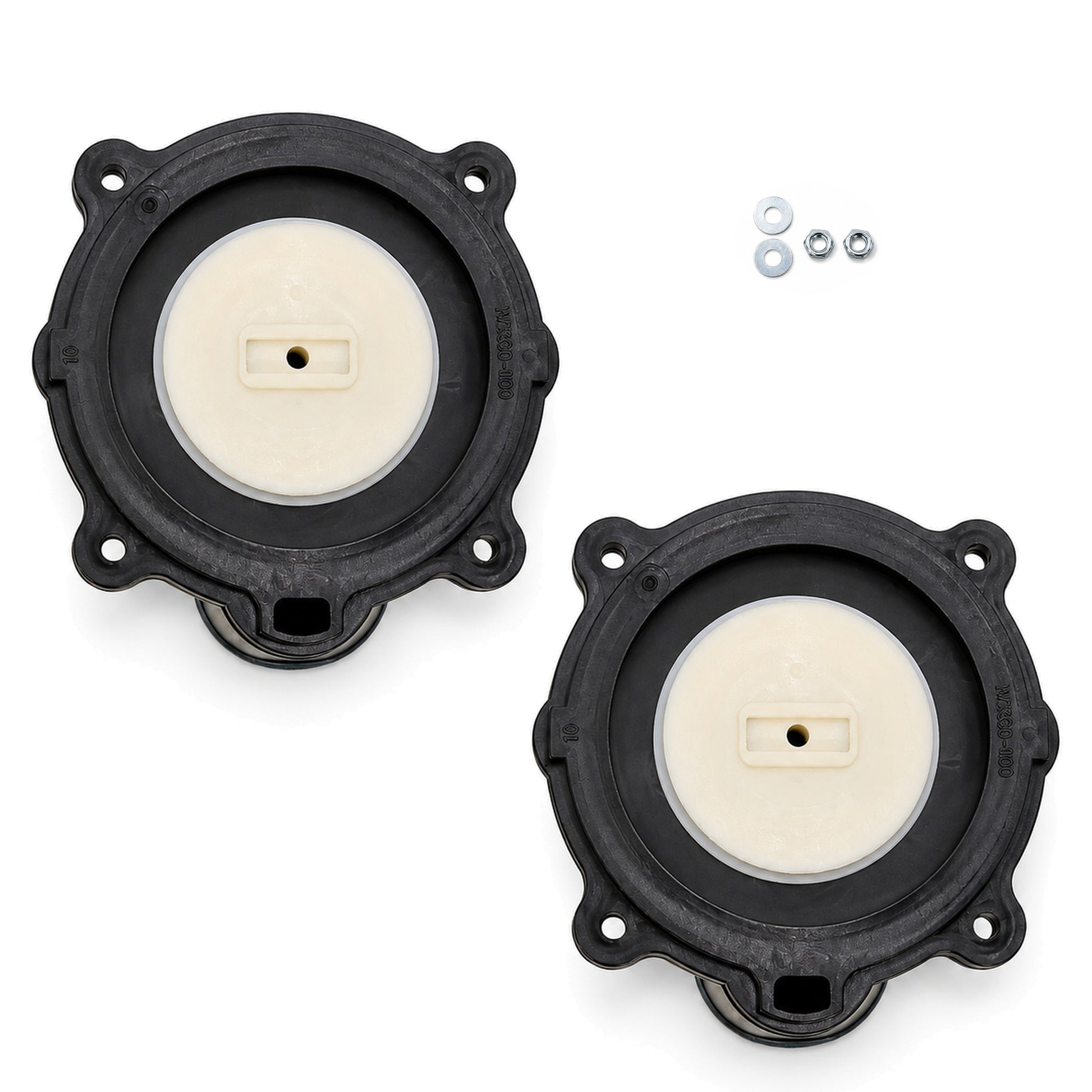

This kit includes the paired diaphragm parts needed to service the AirTech 130 or AirTech 150. The supplied nuts and washers secure the diaphragms to the activating arms, while the diaphragm frames hold the assemblies in position inside the pump.
The screws that secure the diaphragm frames are not included. These screws are not available separately as a spare part, so the original screws from the pump should be kept and reused when fitting the new kit.
Technical Specifications
- Suitable for: Evolution Aqua AirTech 130 and Evolution Aqua AirTech 150
- Diaphragm size: 15mm
- Included diaphragms: 2
- Included diaphragm frames: 2
- Included nuts: 2
- Included washers: 2
- Frame securing screws: Not included
The Evolution Aqua AirTech 130 / 150 Diaphragm Kit is a replacement service kit for Evolution Aqua AirTech 130 and AirTech 150 air pumps. It is used to replace worn diaphragms inside the pump, helping restore air output when the original diaphragms have reached the end of their working life.
Evolution Aqua AirTech 130 / 150 Diaphragm Kit 15mm Features
- Replacement diaphragm kit for Evolution Aqua AirTech 130 and AirTech 150 air pumps
- 15mm diaphragm kit
- Includes two diaphragms and two diaphragm frames
- Supplied with two nuts and two washers
- Used to service worn diaphragm assemblies
- Original frame securing screws must be reused
The diaphragms inside an air pump are constantly moving while the pump is running. Over time they can wear, which may lead to reduced air output, weaker bubbling from air stones or diffusers, or a change in the sound of the pump during operation.
This kit includes the paired diaphragm parts needed to service the AirTech 130 or AirTech 150. The supplied nuts and washers secure the diaphragms to the activating arms, while the diaphragm frames hold the assemblies in position inside the pump.
The screws that secure the diaphragm frames are not included. These screws are not available separately as a spare part, so the original screws from the pump should be kept and reused when fitting the new kit.
Technical Specifications
- Suitable for: Evolution Aqua AirTech 130 and Evolution Aqua AirTech 150
- Diaphragm size: 15mm
- Included diaphragms: 2
- Included diaphragm frames: 2
- Included nuts: 2
- Included washers: 2
- Frame securing screws: Not included
