Evolution Aqua AirTech 95 Diaphragm Kit - 15mm
Evolution Aqua AirTech 95 Diaphragm Kit - 15mm
Evolution Aqua AirTech 95 Diaphragm Kit - 15mm
The Evolution Aqua AirTech 95 Diaphragm Kit is a replacement diaphragm set for the AirTech 95 air pump. It is intended for servicing the pump when the original diaphragms have worn and the air output is no longer performing as it should.
Evolution Aqua AirTech 95 Diaphragm Kit 15mm Features
- Replacement diaphragm kit for the Evolution Aqua AirTech 95
- 15mm diaphragm kit
- Includes two replacement diaphragms
- Includes two diaphragm frames
- Supplied with nuts and washers for securing the diaphragms
- Original frame fixing screws are not supplied
A worn diaphragm can reduce the amount of air the pump is able to deliver, even if the motor is still running. Replacing the diaphragms is a common service task when an air pump begins to lose output or the bubbles from the pond diffuser become weaker.

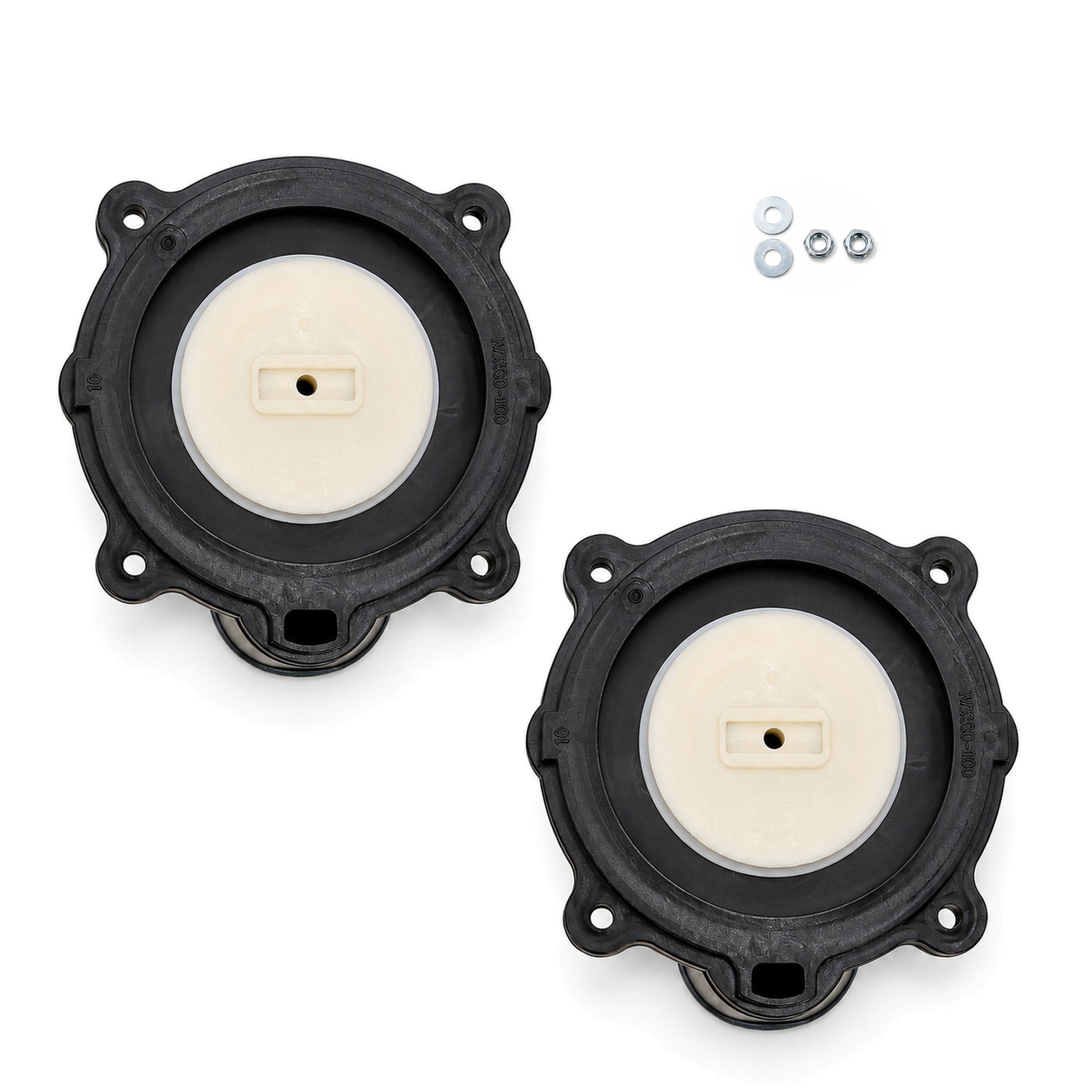

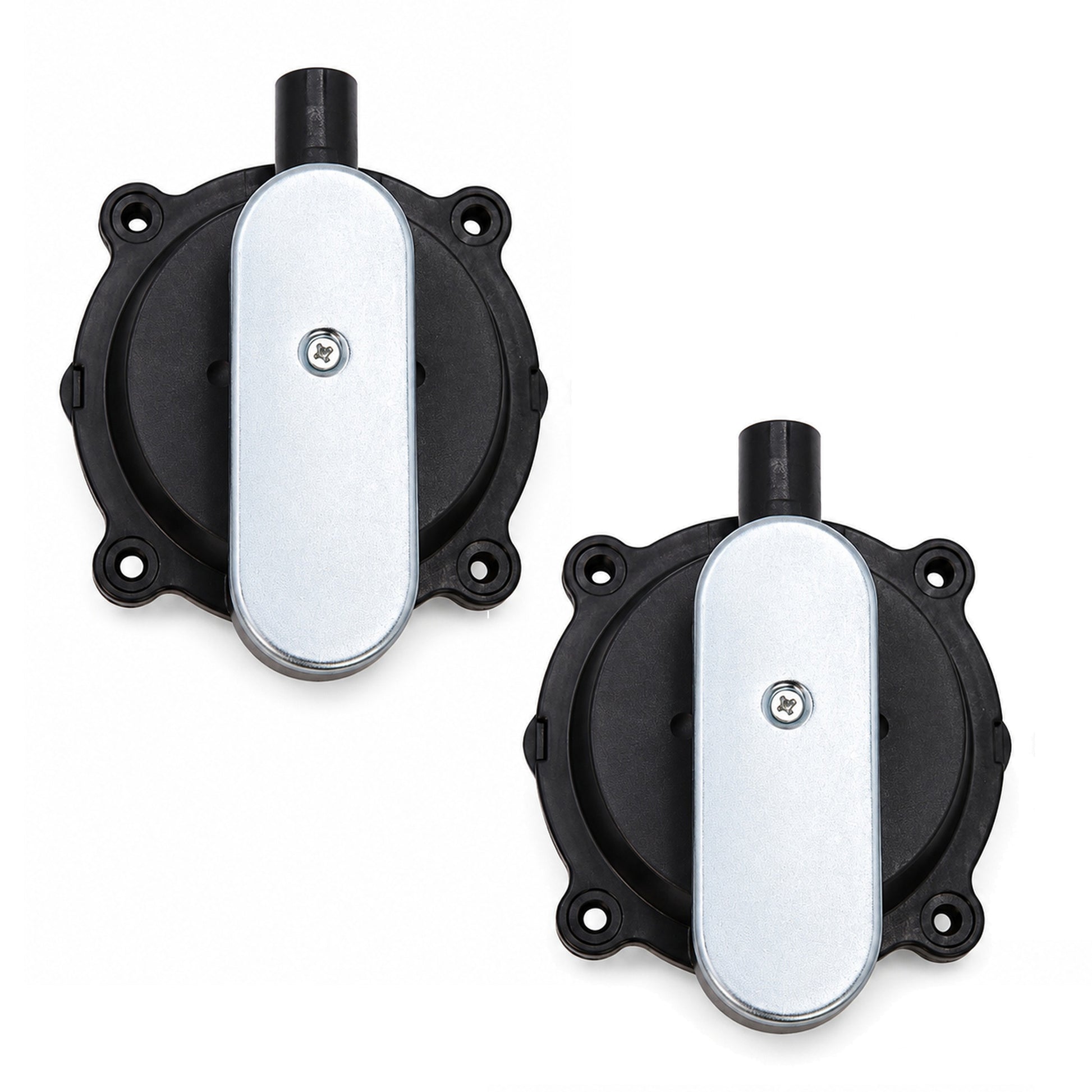

This kit contains the paired diaphragm parts used inside the Evolution Aqua AirTech 95. The diaphragms fit to the activating arms using the supplied nuts and washers, while the diaphragm frames hold the parts in position.
The screws that secure the frames are not included in the kit. These are not available as a spare part, so the existing screws need to be reused when the new diaphragm kit is installed.
Technical Specifications
- Suitable for: Evolution Aqua AirTech 95
- Diaphragm size: 15mm
- Included diaphragms: 2
- Included diaphragm frames: 2
- Included nuts: 2
- Included washers: 2
- Frame securing screws: Not included
The Evolution Aqua AirTech 95 Diaphragm Kit is a replacement diaphragm set for the AirTech 95 air pump. It is intended for servicing the pump when the original diaphragms have worn and the air output is no longer performing as it should.
Evolution Aqua AirTech 95 Diaphragm Kit 15mm Features
- Replacement diaphragm kit for the Evolution Aqua AirTech 95
- 15mm diaphragm kit
- Includes two replacement diaphragms
- Includes two diaphragm frames
- Supplied with nuts and washers for securing the diaphragms
- Original frame fixing screws are not supplied
A worn diaphragm can reduce the amount of air the pump is able to deliver, even if the motor is still running. Replacing the diaphragms is a common service task when an air pump begins to lose output or the bubbles from the pond diffuser become weaker.
This kit contains the paired diaphragm parts used inside the Evolution Aqua AirTech 95. The diaphragms fit to the activating arms using the supplied nuts and washers, while the diaphragm frames hold the parts in position.
The screws that secure the frames are not included in the kit. These are not available as a spare part, so the existing screws need to be reused when the new diaphragm kit is installed.
Technical Specifications
- Suitable for: Evolution Aqua AirTech 95
- Diaphragm size: 15mm
- Included diaphragms: 2
- Included diaphragm frames: 2
- Included nuts: 2
- Included washers: 2
- Frame securing screws: Not included
