Pontec PondoMax Eco 5000 Control Filter and Watercourse Pump
Pontec PondoMax Eco 5000 Control Filter and Watercourse Pump
Pontec PondoMax Eco 5000 Control Filter and Watercourse Pump
The Pontec PondoMax Eco 5000 Control is a compact filter and watercourse pump with an integrated controller for adjusting flow output in 7 stages. It is designed to move pond water and dirt particles to a filter efficiently, while also giving you visible control over power usage and pump performance.

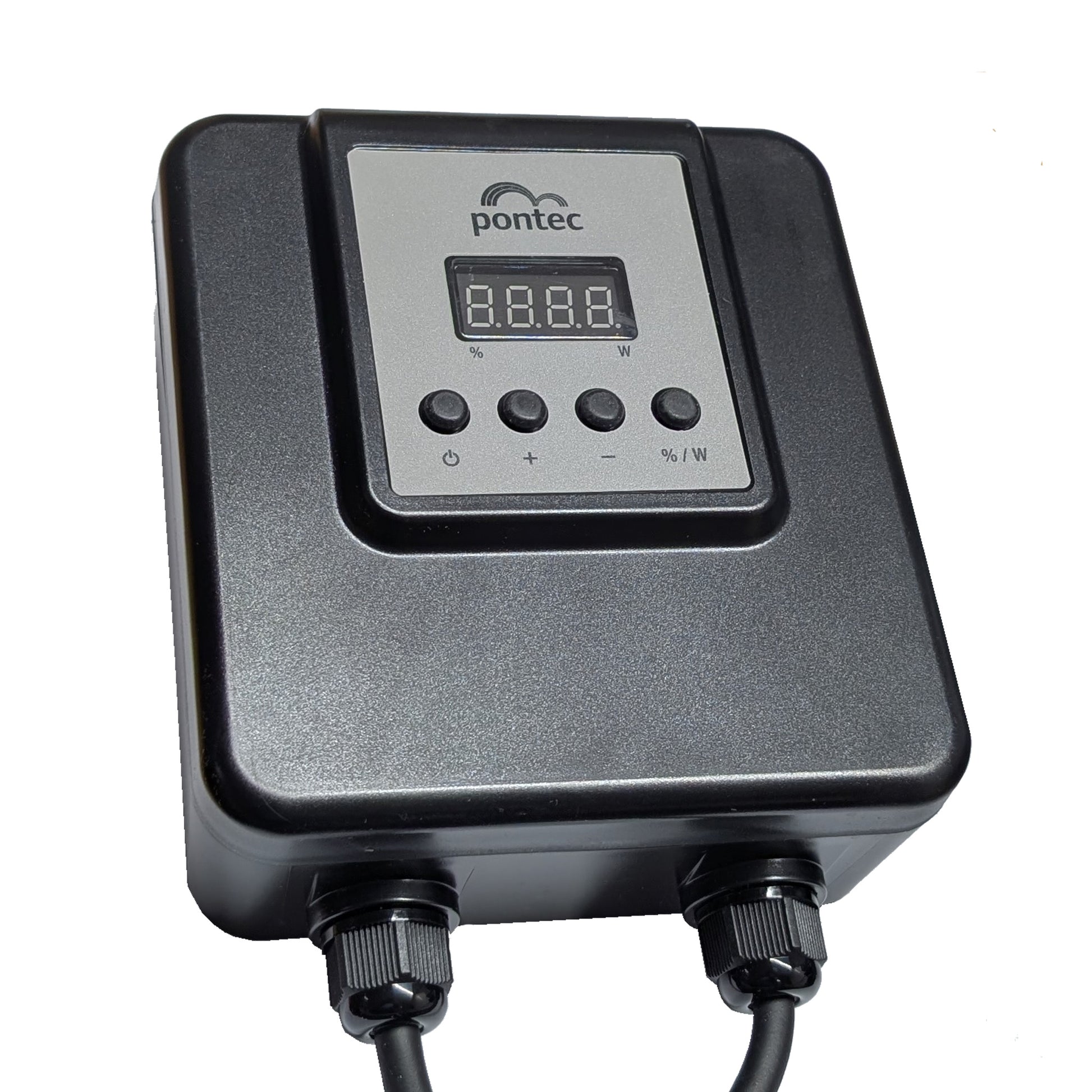

This model is suitable for use as a filter pump or watercourse pump and can handle dirt particles up to 8mm in size. The integrated controller features a four-digit display that can show the selected power level as a percentage or in watts, and it can also display an error code if a malfunction occurs.
Pontec PondoMax Eco 5000 Control Features
- Integrated controller with 7-stage flow adjustment
- Four-digit display shows percentage output, wattage and error codes
- Handles dirt particles up to 8mm
- Suitable for submerged or dry installation below water level
- Protected against dry running and blockage
- Supplied with 2 stepped hose adaptors

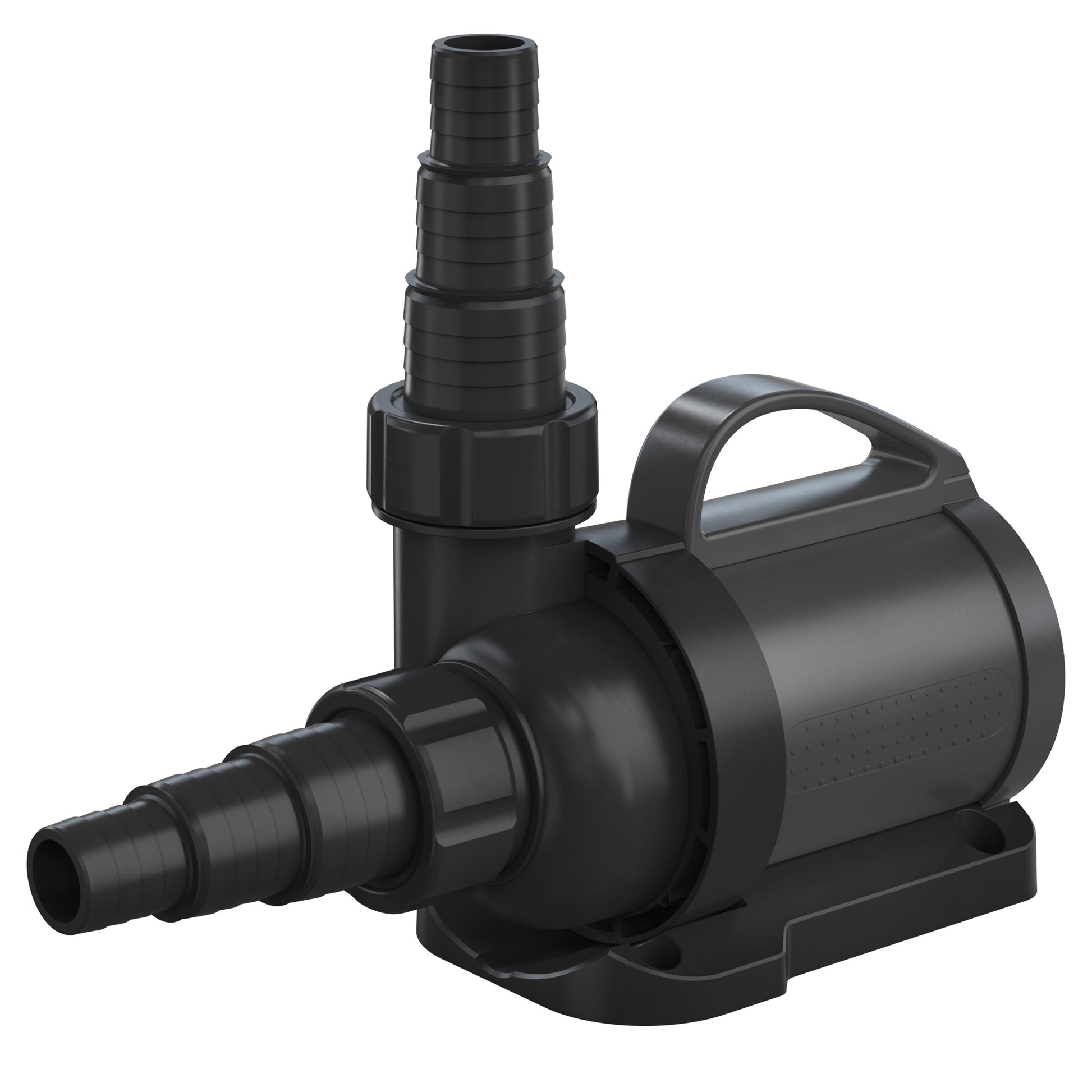

The pump can be installed wet in the pond or dry in a below-water-level pump chamber, making it suitable for a range of pond layouts. This gives more flexibility where the pump needs to feed a filter system or support a watercourse while remaining easy to integrate into the overall setup.
The controller is IP44 rated, which means it can be located outdoors when protected from the worst of the elements. The cable arrangement includes 2 metres between the mains connection and controller, and 8 metres between the controller and pump.
As part of the wider PondoMax Eco Control range, this model combines adjustable flow with solids handling and built-in protection against dry running and blocking. It is a suitable option where a lower flow model is needed for smaller filter or watercourse applications.
| Outlet Size | 25, 32, 38mm |
| Power Consumption | 15 - 55W |
| Max Flow Rate | 5000 litres per hour (1100 GPH) |
| Flow Rate at 1m Head | 3900 litres per hour (858 GPH) |
| Flow Rate at 2m Head | 2700 litres per hour (594 GPH) |
| Flow Rate at 3m Head | 1600 litres per hour (352 GPH) |
| Flow Rate at 4m Head | 600 litres per hour (132 GPH) |
| Flow Rate at 5m Head | - |
| Solids Handling | Up to 8mm |
| Controller Rating | IP44 |
| Cable Length | 2m mains to controller, 8m controller to pump |
| Guarantee | 3 years |
What's Included
- Pump with integrated controller
- 2 stepped hose adaptors
Good to Know
- The controller can be placed outside but should be protected from the worst of the weather
- Suitable for submerged installation or dry installation in a below-water-level chamber
The Pontec PondoMax Eco 5000 Control is a compact filter and watercourse pump with an integrated controller for adjusting flow output in 7 stages. It is designed to move pond water and dirt particles to a filter efficiently, while also giving you visible control over power usage and pump performance.
This model is suitable for use as a filter pump or watercourse pump and can handle dirt particles up to 8mm in size. The integrated controller features a four-digit display that can show the selected power level as a percentage or in watts, and it can also display an error code if a malfunction occurs.
Pontec PondoMax Eco 5000 Control Features
- Integrated controller with 7-stage flow adjustment
- Four-digit display shows percentage output, wattage and error codes
- Handles dirt particles up to 8mm
- Suitable for submerged or dry installation below water level
- Protected against dry running and blockage
- Supplied with 2 stepped hose adaptors
The pump can be installed wet in the pond or dry in a below-water-level pump chamber, making it suitable for a range of pond layouts. This gives more flexibility where the pump needs to feed a filter system or support a watercourse while remaining easy to integrate into the overall setup.
The controller is IP44 rated, which means it can be located outdoors when protected from the worst of the elements. The cable arrangement includes 2 metres between the mains connection and controller, and 8 metres between the controller and pump.
As part of the wider PondoMax Eco Control range, this model combines adjustable flow with solids handling and built-in protection against dry running and blocking. It is a suitable option where a lower flow model is needed for smaller filter or watercourse applications.
| Outlet Size | 25, 32, 38mm |
| Power Consumption | 15 - 55W |
| Max Flow Rate | 5000 litres per hour (1100 GPH) |
| Flow Rate at 1m Head | 3900 litres per hour (858 GPH) |
| Flow Rate at 2m Head | 2700 litres per hour (594 GPH) |
| Flow Rate at 3m Head | 1600 litres per hour (352 GPH) |
| Flow Rate at 4m Head | 600 litres per hour (132 GPH) |
| Flow Rate at 5m Head | - |
| Solids Handling | Up to 8mm |
| Controller Rating | IP44 |
| Cable Length | 2m mains to controller, 8m controller to pump |
| Guarantee | 3 years |
What's Included
- Pump with integrated controller
- 2 stepped hose adaptors
Good to Know
- The controller can be placed outside but should be protected from the worst of the weather
- Suitable for submerged installation or dry installation in a below-water-level chamber
Use the table below to select the correctly sized item. If you have any difficulties deciding which size is right for you, contact us by email or phone and we will be very happy to assist you.
| Model | Outlet Size (mm) | Watts | 0m | 1m (3.2ft) | 2m (6.5ft) | 3m (9.8ft) | 4m (13.1ft) | 5m (16.4ft) |
| Pontec PondoMax Eco 5000 Control | 25, 32, 38 | 15 - 55 | 5000 (1100) | 3900 (858) | 2700 (594) | 1600 (352) | 600 (132) | - |
| Pontec PondoMax Eco 10000 Control | 25, 32, 38 | 30 - 90 | 10000 (2200) | 8400 (1848) | 5700 (1254) | 3600 (792) | 2400 (528) | 900 (198) |
| Pontec PondoMax Eco 15000 Control | 32, 38, 50 | 40 - 135 | 15000 (3300) | 12000 (2640) | 8400 (1848) | 5700 (1254) | 3900 (858) | 2400 (528) |
| Pontec PondoMax Eco 20000 Control | 32, 38, 50 | 50 - 190 | 20000 (4400) | 15000 (3300) | 10800 (2376) | 7800 (1716) | 5100 (1122) | 3600 (792) |
