Oase BioTec ScreenMatic 2 Pond Filters

You Are Here : Pond Products > Pumping and Filtering your Pond > Pond Filter Units > Oase BioTec ScreenMatic 2 Pond Filters

Oase BioTec ScreenMatic 2 Pond Filters

Oase BioTec 40000 - ScreenMatic 2 Pond Filters

Our Ref: OAF121
Manufacturers Ref: 57694
Our Price:
See full details
£41 Voucher Code
See information tab below for details

Free Next Working Day Delivery Upgrade
(Same day dispatch if ordered by 10am Monday - Friday) - UK Mainland Only

Oase BioTec 60000 - ScreenMatic 2 Pond Filters

Our Ref: OAF122
Manufacturers Ref: 57695
Our Price:
See full details
£50 Voucher Code
See information tab below for details

Free Next Working Day Delivery Upgrade
(Same day dispatch if ordered by 10am Monday - Friday) - UK Mainland Only

Oase BioTec 90000 - ScreenMatic 2 Pond Filters

Our Ref: OAF124
Manufacturers Ref: 46178
Our Price:
See full details
£68 Voucher Code
See information tab below for details

Free Next Working Day Delivery Upgrade
(Same day dispatch if ordered by 10am Monday - Friday) - UK Mainland Only

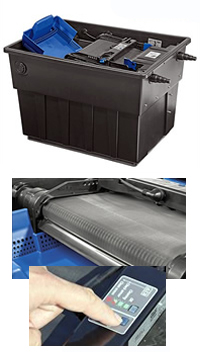

With the introduction of the BioTec ScreenMatic 2 Filters Oase have shown that they are always innovating and improving their pond filters. The New and upgraded Biotec ScreenMatic 2 range now features an improved coarse debris system and electronic control system. Simple operation, fast, clean maintenance and outstanding filtration results are the unique features of these filters. A specially designed sieve catches all debris particles above 300 microns that arrive in the filter. The sieve has been designed as a belt which rotates when dirty via a built-in 12v motor and is scraped clean as it turns. The dirt build up on the screen is monitored by a new sensor system which only operates the 12v motor when needed, thus saving running costs and wear and tear. The waste falls in to an increased capacity tray for disposal. The water which is enriched with oxygen, then falls into the chamber below, flows through the filter zones and then reaches the next filter chamber. The friendly filter bacteria present in the pond water settle and multiply in the oxygen rich sponges. The individual chamber situated just in front of the outlet holds a number of Zeolite filled cartridges which are ideal when starting up the filter. Once established the material inside can be changed to Phosless (not supplied) which will help prevent algae growth in the pond. Each filter is also supplied with a plunger to allow for easy cleaning of the foam cartridges and a brush to aid cleaning of the belt. Once the foams have been squeezed out a valve is pulled and the dirty water drains from the tank. The drain is at the bottom of each filter and is 50mm on the 40000, 60000 and 90000 and 75mm on the 140000. All units supplied with a 2 year guarantee which can be upgraded to 3 years by registering your purchase with Oase.

Oase Biotec ScreenMatic 2 Pond Filter Features

• Intelligent filter system for fish ponds up to 70m³ (70000 litres)
• The automatic coarse debris extraction using "conveyer belt" sieve technology
• High quality filter sponges for biological filtration
• Intelligent control functions
• Simple plug & play operation
• 300 µm first stage cleaning sieves
• Pollutant discharge using included slide valve

Oase BioTec ScreenMatic 2 Pond Filters - Product Video

Oase BioTec ScreenMatic 2 Pond Filters - Product Sizing

Use the table below to select the correctly sized item. If you have any difficulties deciding which size is right for you, contact us by email or phone and we will be very happy to assist you.

Pond Volume Litres (gallons)
Suggested Hose
mm (inch)
LxWxD mm
Max Flowrate
Lph (Gph)
Biotec 40000
ScreenMatic 2
38 (1)
788 x 590 x 445
1 x 75
Biotec 60000
ScreenMatic 2
38 (1)
788 x 590 x 545
1 x 75
Biotec 90000
ScreenMatic 2
38 (1½)
788 x 590 x 645
1 x 110
To calculate the approximate volume of your pond, select the Shape, Unit of Measurement and amount of shading, then press calculate. If you would like to try different combinations, remember to press Reset between calculations.
Pond Shape
Pond Size
Rectangular Metres / Litres Full Sunshine
Circular Feet / Gallons Partly Shaded
Actual Volume
Effective Volume

What is Effective Volume ?
The effective volume is the quantity of water in your pond, plus an allowance for shallow and or ponds exposed to high levels of sunlight. Both of these situations will result in a higher than normal algae growth, and fish pollution. We advise that to ensure your that your equipment is correctly sized, the effective volume be considered the minimum size for the equipment you select. However do remember to check the details of the product you are interested in, to ensure that there are no other allowances or consideration specific to that product are required.

If a product is advertised with a Discount Code, we will email you a unique code as soon as your goods are dispatched. This code will be valid for use on our website 12 months from the date of your purchase.

Please note the following conditions of use:

Voucher codes are not transferable and must be delivered to the same address as your original order.

Our voucher codes have no cash alternative value.

If your original goods are returned for a refund the voucher code will become invalid and the value of a used voucher code will be deducted from your refund.
