Oase ProfiClear Premium Compact - L - Pond Filter - Gravity Fed - ECG

The Oase ProfiClear Premium Compact L Gravity Fed Pond Filter is a high-capacity automatic drum and moving bed filtration system designed for large koi ponds, swim ponds and heavily stocked garden ponds. This advanced filter combines automatic mechanical drum filtration with high-efficiency biological moving bed filtration to deliver consistent water clarity and stable pond conditions with reduced maintenance.

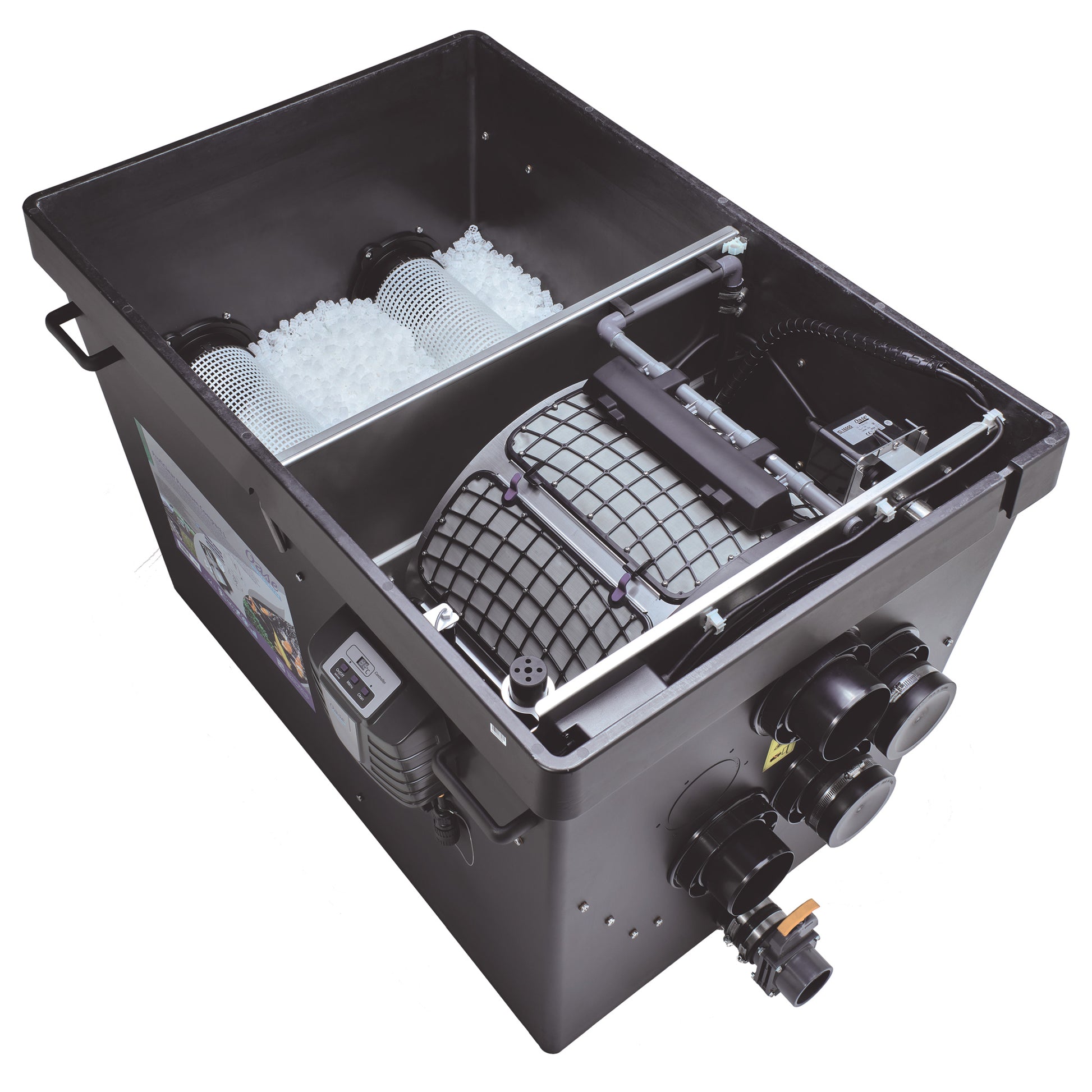

Pond water enters the centre-mounted drum and passes through fine 60 micron sieve screens which remove suspended solids before water moves into the biological stage. When debris begins to block the screens, an integrated water sensor automatically activates the cleaning cycle. The drum rotates and high-pressure spray jets clean the mesh, flushing waste to drain while maintaining continuous filtration performance.

Oase ProfiClear Premium Compact L Gravity Fed Pond Filter Features

• Combined automatic drum and moving bed filtration system
• Self-cleaning drum with integrated water level sensor
• Fine 60 micron sieve screens for mechanical filtration
• 60 litres Hel-X 13 biomedia for biological filtration
• Integrated aeration connection for moving bed operation

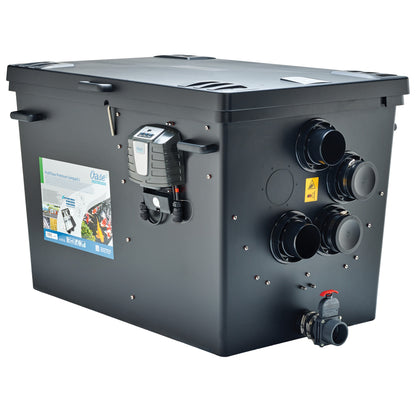

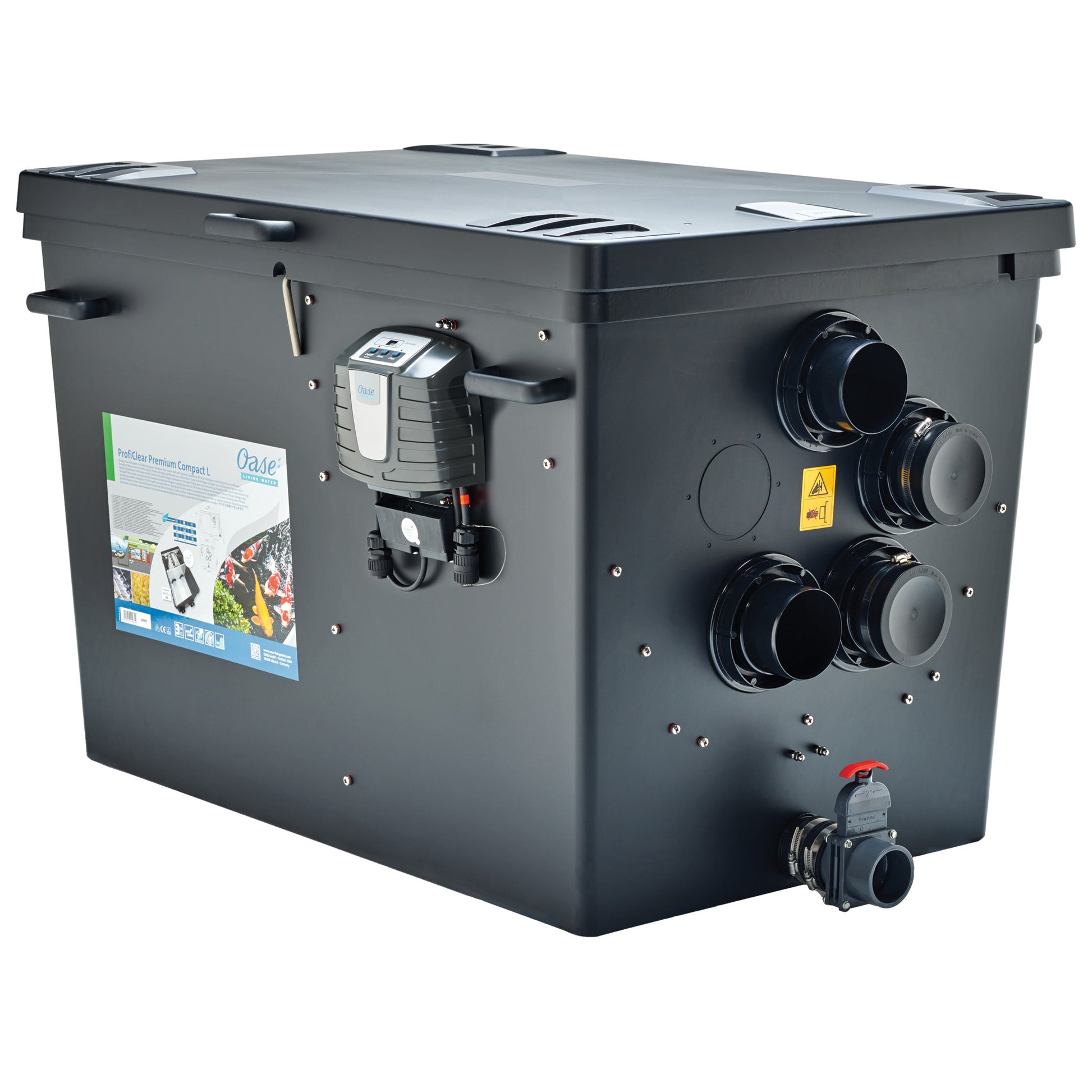

• Three 110mm gravity-fed inlets
• Twin 160mm outlet connections
• Integrated high-pressure cleaning pump
• Quiet operation with noise-dampened design
• Pollutant rakes to assist with string algae removal
• Integrated slide valve for waste discharge
• Compatible with Oase Control system and InScenio FM Master Cloud

The gravity-fed configuration allows the filter body to be installed below pond water level, making it suitable for bottom drain installations and larger gravity-fed pond systems. The top of the filter must remain approximately 125mm above pond water level for correct operation.

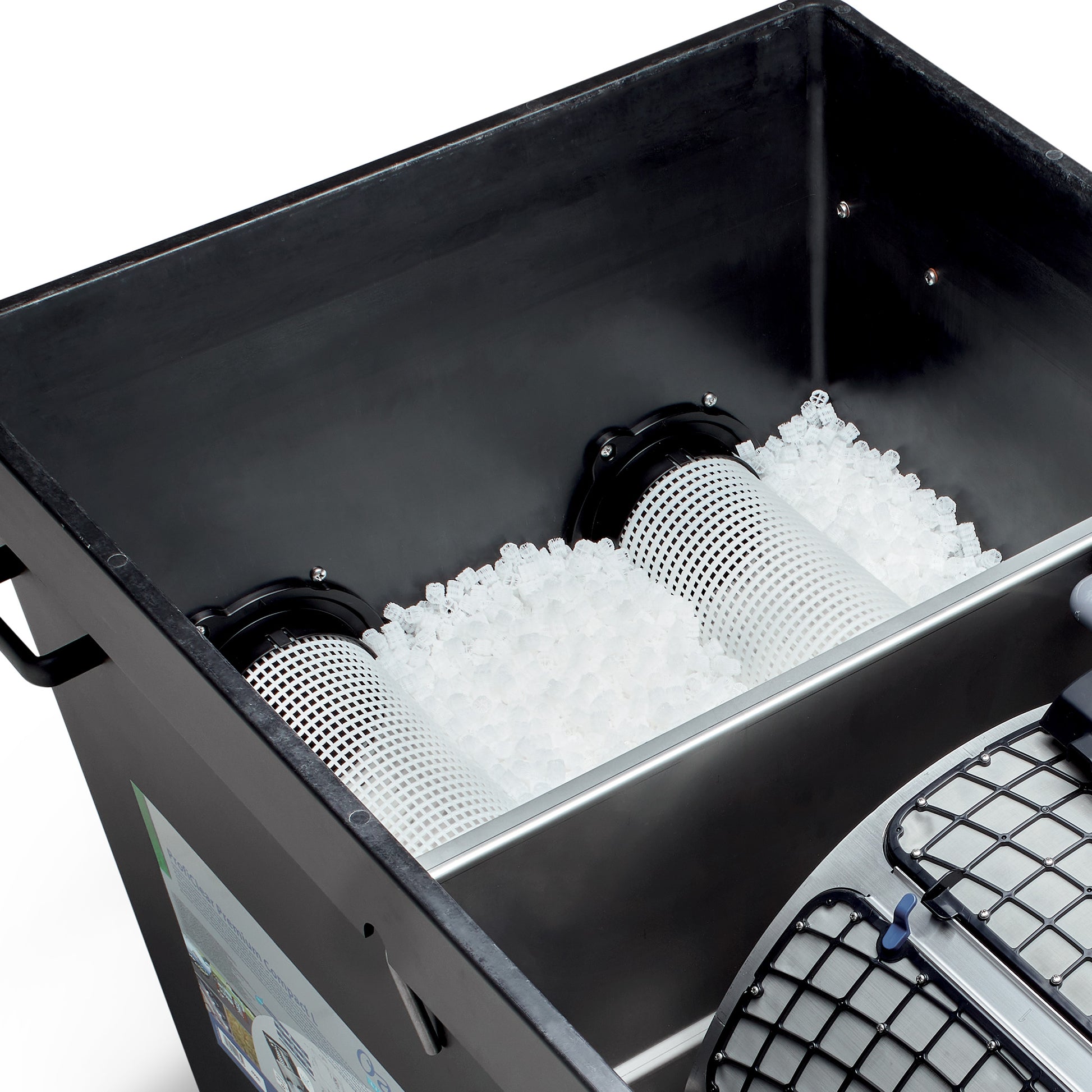

The biological stage uses a moving bed chamber containing 60 litres of Hel-X 13 media. Water is released into this chamber through perforated retransfer tubes, while air from the integrated aeration connection keeps the media in constant motion. This oxygen-rich environment supports beneficial bacteria and promotes efficient breakdown of harmful toxins.

This model is designed for large pond installations and offers a high flow capacity with automatic cleaning and biological treatment in a single compact unit. It is suitable for natural ponds up to 140,000 litres, goldfish ponds up to 70,000 litres and swim ponds / koi ponds up to 35,000 litres.

What's Included

• Oase ProfiClear Premium Compact L Gravity Fed Pond Filter
• Integrated drum cleaning pressure pump
• 60 litres Hel-X 13 biomedia
• Filter controller with 5m cable
• 110mm waste adapter

Good to Know

• Air pump required for moving bed aeration (not included)
• Designed for gravity-fed bottom drain installations
• Compatible with Oase pump chamber or module chamber
• Pumps can be connected using 4" to 1½" or 2" boot fittings
• Compatible with Oase Control system via InScenio FM Master Cloud
• Recommended optional extras include the Oase AquaOxy 2500 air pump, Oase Bitron UV clarifiers and 75mm flexible or solid pipe
