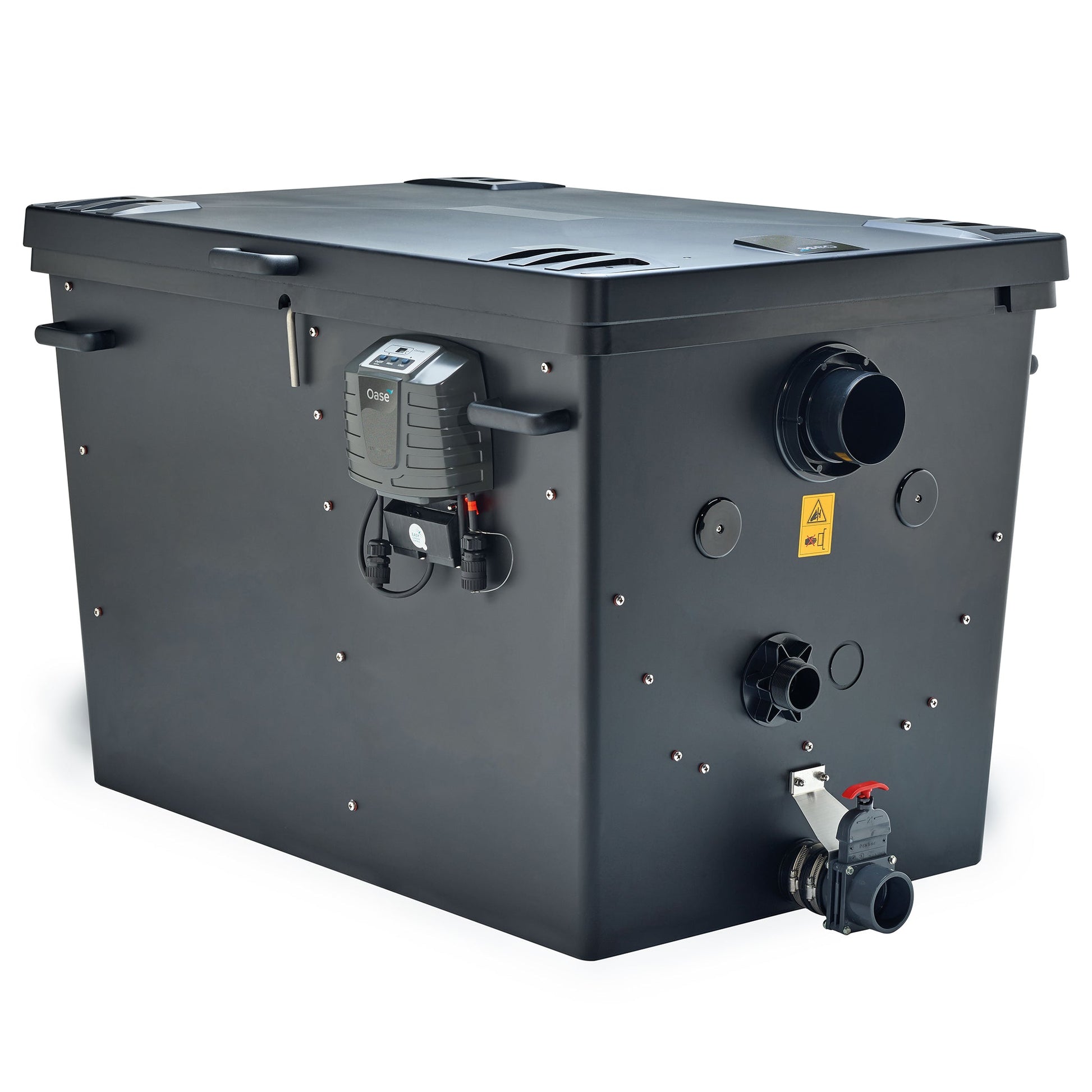

Oase ProfiClear Premium Compact - L - Pond Filter - Pump Fed - ECG

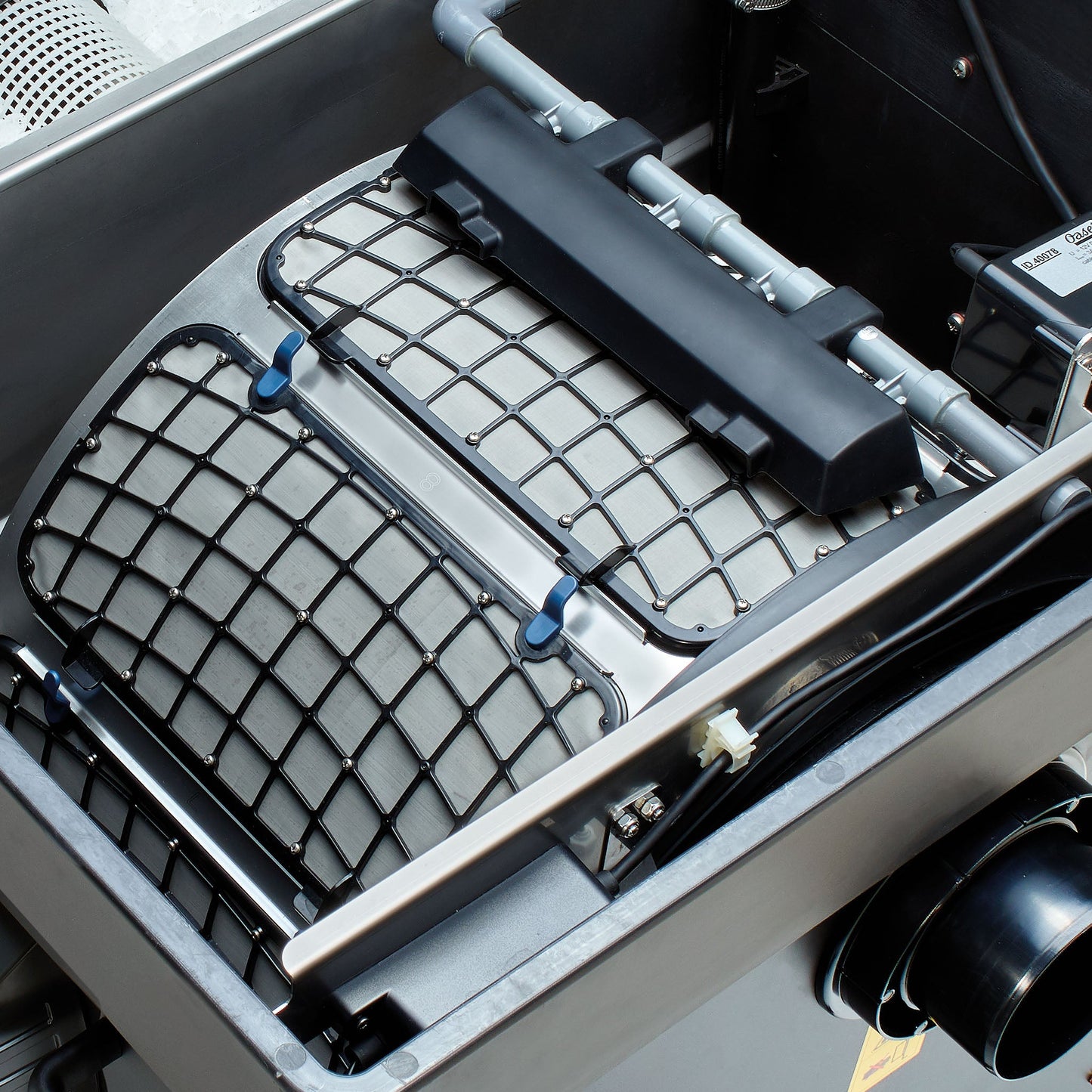

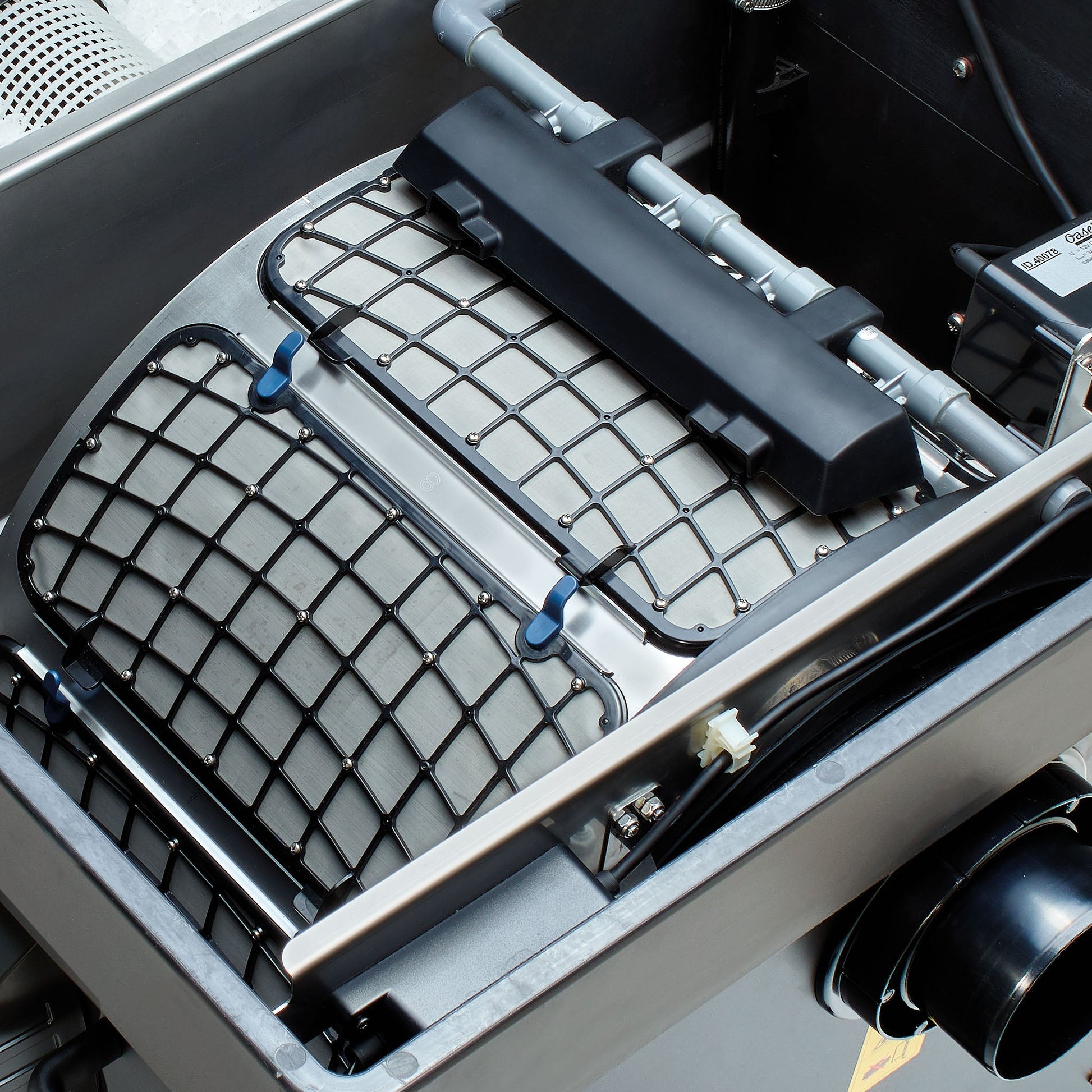

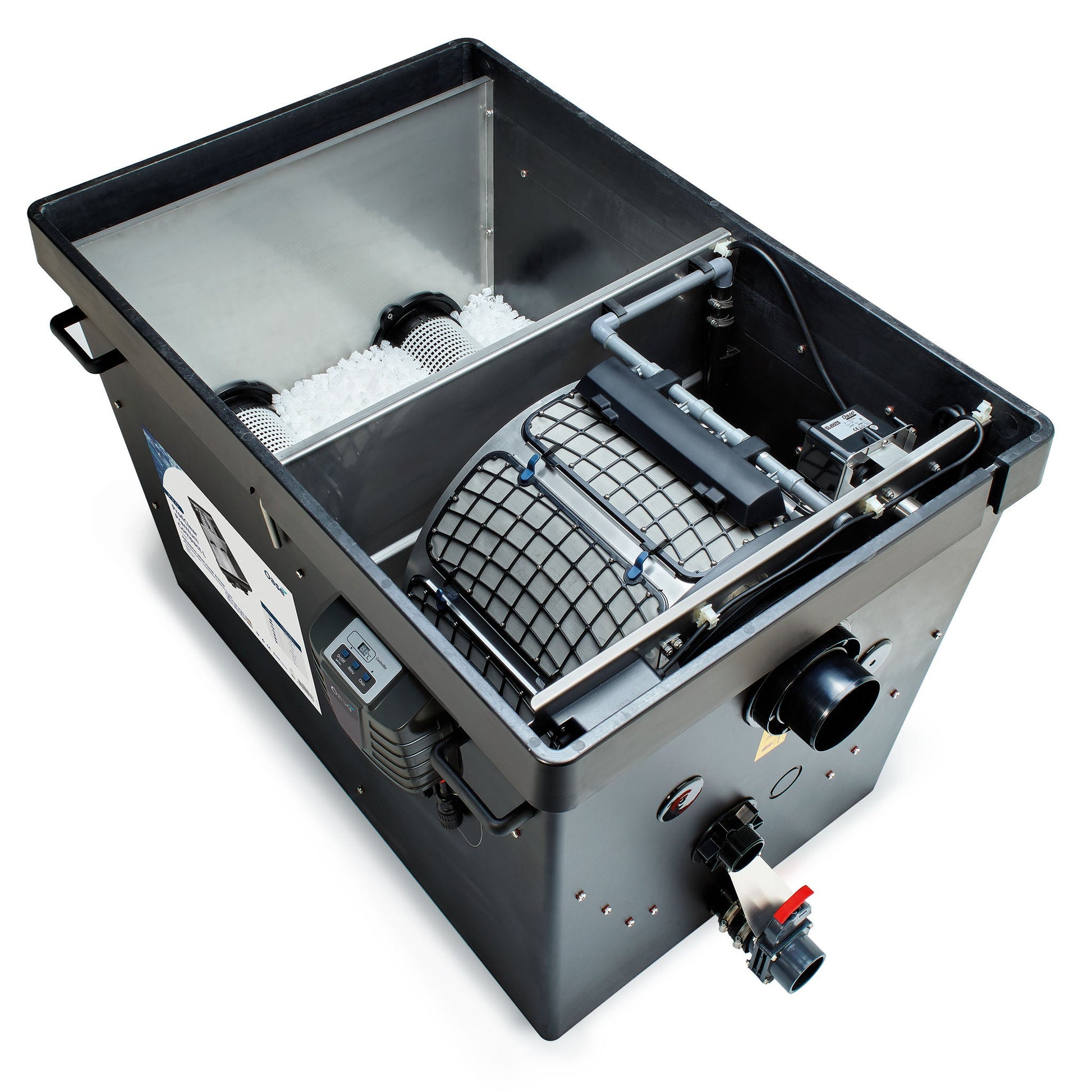

The Oase ProfiClear Premium Compact - L - Pump Fed Pond Filter are state of the art filters which produce fantastic clarity and water quality and even self-clean. The advanced filter system combining the self-cleaning technology of Drum filtration and moving bed filtration principles of Oase Premium Modular Kits. Pond water enters the tank (normally via a Bitron UV which is sold separately) straight into the centre of the drum and flows out through the fine mesh sieves 60µm (micrometres) into the tank. Thanks to the drum technology, the debris which is trapped on the inside surface of the sieves is easily and automatically cleaned. An integrated water sensor measures when the drum needs cleaning and triggers the rotation of the drum and activates the water jets, which blasts the mesh clean. The debris and water are collected and drains out of the tank to waste. This cleaning process is achieved using a powerful, high-quality pressure pump which is mounted in the base of the tank. The mesh sieves are very easy to remove (no tools required) and the free-wheeling function makes for easy access to the drum interior. Rakes on the inside of the drum help prevent the sieves from being choked by algae. Not only does the filter have a maximum flowrate (20000 litres per hour) but to ensure it works correctly it also has a minimum flow (10000 litres per hour).

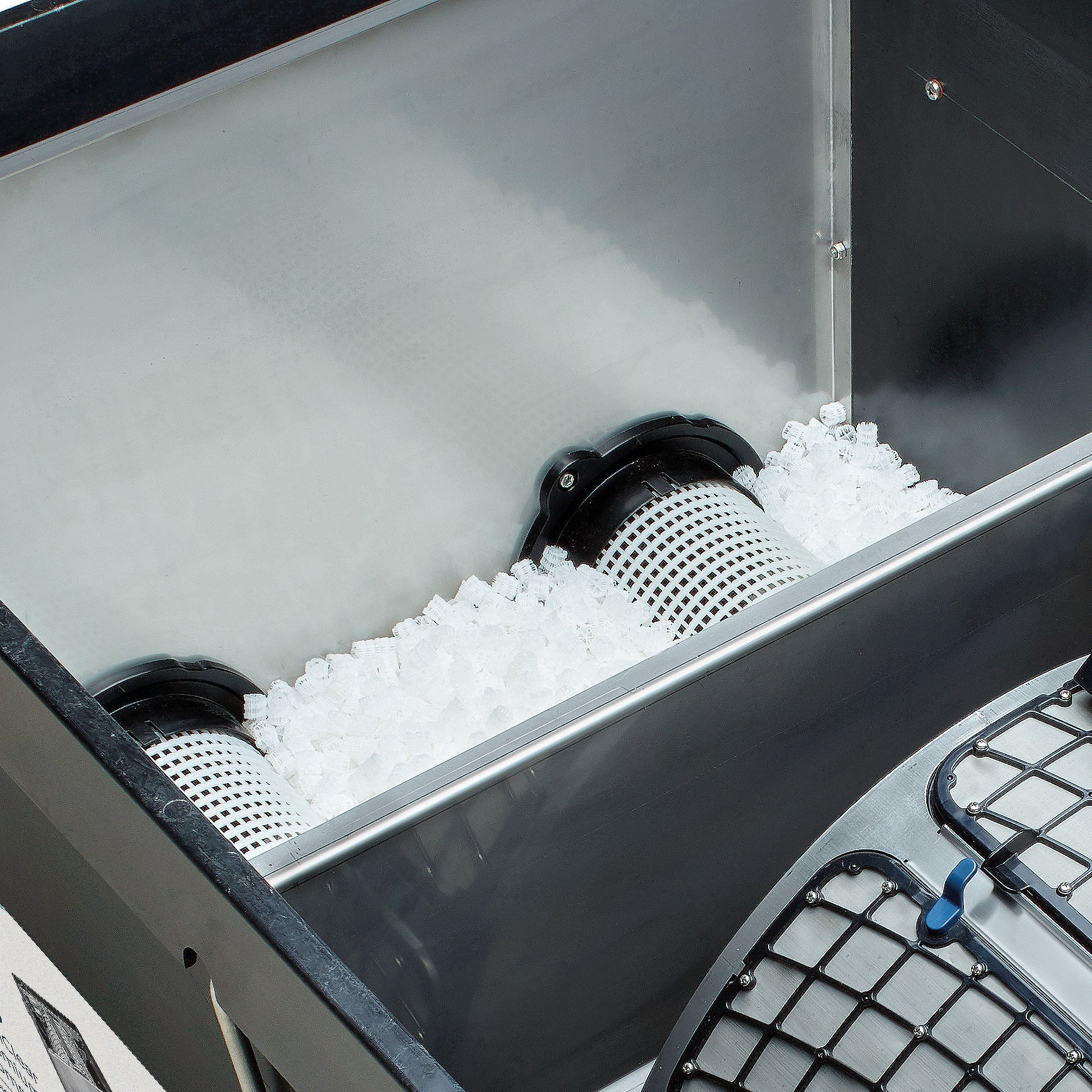

The second stage in the filtration process is biological filtration. In this area the water is released from the perforated tube into the moving bed part of the filter, which contains 40 Litres of specially designed "Hel-X 13" biomedia. The water in this area is continually "moving" due to the release of air at a rate of 2500 LPH from the integrated aerator (air pump not included). This design of moving media in water, which is highly enriched with oxygen, is the ideal environment to ensure the highly efficient removal of toxins, ensuring perfect water conditions.

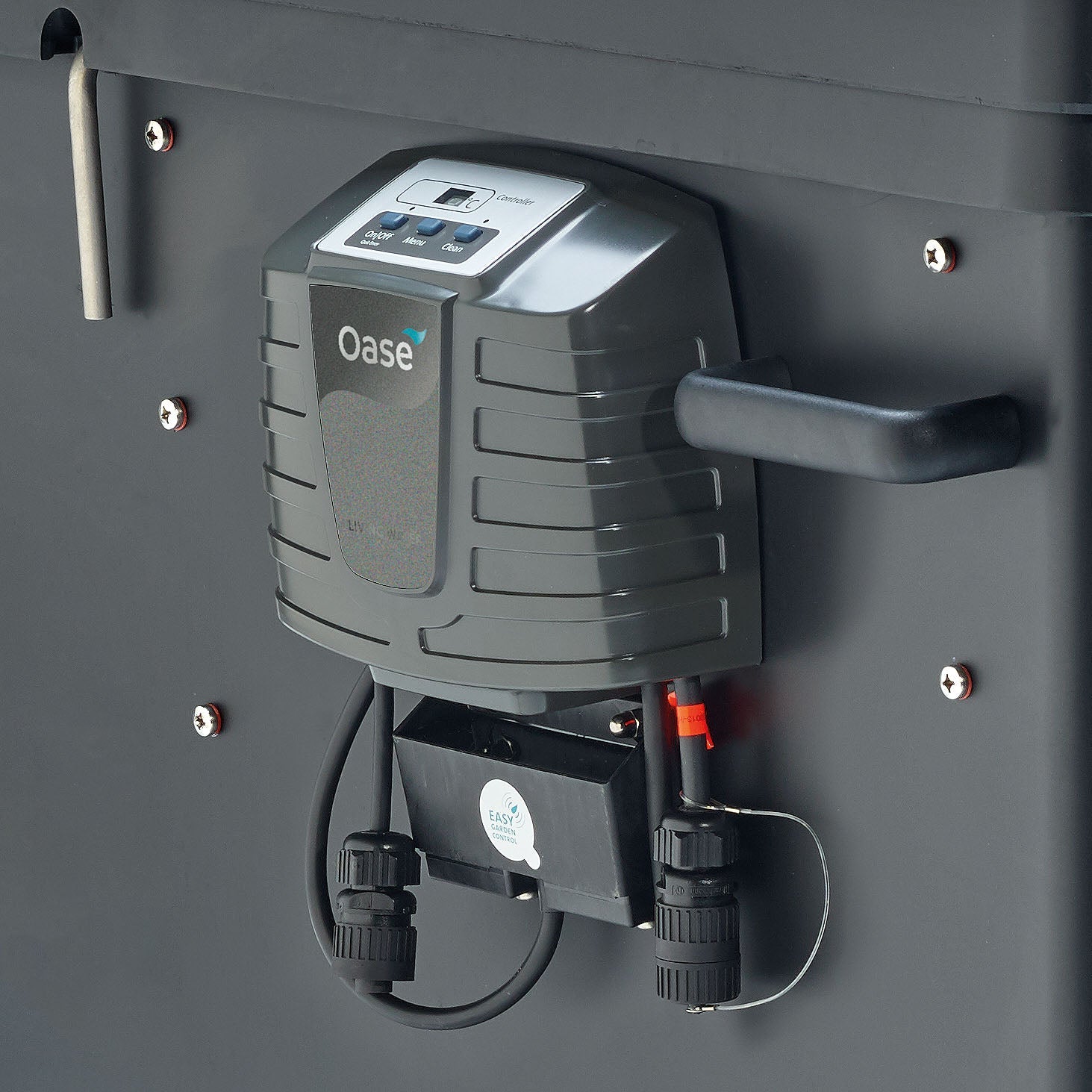

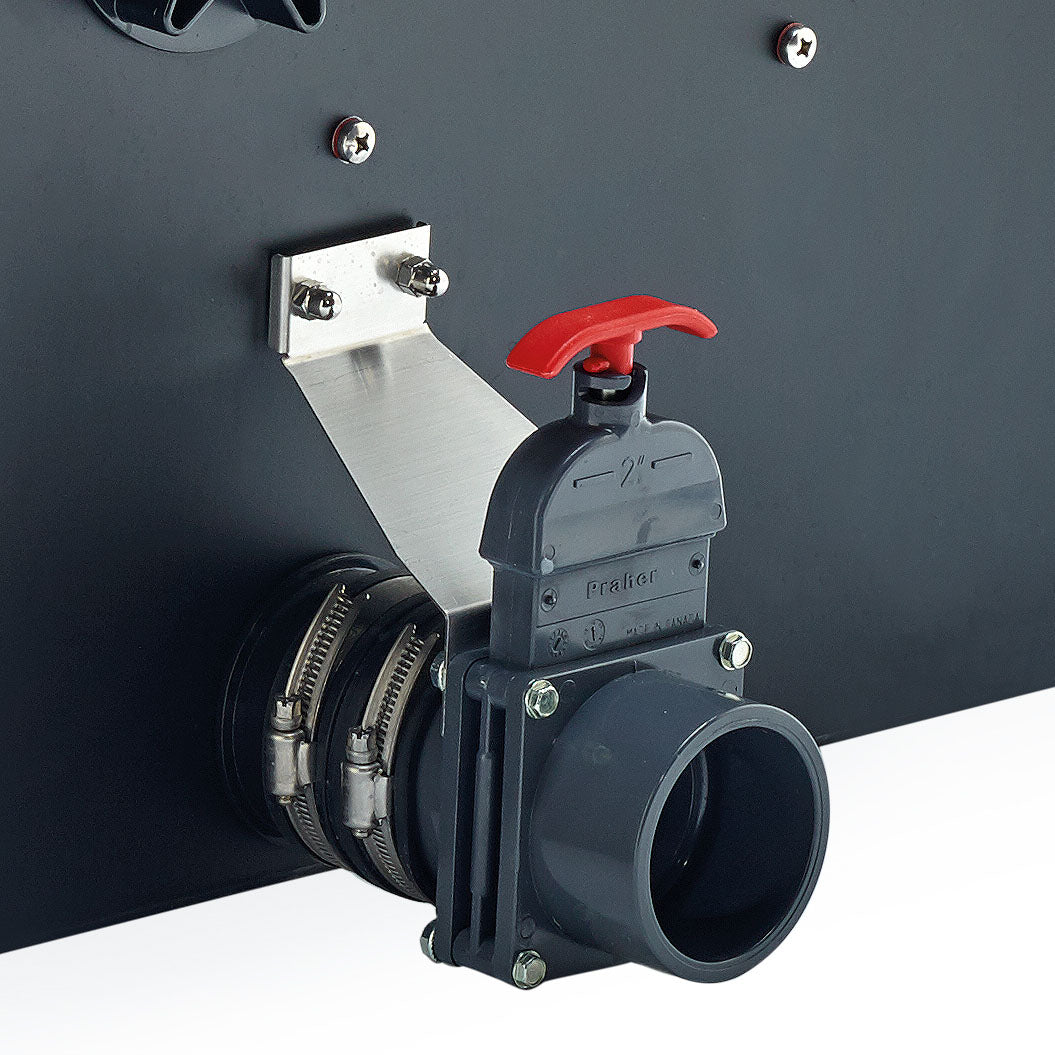

The Oase ProfiClear Premium Compact - L - Pond Filter has a drain slide valve at the bottom of the tank which connects to Oase 75mm pipework or by use of the supplied adapter 110mm pipework. The filter is supplied with 2 year guarantee which can be upgraded to 3 years by registering with OASE. The filter controller is supplied with 5m of mains cable.

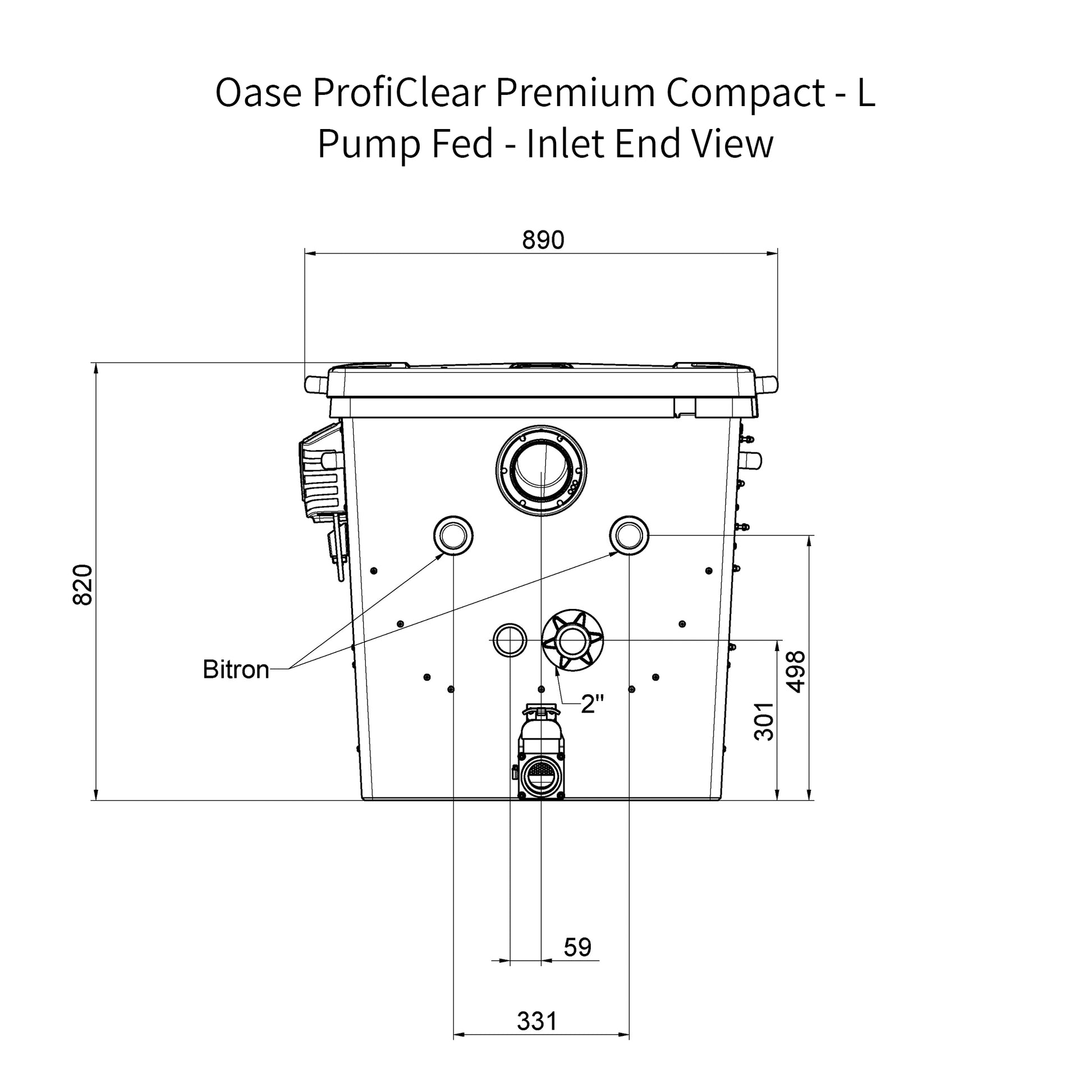

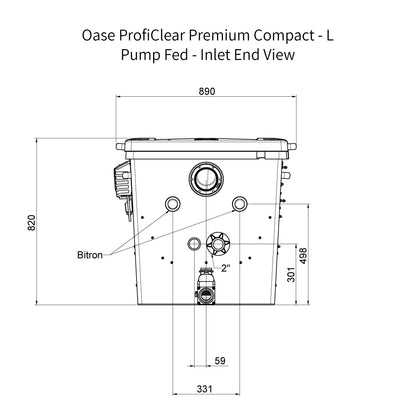

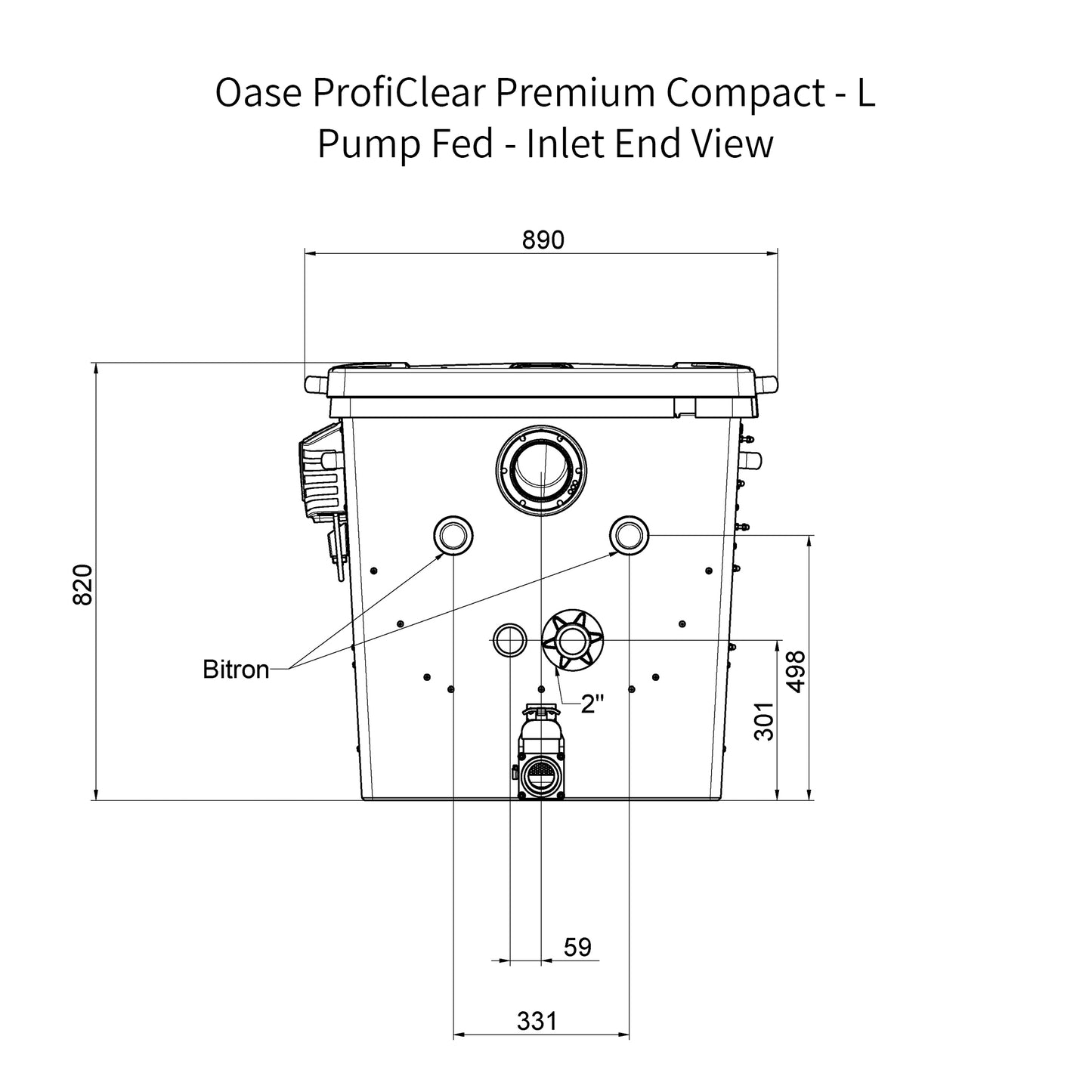

The Oase ProfiClear Premium Compact - L - Pump Fed Pond Filter has a twin 110mm (4") outlet pipe and 2 x 50mm inlet connections which are compatible with the Oase Bitron 72C - 110C and Oase Bitron Eco 120 -240 Ultra Violet Lights.

OC (Oase Control) System

The OASE ProfiClear Premium Compact - L has been upgraded to include Oases’ OC (Oase Control) System, which give you the ability to connect this filter to the InScenio FM Master Cloud wireless control system.

Once connected the InScenio FM Master Cloud will allow you to control all settings via the Oase APP on a smart phone or tablet.

Oase ProfiClear Premium Compact - L - Pump Fed Pond Filter Features:

• Intelligent filter system for 120000 litre natural ponds, 60000 litre Goldfish or Swim Ponds or Koi Ponds 30000 litres
• The automatic fine debris extraction using drum filter technology
• Highly efficient "Moving Bed" for biological filtration using "Hel-X 13" biomedia
• Intelligent control functions

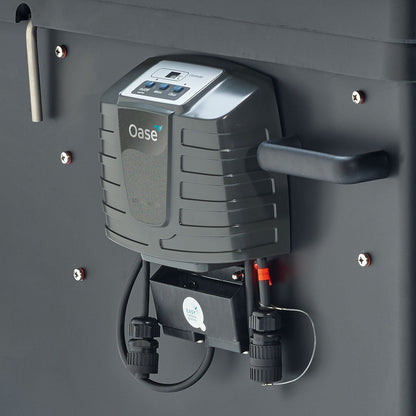

• Micro controller system monitors and controls the main functions
• Simple plug & play operation
• Powerful, high-quality integrated pressure pump for drum cleaning
• Incomparably quiet through extensive noise damping
• 60 µm debris cleaning sieves
• Pollutant rakes on the sieves for reliable removal of string algae
• Pollutant discharge including slide valve
• Pump Fed (Gravity Fed version also available)


Recommended Optional Extras:

• Oase AquaOxy 2500 Air Pump
• Oase Bitron Ultra Violet Light - 72C - 110C

• Oase Bitron Eco 120 -240 Ultra Violet Lights
• Oase 110mm Push Fit Pipe
• Oase 75mm Push Fit Rigid Pipe for waste
• 75mm Flexible hose for waste

Technical Specifications:

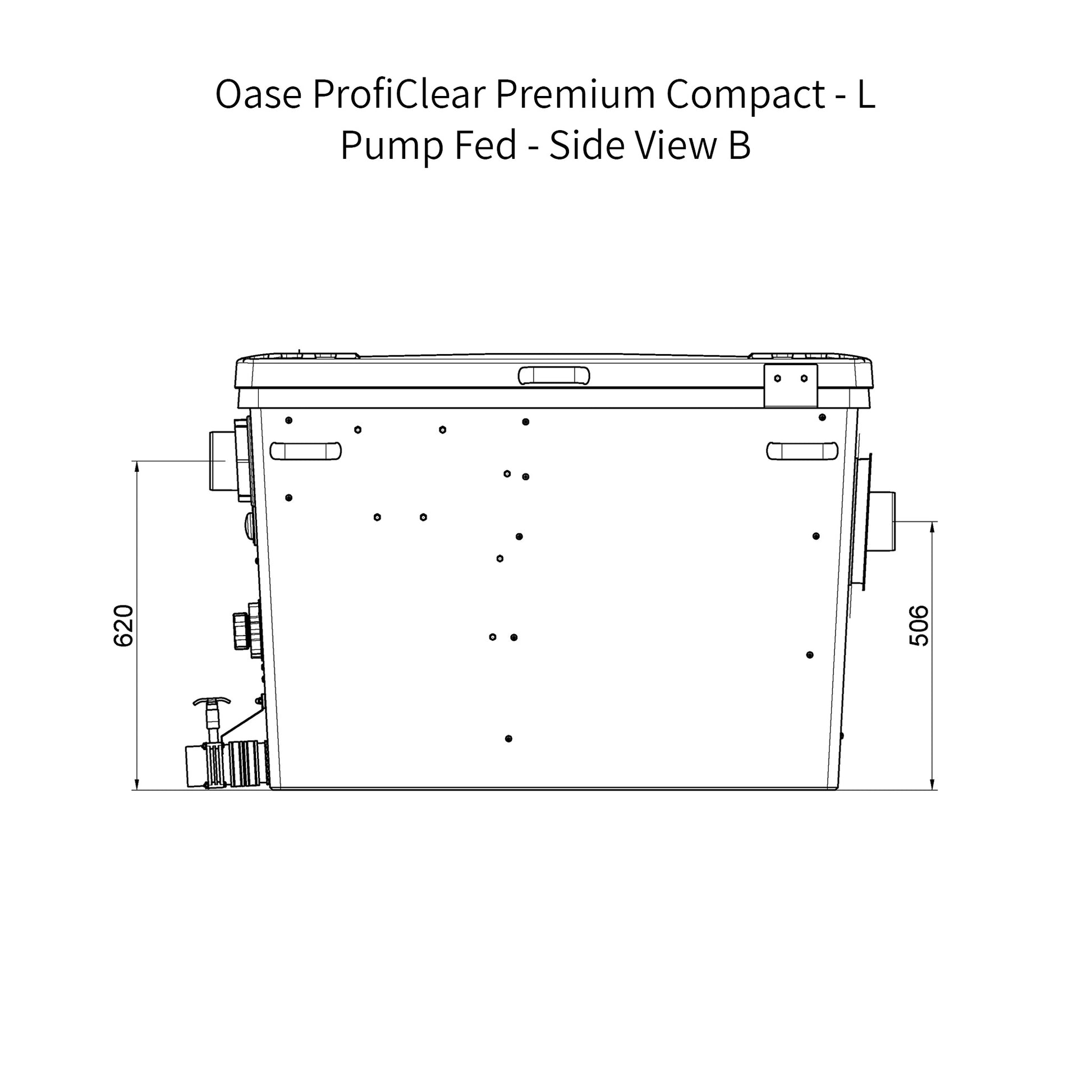

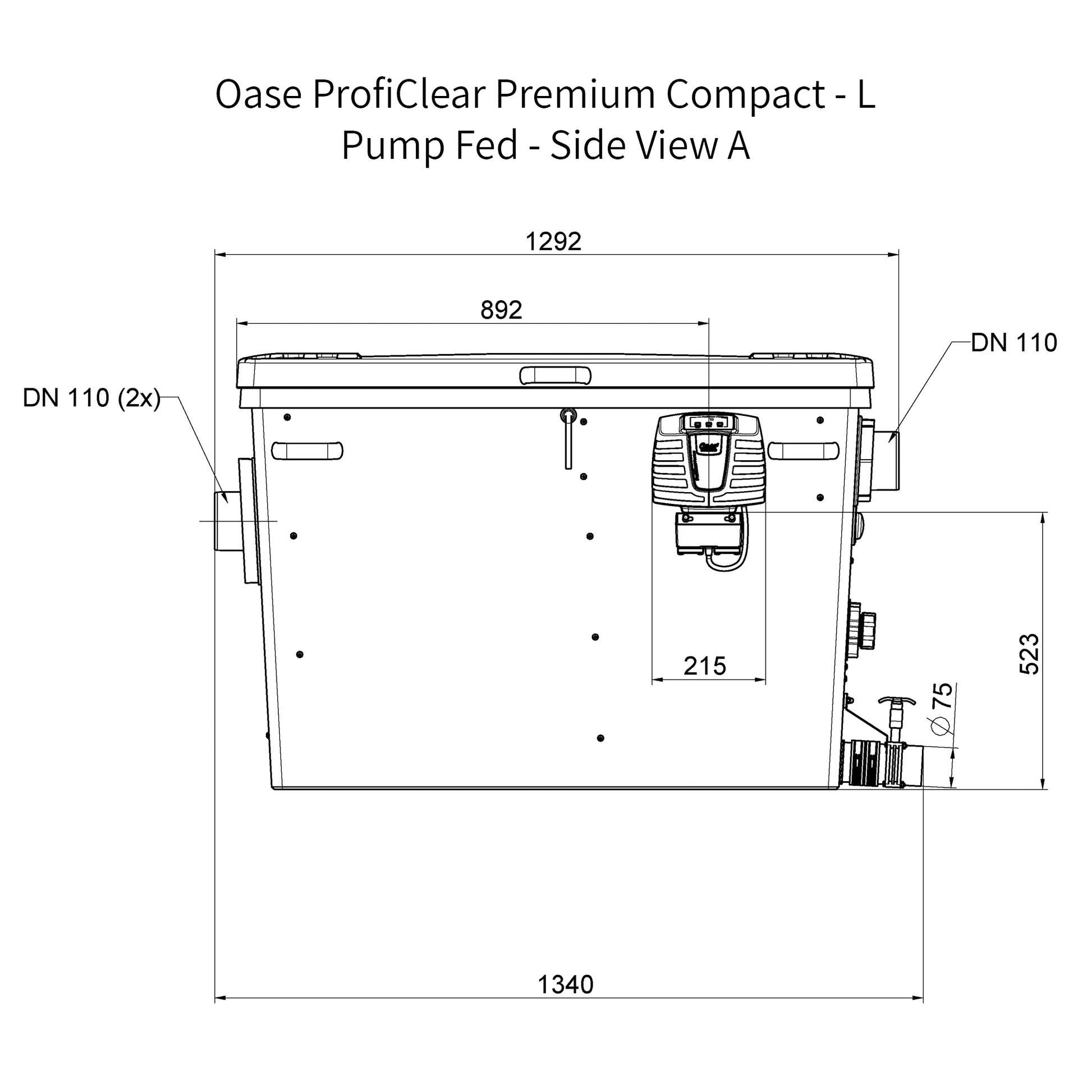

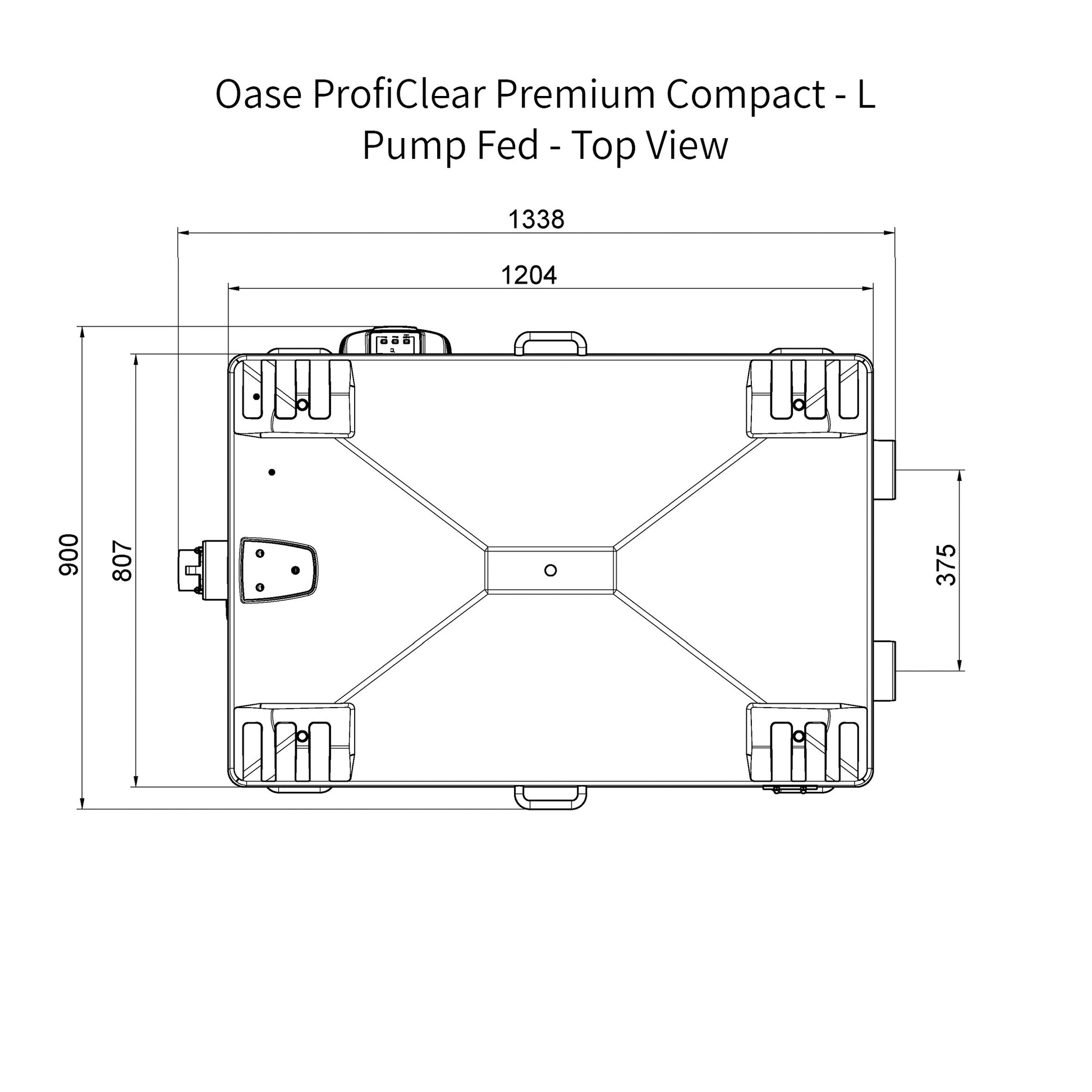

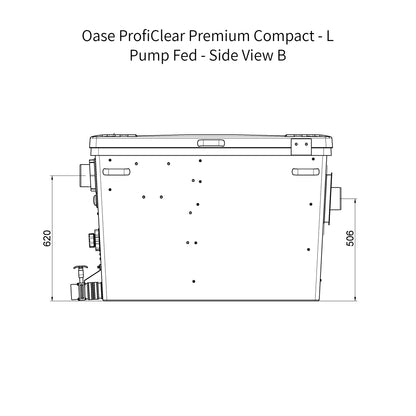

• Dimensions: Length - 1370m x Width 891mm x Height 815mm
• Power Consumption: 5 watts
• Power Consumption Cleaning: 1050 watts
• Cable Length: 5m
• Net Weight: 133kg
• Biological Surface: 57.3m³
• Temperature Display: Digital
• Scavenging Pump: 6 bar
• Number of sieve elements: 8
