Hozelock Vorton 11 - 55 UV Spares

You Are Here : Spare Parts > Hozelock Spare Parts > Hozelock Vorton 11 - 55 UV Spares

Hozelock Vorton 11 - 55 Ultra Violet Light Spare Parts

Hozelock Vorton 11 - 55 Ultra Violet Light Spare Parts

The Hozelock Vorton 2200 - 2700 Ultra Violet spares that are currently available include replacement UV Lamps, Replacement Quartz Sleeves and Hosetail Sets

Spare Parts - Quick Links

Hozelock Vorton 11 - 55 Ultra Violet Light Manuals

Hozelock Vorton 11 - 55 UV Spares
Diagram - Part 1

Hozelock - 18w PLL UV Bulb (4 Pin) (was HZB011)
Our Ref: TMB033 - Manufacturers Ref: 100-000-285

Diagram Part Ref: 1

In Stock

Buy any 3 replacement None Oase UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Hozelock - 18w PLL UV Bulb (4 Pin) (was HZB011)Large image of Hozelock - 18w PLL UV Bulb (4 Pin) (was HZB011)
Roll over to zoom
Our Price:
£32.99
Quantity:

The Hozelock 18w 4 Pin TUV PLL lamps are compact UVC (germicidal) lamps used in Ultra Violet Clarifiers. The compact size of the lamp allows for a small system design and design flexibility. Hozelock 18w 4 Pin TUV PLL lamps offer constant UV output over their complete lifetime, for high system efficacy. Thanks to the single ended lamp base, lamp replacement is easy.

Hozelock 18w - 4 Pin PLL TUV Ultra Violet Bulb Benefits
• Security of effectiveness over the complete lifetime of the bulb
• Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
• Protective inside coating ensures constant UV output over the complete lifetime of the lamp
• Lamp glass filters out the 185 nm ozone-forming line
• PLL lamp base contains a special starter for almost instant starting

UV Bulb Specification
• Description : Hozelock 18w PLL UV bulb (4 pins at one end)
• Length - Overall : 225mm
• Length - Excluding Pins : 218mm
• Length - Glass : 195mm
• Ceramic - Width : 23mm
• Ceramic - Breadth : 45mm
Hozelock - 24W - 4 Pin PL-L TUV Ultra Violet Bulb (was HZB012)
Our Ref: TMB034 - Manufacturers Ref: 100-000-244

Diagram Part Ref: 1

In Stock

Buy any 3 replacement None Oase UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Hozelock - 24W - 4 Pin PL-L TUV Ultra Violet Bulb (was HZB012)Large image of Hozelock - 24W - 4 Pin PL-L TUV Ultra Violet Bulb (was HZB012)
Roll over to zoom
Our Price:
£39.98
Quantity:

The Hozelock 24w 4 Pin TUV PLL lamps are compact UVC (germicidal) lamps used in Ultra Violet Clarifiers. The compact size of the lamp allows for a small system design and design flexibility. Hozelock 24w 4 Pin TUV PLL lamps offer constant UV output over their complete lifetime, for high system efficacy. Thanks to the single ended lamp base, lamp replacement is easy.

Hozelock 24w - 4 Pin PLL TUV Ultra Violet Bulb Benefits
• Security of effectiveness over the complete lifetime of the bulb
• Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
• Protective inside coating ensures constant UV output over the complete lifetime of the lamp
• Lamp glass filters out the 185 nm ozone-forming line
• PLL lamp base contains a special starter for almost instant starting

UV Bulb Specification
• Description : Hozelock 24w PLL UV bulb (4 pins at one end)
• Length - Overall : 326mm
• Length - Excluding Pins : 319mm
• Length - Glass : 294mm
• Ceramic - Width : 23mm
• Ceramic - Breadth : 45mm
Hozelock - 36W - 4 Pin PLL TUV Ultra Violet Bulb (was HZB013)
Our Ref: TMB035 - Manufacturers Ref: 100-000-287

Diagram Part Ref: 1

In Stock

Buy any 3 replacement None Oase UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Hozelock - 36W - 4 Pin PLL TUV Ultra Violet Bulb (was HZB013)Large image of Hozelock - 36W - 4 Pin PLL TUV Ultra Violet Bulb (was HZB013)
Roll over to zoom
Our Price:
£43.99
Quantity:

The Hozelock 36w 4 Pin TUV PLL lamps are compact UVC (germicidal) lamps used in Ultra Violet Clarifiers. The compact size of the lamp allows for a small system design and design flexibility. Hozelock 36w 4 Pin TUV PLL lamps offer constant UV output over their complete lifetime, for high system efficacy. Thanks to the single ended lamp base, lamp replacement is easy.

Hozelock 36w - 4 Pin PLL TUV Ultra Violet Bulb Benefits
• Security of effectiveness over the complete lifetime of the bulb
• Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
• Protective inside coating ensures constant UV output over the complete lifetime of the lamp
• Lamp glass filters out the 185 nm ozone-forming line
• PLL lamp base contains a special starter for almost instant starting

UV Bulb Specification
• Description : Hozelock 36w PLL UV bulb (4 pins at one end)
• Length - Overall : 414mm
• Length - Excluding Pins : 407mm
• Length - Glass : 382mm
• Ceramic - Width : 23mm
• Ceramic - Breadth : 45mm
Hozelock - 55W - 4 Pin PLL TUV Ultra Violet Bulb (was HZB014)
Our Ref: TMB036 - Manufacturers Ref: 100-000-289

Diagram Part Ref: 1

In Stock

Buy any 3 replacement None Oase UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Hozelock - 55W - 4 Pin PLL TUV Ultra Violet Bulb (was HZB014)Large image of Hozelock - 55W - 4 Pin PLL TUV Ultra Violet Bulb (was HZB014)
Roll over to zoom
Our Price:
£54.98
Quantity:

The Hozelock 55w 4 Pin TUV PLL lamps are compact UVC (germicidal) lamps used in Ultra Violet Clarifiers. The compact size of the lamp allows for a small system design and design flexibility. Hozelock 55w 4 Pin TUV PLL lamps offer constant UV output over their complete lifetime, for high system efficacy. Thanks to the single ended lamp base, lamp replacement is easy.

Hozelock 55w - 4 Pin PLL TUV Ultra Violet Bulb Benefits
• Security of effectiveness over the complete lifetime of the bulb
• Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
• Protective inside coating ensures constant UV output over the complete lifetime of the lamp
• Lamp glass filters out the 185 nm ozone-forming line
• PLL lamp base contains a special starter for almost instant starting

Please note that this bulb is not suitable for use with the 2016 models of the Hozelock Vorton Ultra Violet Lights

UV Bulb Specification
• Description : Hozelock 55w PLL UV bulb (4 pins at one end)
• Length - Overall : 514mm
• Length - Excluding Pins : 507mm
• Length - Glass : 482mm
• Ceramic - Width : 23mm
• Ceramic - Breadth : 45mm

Hozelock Vorton 11 - 55 UV Spares
Diagram - Part 2

Hozelock Vorton 11w Ultra Violet B Version - Quartz Sleeve (1575 000)
Our Ref: HZQ050 - Manufacturers Ref: 1575 0000

Diagram Part Ref: 2
This is suitable for the "B" version of a Vorton, which has a button to release the electrical end cap.
Sorry this part has been DISCONTINUED by the manufacturers
Click to Enlarge an image of Hozelock Vorton 11w Ultra Violet B Version - Quartz Sleeve (1575 000)Large image of Hozelock Vorton 11w Ultra Violet B Version - Quartz Sleeve (1575 000)
Roll over to zoom

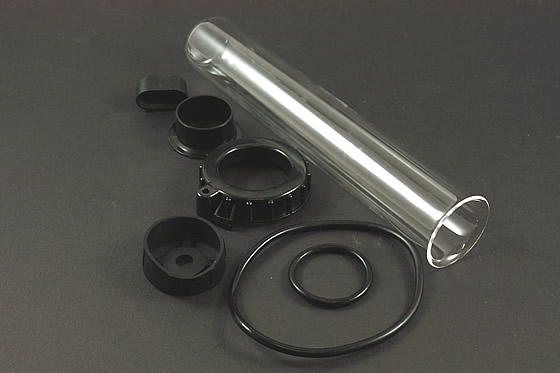

Hozelock Vorton 11w Ultra Violet B Version - Quartz Sleeve - 2016+ (1538 000)
Our Ref: HZQ071 - Manufacturers Ref: 1575 0000

Diagram Part Ref: 2
This is suitable for the "C" version of a Vorton, which DOES NOT have a button to release the electrical end cap.
Sorry this part has been DISCONTINUED by the manufacturers
Click to Enlarge an image of Hozelock Vorton 11w Ultra Violet B Version - Quartz Sleeve - 2016+ (1538 000)Large image of Hozelock Vorton 11w Ultra Violet B Version - Quartz Sleeve - 2016+ (1538 000)
Roll over to zoom

Hozelock Vorton 18w Ultra Violet B Version - Quartz Sleeve (1545 000)
Our Ref: HZQ051 - Manufacturers Ref: 1545 0000

Diagram Part Ref: 2
This is suitable for the "B" version of a Vorton, which has a button to release the electrical end cap.
Sorry this part has been DISCONTINUED by the manufacturers
Click to Enlarge an image of Hozelock Vorton 18w Ultra Violet B Version - Quartz Sleeve (1545 000)Large image of Hozelock Vorton 18w Ultra Violet B Version - Quartz Sleeve (1545 000)
Roll over to zoom

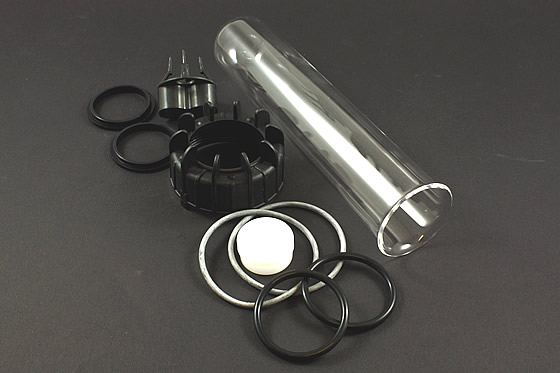

Hozelock Vorton 18w Ultra Violet C Version - Quartz Sleeve - 2016+ (1576 000)
Our Ref: HZQ072 - Manufacturers Ref: 1576 0000

Diagram Part Ref: 2
This is suitable for the "C" version of a Vorton, which DOES NOT have a button to release the electrical end cap.
Sorry this part has been DISCONTINUED by the manufacturers
Click to Enlarge an image of Hozelock Vorton 18w Ultra Violet C Version - Quartz Sleeve - 2016+ (1576 000)Large image of Hozelock Vorton 18w Ultra Violet C Version - Quartz Sleeve - 2016+ (1576 000)
Roll over to zoom

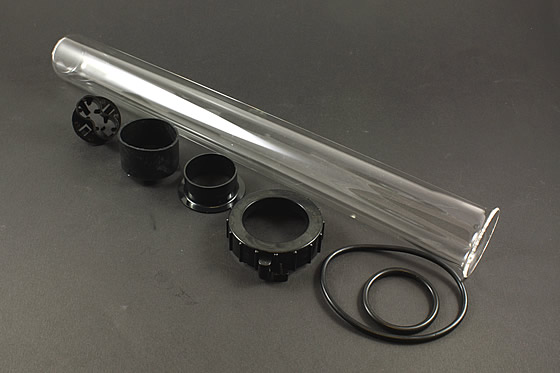

Hozelock Vorton 36w Ultra Violet B Version - Quartz Sleeve (1546 000)
Our Ref: HZQ052 - Manufacturers Ref: 1546 0000

Diagram Part Ref: 2
This is suitable for the "B" version of a Vorton, which has a button to release the electrical end cap.
In Stock (2 available)
Click to Enlarge an image of Hozelock Vorton 36w Ultra Violet B Version - Quartz Sleeve (1546 000)Large image of Hozelock Vorton 36w Ultra Violet B Version - Quartz Sleeve (1546 000)
Roll over to zoom
Our Price:
£21.60
Quantity:

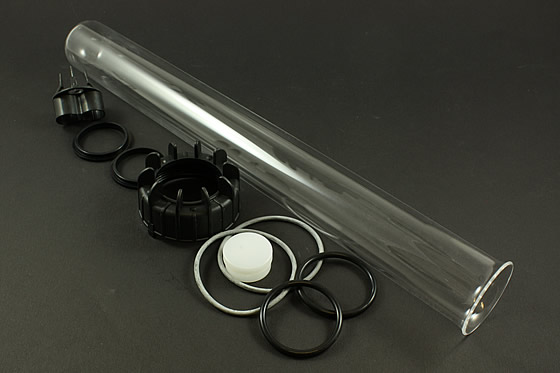

Hozelock Vorton 36w Ultra Violet C Version - Quartz Sleeve - 2016+ (1577 000)
Our Ref: HZQ073 - Manufacturers Ref: 1577 0000

Diagram Part Ref: 2
This is suitable for the "C" version of a Vorton, which DOES NOT have a button to release the electrical end cap.
Sorry this part has been DISCONTINUED by the manufacturers
Click to Enlarge an image of Hozelock Vorton 36w Ultra Violet C Version - Quartz Sleeve - 2016+ (1577 000)Large image of Hozelock Vorton 36w Ultra Violet C Version - Quartz Sleeve - 2016+ (1577 000)
Roll over to zoom

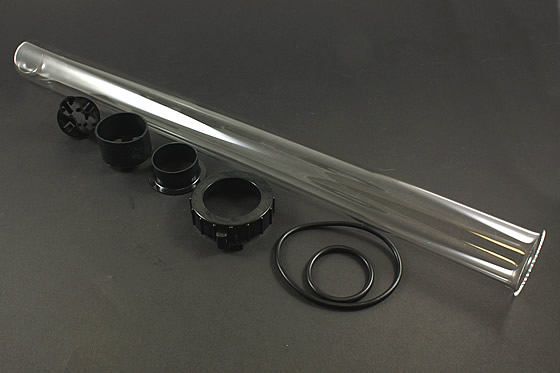

Hozelock Vorton 55w Ultra Violet B Version - Quartz Sleeve - (1547 000)
Our Ref: HZQ053 - Manufacturers Ref: 1547 0000

Diagram Part Ref: 2
This is suitable for the "B" version of a Vorton, which has a button to release the electrical end cap.
Sorry this part has been DISCONTINUED by the manufacturers
Click to Enlarge an image of Hozelock Vorton 55w Ultra Violet B Version - Quartz Sleeve - (1547 000)Large image of Hozelock Vorton 55w Ultra Violet B Version - Quartz Sleeve - (1547 000)
Roll over to zoom

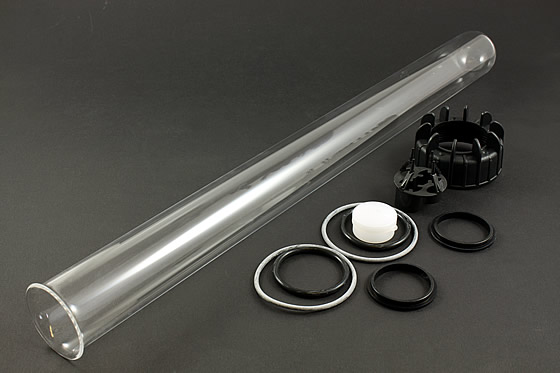

Hozelock Vorton 55w Ultra Violet C Version - Quartz Sleeve - 2016+ (1578 000)
Our Ref: HZQ074 - Manufacturers Ref: 1578 0000

Diagram Part Ref: 2
This is suitable for the "C" version of a Vorton, which DOES NOT have a button to release the electrical end cap.
Sorry this part has been DISCONTINUED by the manufacturers
Click to Enlarge an image of Hozelock Vorton 55w Ultra Violet C Version - Quartz Sleeve - 2016+ (1578 000)Large image of Hozelock Vorton 55w Ultra Violet C Version - Quartz Sleeve - 2016+ (1578 000)
Roll over to zoom


Hozelock Vorton 11 - 55 UV Spares
Diagram - Part 3

Hozelock Vorton 11 - 55 Ultra Violet - O-Ring Set - B Version Only (1548 000)
Our Ref: HZQ054 - Manufacturers Ref: 1548 0000

Diagram Part Ref: 3
Includes: Quartz and Body O-Ring and Grease
Please note that this is only suitable for the Vorton B version
In Stock (1 available)
Click to Enlarge an image of Hozelock Vorton 11 - 55 Ultra Violet - O-Ring Set - B Version Only (1548 000)Large image of Hozelock Vorton 11 - 55 Ultra Violet - O-Ring Set - B Version Only (1548 000)
Roll over to zoom
Our Price:
£5.99
Quantity:
