Pontec Multiclear 5000 / 8000 Pond Filter Spare Parts

You Are Here : Spare Parts > Pontec Spare Parts > Pontec Multiclear 5000 / 8000 Pond Filter Spare Parts

Pontec Multiclear 5000 / 8000 Pond Filter Spare Parts

Pontec Multiclear 5000 / 8000 Pond Filter Spare Parts

The Pontec Multiclear 5000 - 8000 pond filter spares that are currently available are the filter lid, foam set, bioballs,complete UV, replacement UV bulb, UV quartz sleeve, quartz sleeve securing nut set and 90 deg UV outlet pipe.

Spare Parts - Quick Links

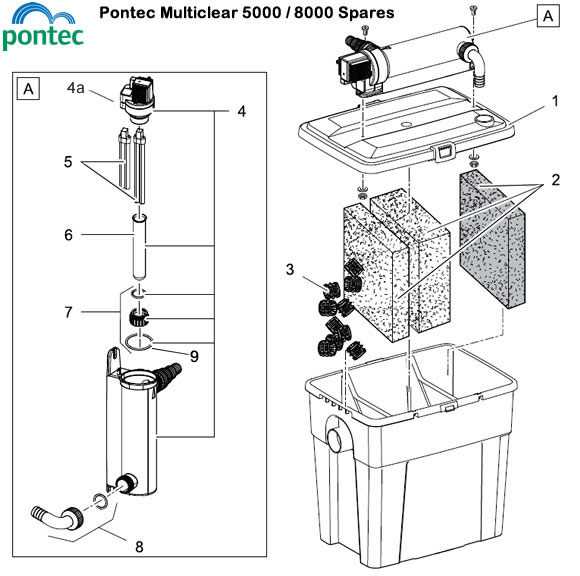

Pontec Multiclear 5000 / 8000 Pond Filter Spare Parts
Diagram - Part 1

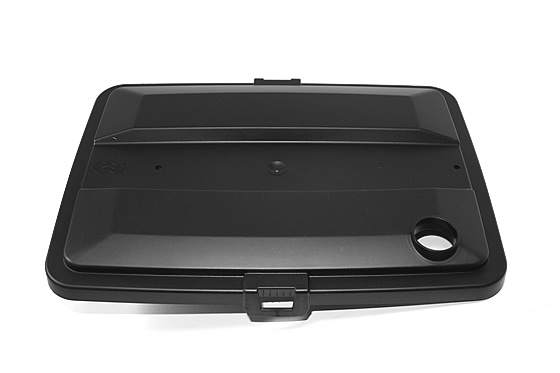

Pontec Multiclear 5000-8000 - Filter Lid (11220 was 24460)
Our Ref: OAS420 - Manufacturers Ref: 11220

Diagram Part Ref: 1
Click to Enlarge an image of Pontec Multiclear 5000-8000 - Filter Lid (11220 was 24460)Large image of Pontec Multiclear 5000-8000 - Filter Lid (11220 was 24460)
Roll over to zoom
Our Price:
4.80
Quantity:


Pontec Multiclear 5000 / 8000 Pond Filter Spare Parts
Diagram - Part 2

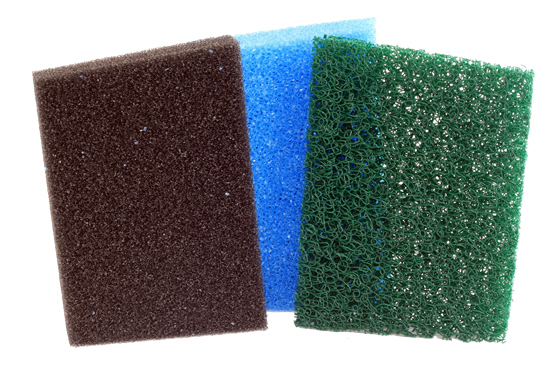

Pontec Multiclear 5000 - Foam Set (12092)
Our Ref: OAS421 - Manufacturers Ref: 12092

Diagram Part Ref: 2
Click to Enlarge an image of Pontec Multiclear 5000 - Foam Set (12092)Large image of Pontec Multiclear 5000 - Foam Set (12092)
Roll over to zoom
Our Price:
21.52
Quantity:

Pontec Multiclear 8000 - Foam Set (12093)
Our Ref: OAS422 - Manufacturers Ref: 12093

Diagram Part Ref: 2
Click to Enlarge an image of Pontec Multiclear 8000 - Foam Set (12093)Large image of Pontec Multiclear 8000 - Foam Set (12093)
Roll over to zoom
Our Price:
21.52
Quantity:


Pontec Multiclear 5000 / 8000 Pond Filter Spare Parts
Diagram - Part 3

Pontec Multiclear 5000-8000 - Bioballs (35814)
Our Ref: OAS414 - Manufacturers Ref: 35814

Diagram Part Ref: 3
Click to Enlarge an image of Pontec Multiclear 5000-8000 - Bioballs (35814)Large image of Pontec Multiclear 5000-8000 - Bioballs (35814)
Roll over to zoom
Our Price:
9.28
Quantity:


Pontec Multiclear 5000 / 8000 Pond Filter Spare Parts
Diagram - Part 4

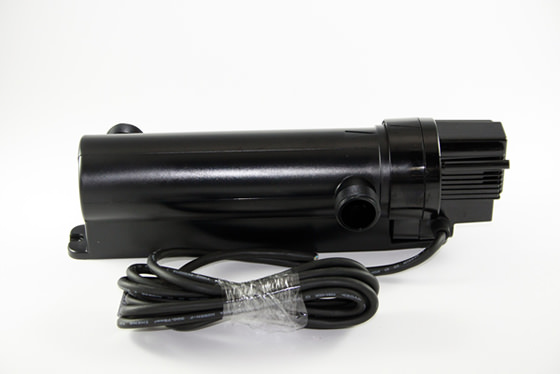

Pontec Multiclear 5000-8000 - Complete UV (ex Bulb) (12091)
Our Ref: OAS424 - Manufacturers Ref: 12091

Diagram Part Ref: 4
Click to Enlarge an image of Pontec Multiclear 5000-8000 - Complete UV (ex Bulb) (12091)Large image of Pontec Multiclear 5000-8000 - Complete UV (ex Bulb) (12091)
Roll over to zoom
Our Price:
59.99
Quantity:


Pontec Multiclear 5000 / 8000 Pond Filter Spare Parts
Diagram - Part 4a

Biopress / Biosmart Pondtec Uvc 7W / 9W / 11W - Head Unit (15665)
Our Ref: OAS406 - Manufacturers Ref: 15665

Diagram Part Ref: 8
Click to Enlarge an image of Biopress / Biosmart Pondtec Uvc 7W / 9W / 11W - Head Unit (15665)Large image of Biopress / Biosmart Pondtec Uvc 7W / 9W / 11W - Head Unit (15665)
Roll over to zoom
Our Price:
46.60
Quantity:


Pontec Multiclear 5000 / 8000 Pond Filter Spare Parts
Diagram - Part 5

7w - 2 Pin PLS TUV Ultra Violet Bulb
Our Ref: TMB026 - Manufacturers Ref: TL07CX-W

Diagram Part Ref: 5

Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of 7w - 2 Pin PLS TUV Ultra Violet BulbLarge image of 7w - 2 Pin PLS TUV Ultra Violet Bulb
Roll over to zoom
Our Price:
9.98
Quantity:

Suitable for Pontec Multiclear 5000

UV Bulb Specification
• Description : Generic 7w PLS UV bulb (2 pins at one end and one lug per side)
• Length - Overall : 136mm
• Length - Glass : 96mm
• Ceramic - Width : 16mm
• Ceramic - Breadth : 32mm
11w - 2 Pin PLS TUV Ultra Violet Bulb
Our Ref: TMB012 - Manufacturers Ref: 320300

Diagram Part Ref: 5

Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of 11w - 2 Pin PLS TUV Ultra Violet BulbLarge image of 11w - 2 Pin PLS TUV Ultra Violet Bulb
Roll over to zoom
Our Price:
11.99
Quantity:

Suitable for Pontec Multiclear 8000

UV Bulb Specification
• Description : Generic 11w PLS UV bulb (2 pins at one end and one lug per side)
• Length - Overall : 234mm
• Length - Glass : 194mm
• Ceramic - Width : 16mm
• Ceramic - Breadth : 32mm

Pontec Multiclear 5000 / 8000 Pond Filter Spare Parts
Diagram - Part 6

Pontec Multiclear 5000 / 8000 Quartz Sleeve (13312 was 22622)
Our Ref: OAQ001 - Manufacturers Ref: 13312

Diagram Part Ref: 6
Click to Enlarge an image of Pontec Multiclear 5000 / 8000 Quartz Sleeve  (13312 was 22622)Large image of Pontec Multiclear 5000 / 8000 Quartz Sleeve  (13312 was 22622)
Roll over to zoom
Our Price:
23.74
Quantity:


Pontec Multiclear 5000 / 8000 Pond Filter Spare Parts
Diagram - Part 7

Pontec Multiclear 5000 - 8000 - Quartz Nut Set (12090)
Our Ref: OAS510 - Manufacturers Ref: 12090

Diagram Part Ref: 7
Click to Enlarge an image of Pontec Multiclear 5000 - 8000 - Quartz Nut Set (12090)Large image of Pontec Multiclear 5000 - 8000 - Quartz Nut Set (12090)
Roll over to zoom
Our Price:
3.20
Quantity:


Pontec Multiclear 5000 / 8000 Pond Filter Spare Parts
Diagram - Part 8

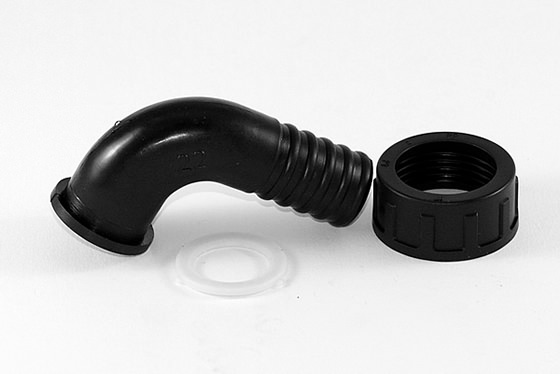

Pontec Multiclear 5000-8000 - 90 Deg UV Outlet and Gasket (11500)
Our Ref: OAS425 - Manufacturers Ref: 11500

Diagram Part Ref: 8
Click to Enlarge an image of Pontec Multiclear 5000-8000 - 90 Deg UV Outlet and Gasket (11500)Large image of Pontec Multiclear 5000-8000 - 90 Deg UV Outlet and Gasket (11500)
Roll over to zoom
Our Price:
3.20
Quantity:


Pontec Multiclear 5000 / 8000 Pond Filter Spare Parts
Diagram - Part 9

Pontec O-Ring for Uvc 7W / 9W / 11W - Head Unit (25969)
Our Ref: OAS212 - Manufacturers Ref: 25969

Diagram Part Ref: 9
Click to Enlarge an image of Pontec O-Ring for Uvc 7W / 9W / 11W - Head Unit (25969)Large image of Pontec O-Ring for Uvc 7W / 9W / 11W - Head Unit (25969)
Roll over to zoom
Our Price:
0.42
Quantity:
