Evolution Aqua EvoUV Clarifiers

You Are Here : Pond Products > Pumping and Filtering your Pond > Pond Ultra Violet Lights > Evolution Aqua EvoUV Clarifiers

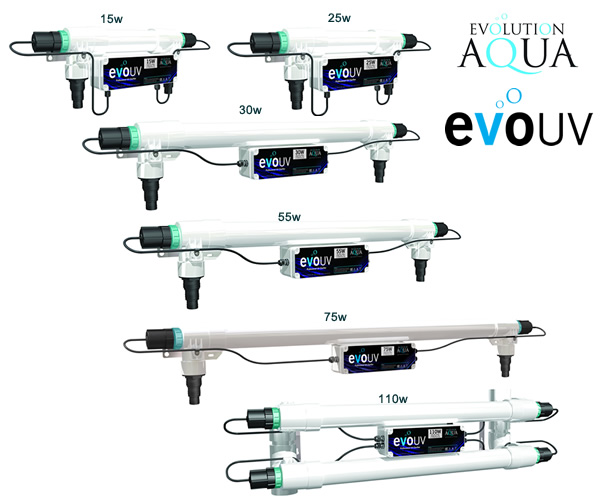

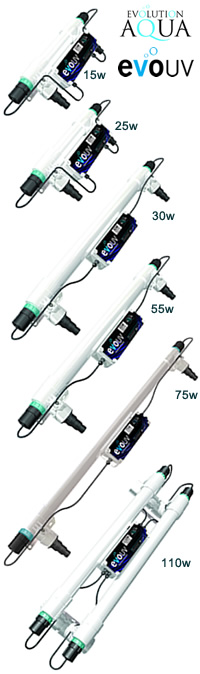

Evolution Aqua EvoUV Clarifiers



Evolution Aqua EvoUV Clarifiers

Evolution Aqua EvoUV 15w Ultra Violet Clarifier

Our Ref: EAU020
Manufacturers Ref: UV15CE
Our Price:
£119.94
See full details

Evolution Aqua EvoUV 25w Ultra Violet Clarifier

Our Ref: EAU021
Manufacturers Ref: UV25CE
Our Price:
£124.94
See full details

Evolution Aqua EvoUV 30w Ultra Violet Clarifier

Our Ref: EAU022
Manufacturers Ref: UV30CE
Our Price:
£174.95
See full details

Limited availability - 2 left in stock

Evolution Aqua EvoUV 55w Ultra Violet Clarifier

Our Ref: EAU023
Manufacturers Ref: UV55CE
Our Price:
£199.94
See full details

Free Next Working Day Delivery Upgrade
(Same day dispatch if ordered by 2pm Monday - Friday) - UK Mainland Only

Evolution Aqua EvoUV 75w Ultra Violet Clarifier

Our Ref: EAU024
Manufacturers Ref: UV75CE
Our Price:
£229.94
See full details

Limited availability - 2 left in stock

Evolution Aqua EvoUV 110w Ultra Violet Clarifier

Our Ref: EAU025
Manufacturers Ref: UV110CE
Our Price:
£274.94
See full details
Add a Evo UV Solvent Weld to 1½ Inch Hosetail Kit (glue NOT included) (+ £21.95)
New for 2021 the evoUV is a fully redesigned Ultra Violet Clarifier form Evolution Aqua. Their newest version maintains the high flowrates and energy efficiency of the older models but now has a completely removable and serviceable electrical box. As with their previous versions, the long water chambers on these UVs ensures the water and algae are near to the UV light for as long as possible, making them very efficient units. The evoUV can be mounted horizontally or vertically to ensure they are suitable for a wide range of installation positions and include mounting brackets. The 2021 version of the evoUV's also feature an electronic ballast and thermal safety protection system, which ensures that the units will switch off automatically before they overheat, or if they are run accidentally without water passing through. The evoUV 15w to 75w models are supplied with screw threaded hosetails for the connection of 25mm (1"), 32mm (1¼") and 38mm (1½") flexible pipework. Alternatively, the integrated 1½" BSP female screw thread makes them easy to connect to rigid pipework. For bigger systems and flow rates the evoUV 110w (2 x 55w bulbs) model is supplied with sockets that are ready to take 2" solvent weld rigid pipework connections. All models are supplied with 2.2m of mains cable and a 2 year guarantee.

Evolution Aqua evoUV (2021) Features
• Large body chamber allowing long contact time
• Conventional UV bulbs (cheaper replacement costs)
• Electronic ballast with thermal safety protection
• Can be mounted horizontally or vertically
• Traditional T8 bulbs for low replacement costs
• 2 year guarantee

Evolution Aqua EvoUV Clarifiers - Product Sizing

Use the table below to select the correctly sized item. If you have any difficulties deciding which size is right for you, contact us by email or phone and we will be very happy to assist you.

U.V. Model
Max Pond Volume Litres (Galls)
(Goldfish or Koi)
Bulb
Inlet size (mm)
Max Flowrate
LPH (GPH)
Dimensions
Length x Width x Height (mm)
EvoUV 15w
15000 (3300)
15w
(T8 conventional)
2" Screw Thread
25,32,38 Hosetails
7500 (1650)
536 x 130 x 116
EvoUV 25w
20000 (4400)
25w
(T8 conventional)
2" Screw Thread
25,32,38 Hosetails
10000 (2200)
536 x 130 x 116
EvoUV 30w
30000 (6600)
30w
(T8 conventional)
2" Screw Thread
25,32,38 Hosetails
15000 (3300)
974 x 167 x 86
EvoUV 55w
55000 (12100)
55w
(T8 conventional)
2" Screw Thread
25,32,38 Hosetail
20000 (4400)
974 x 167 x 86
EvoUV 75w
75000 (16500)
75w
(T8 conventional)

2" Screw Thread
25,32,38 Hosetail
25000 (5500)
1280 x 167 x 88
EvoUV 110w
75000 (16500)
2 x 55w
(T8 conventional)
2" Solvent Weld
(No Hosetails)
25000 (5500)
974 x 295 x 197
To calculate the approximate volume of your pond, select the Shape, Unit of Measurement and amount of shading, then press calculate. If you would like to try different combinations, remember to press Reset between calculations.
Pond Shape
Units
Sunlight
Pond Size
Rectangular Metres / Litres Full Sunshine
Circular Feet / Gallons Partly Shaded


Actual Volume

Effective Volume


What is Effective Volume ?
The effective volume is the quantity of water in your pond, plus an allowance for shallow and or ponds exposed to high levels of sunlight. Both of these situations will result in a higher than normal algae growth, and fish pollution. We advise that to ensure your that your equipment is correctly sized, the effective volume be considered the minimum size for the equipment you select. However do remember to check the details of the product you are interested in, to ensure that there are no other allowances or consideration specific to that product are required.
