Oase Filtomatic Filter Spare Parts

You Are Here : Spare Parts > Oase Spare Parts > Oase Pond Filter Spare Parts > Oase Filtomatic Filter Spare Parts

Oase Filtomatic Filter Spare Parts

Oase Filtomatic Filter Spare Parts

The Oase Filtomatic Filter spares that are currently available are the gasket set, lid, dirt outlet, gate outlet, addition parts pack, outlet nut, UV assembly, cleaning rotor, waterhousing, quartz nut head screw, quartz nut, quartz nut o'ring, quartz sleeve, UB bulb, slush pump, glues dirt tube, inner cover, replacement foam set, foam holder, lamella, pyramid upper part, pyramid connection, oval head screw, filter box, inner cover older clip, UVC complete assembly with reflector and filtomatic controller.

Spare Parts Quick Links

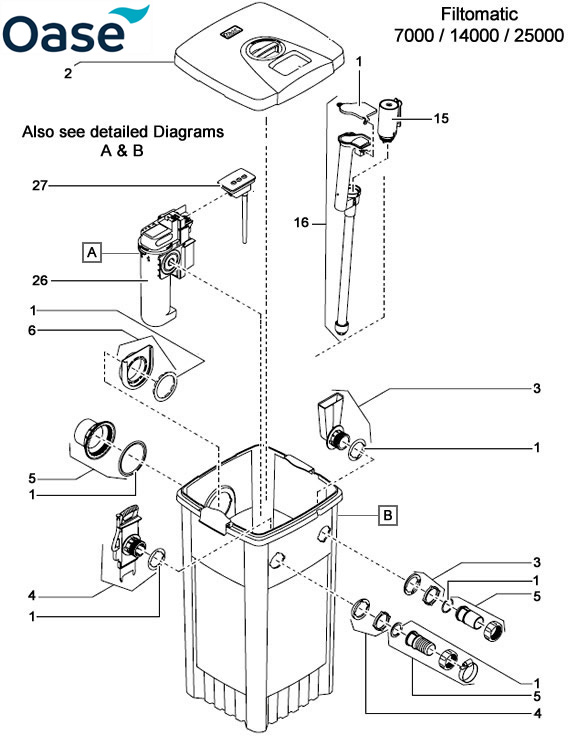

Oase Filtomatic Filter Spare Parts
Diagram - Part 1

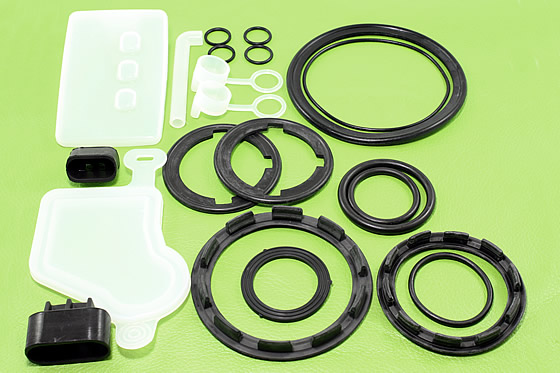

Filtomatic Gasket Set - 12572
Our Ref: OAS047 - Manufacturers Ref: 12572

Diagram Part Ref: 1
Click to Enlarge an image of Filtomatic Gasket Set - 12572Large image of Filtomatic Gasket Set - 12572
Roll over to zoom
Our Price:
£23.22
 Quantity:

Oase Filtomatic Filter Spare Parts
Diagram - Part 2

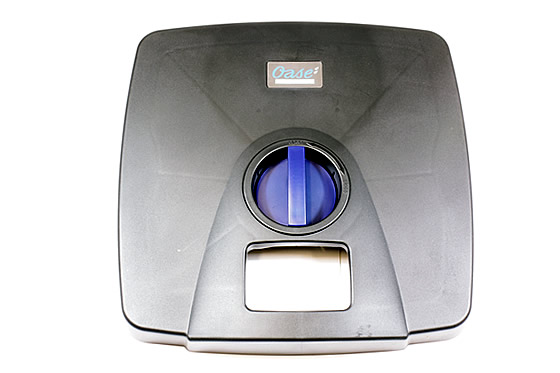

Filtomatic 7000 / 14000 CWS - Lid (12447)
Our Ref: OAS051 - Manufacturers Ref: 12447

Diagram Part Ref: 2

Limited availability - 1 left in stock


Click to Enlarge an image of Filtomatic 7000 / 14000 CWS - Lid (12447)Large image of Filtomatic 7000 / 14000 CWS - Lid (12447)
Roll over to zoom
Our Price:
£44.47
 Quantity:

Filtomatic 25000 CWS - Lid (12481)
Our Ref: OAS075 - Manufacturers Ref: 12481

Diagram Part Ref: 2

Limited availability - 1 left in stock


Click to Enlarge an image of Filtomatic 25000 CWS - Lid (12481)Large image of Filtomatic 25000 CWS - Lid (12481)
Roll over to zoom
Our Price:
£50.26
 Quantity:

Oase Filtomatic Filter Spare Parts
Diagram - Part 3

Filtomatic 7000 / 14000 CWS - Dirt Outlet (12082)
Our Ref: OAS062 - Manufacturers Ref: 12082

Diagram Part Ref: 3
Unfortunately this product Currently Out of Stock
Pleaseclick here to send us your details and we will contact you when it comes back in to stock.
Our Price:
£4.42
 Quantity:

Oase Filtomatic Filter Spare Parts
Diagram - Part 4

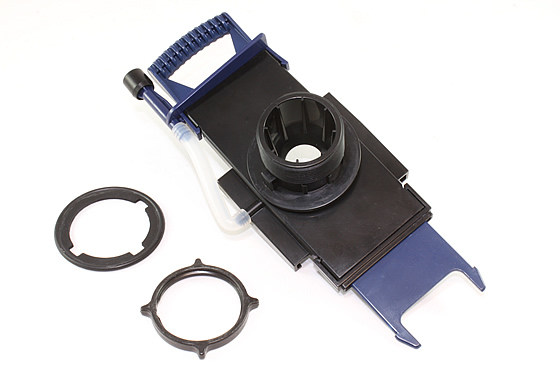

Filtomatic CWS - Gate Inlet (11367)
Our Ref: OAS064 - Manufacturers Ref: 11367

Diagram Part Ref: 4

Limited availability - 2 left in stock


Click to Enlarge an image of Filtomatic CWS - Gate Inlet (11367)Large image of Filtomatic CWS - Gate Inlet (11367)
Roll over to zoom
Our Price:
£10.37
 Quantity:

Oase Filtomatic Filter Spare Parts
Diagram - Part 5

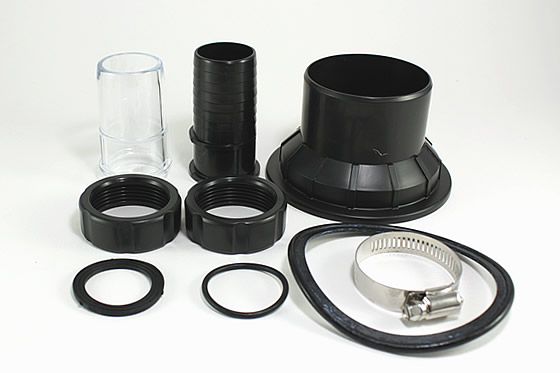

Filtomatic CWS - Additional Pack (11384)
Our Ref: OAS052 - Manufacturers Ref: 11384

Diagram Part Ref: 5
Click to Enlarge an image of Filtomatic CWS - Additional Pack (11384)Large image of Filtomatic CWS - Additional Pack (11384)
Roll over to zoom
Our Price:
£12.26
 Quantity:

Oase Filtomatic Filter Spare Parts
Diagram - Part 6

Filtomatic CWS - Outlet Nut (11364)
Our Ref: OAS053 - Manufacturers Ref: 11364

Diagram Part Ref: 6

Limited availability - 2 left in stock


Click to Enlarge an image of Filtomatic CWS - Outlet Nut (11364)Large image of Filtomatic CWS - Outlet Nut (11364)
Roll over to zoom
Our Price:
£3.58
 Quantity:

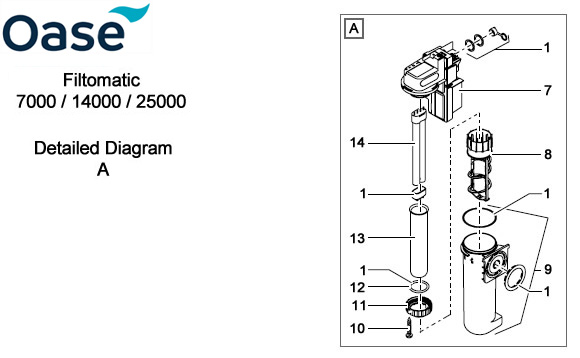

Detailed Diagram - A
Detailed Diagram - A

Oase Filtomatic Filter Spare Parts
Diagram - Part 7

Filtomatic 7000 - 11W Uvc Assembly (11374)
Our Ref: OAS048 - Manufacturers Ref: 11374

Diagram Part Ref: A7

Limited availability - 1 left in stock


Click to Enlarge an image of Filtomatic 7000 - 11W Uvc Assembly (11374)Large image of Filtomatic 7000 - 11W Uvc Assembly (11374)
Roll over to zoom
Our Price:
£106.30
 Quantity:

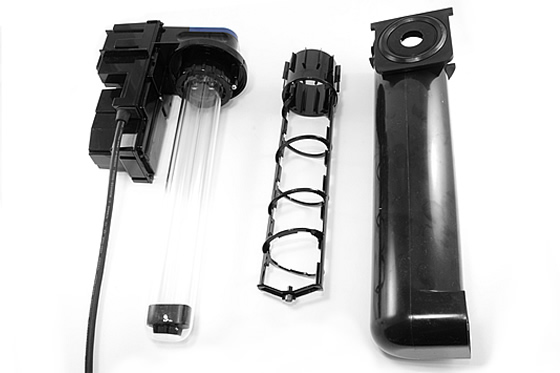

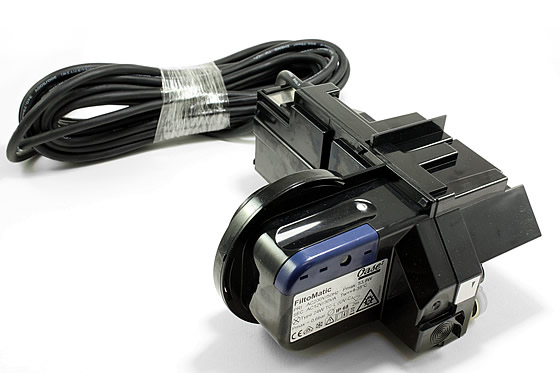

Filtomatic 14000 - 24w UVC Assembly (11460)
Our Ref: OAS049 - Manufacturers Ref: 11460

Diagram Part Ref: A7
Unfortunately this product Currently Out of Stock
Pleaseclick here to send us your details and we will contact you when it comes back in to stock.
Click to Enlarge an image of Filtomatic 14000 - 24w UVC Assembly (11460)Large image of Filtomatic 14000 - 24w UVC Assembly (11460)
Roll over to zoom
Our Price:
£176.56
 Quantity:

Filtomatic 25000 - 24w UVC Assembly (18231)
Our Ref: OAS083 - Manufacturers Ref: 18231

Diagram Part Ref: A7
Click to Enlarge an image of Filtomatic 25000 - 24w UVC Assembly (18231)Large image of Filtomatic 25000 - 24w UVC Assembly (18231)
Roll over to zoom
Our Price:
£125.26
 Quantity:

Oase Filtomatic Filter Spare Parts
Diagram - Part 8

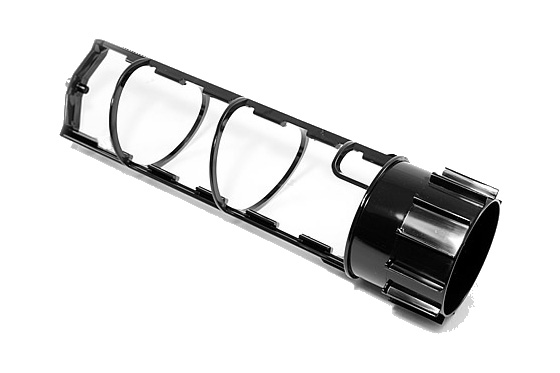

Filtomatic 7000 CWS - Cleaning Rotor (12703)
Our Ref: OAS054 - Manufacturers Ref: 12703

Diagram Part Ref: A8

Limited availability - 1 left in stock


Click to Enlarge an image of Filtomatic 7000 CWS - Cleaning Rotor (12703)Large image of Filtomatic 7000 CWS - Cleaning Rotor (12703)
Roll over to zoom
Our Price:
£10.37
 Quantity:

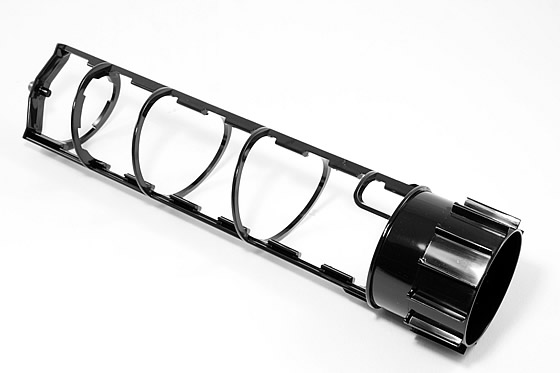

Filtomatic 14000 / 25000 - Cleaning Rotor (12705)
Our Ref: OAS063 - Manufacturers Ref: 12705

Diagram Part Ref: A8
Click to Enlarge an image of Filtomatic 14000 / 25000 - Cleaning Rotor (12705)Large image of Filtomatic 14000 / 25000 - Cleaning Rotor (12705)
Roll over to zoom
Our Price:
£26.56
 Quantity:

Oase Filtomatic Filter Spare Parts
Diagram - Part 9

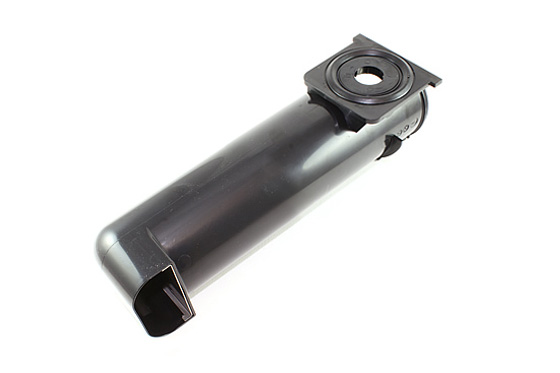

Filtomatic 7000 CWS - Waterhousing (12698)
Our Ref: OAS055 - Manufacturers Ref: 12698

Diagram Part Ref: A9
Unfortunately this product Currently Out of Stock
Pleaseclick here to send us your details and we will contact you when it comes back in to stock.
Click to Enlarge an image of Filtomatic 7000 CWS - Waterhousing (12698)Large image of Filtomatic 7000 CWS - Waterhousing (12698)
Roll over to zoom
Our Price:
£18.92
 Quantity:

Filtomatic 14000 CWS - Waterhousing (12700)
Our Ref: OAS067 - Manufacturers Ref: 12700

Diagram Part Ref: A9

Limited availability - 1 left in stock


Click to Enlarge an image of Filtomatic 14000 CWS - Waterhousing (12700)Large image of Filtomatic 14000 CWS - Waterhousing (12700)
Roll over to zoom
Our Price:
£29.34
 Quantity:

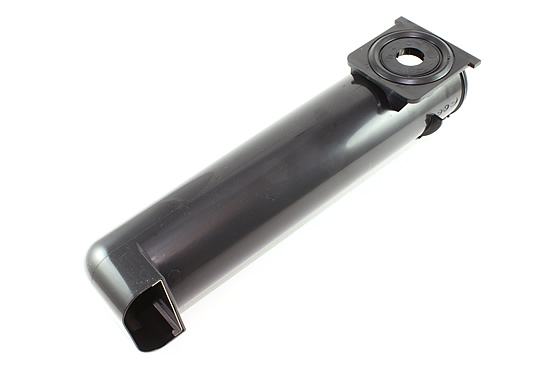

Filtomatic 25000 CWS - Waterhousing (17908)
Our Ref: OAS076 - Manufacturers Ref: 17908

Diagram Part Ref: A9

Limited availability - 1 left in stock


Click to Enlarge an image of Filtomatic 25000 CWS - Waterhousing (17908)Large image of Filtomatic 25000 CWS - Waterhousing (17908)
Roll over to zoom
Our Price:
£35.03
 Quantity:

Oase Filtomatic Filter Spare Parts
Diagram - Part 10

Filtomatic - Quartz Nut Oval Head Screw (27891)
Our Ref: OAS665 - Manufacturers Ref: 27891

Diagram Part Ref: A10
Click to Enlarge an image of Filtomatic - Quartz Nut Oval Head Screw (27891)Large image of Filtomatic - Quartz Nut Oval Head Screw (27891)
Roll over to zoom
Our Price:
£0.82
 Quantity:

Oase Filtomatic Filter Spare Parts
Diagram - Part 11

Filtomatic 7000 - Quartz Nut (12049)
Our Ref: OAS666 - Manufacturers Ref: 12049

Diagram Part Ref: A11
Click to Enlarge an image of Filtomatic 7000 - Quartz Nut (12049)Large image of Filtomatic 7000 - Quartz Nut (12049)
Roll over to zoom
Our Price:
£1.78
 Quantity:

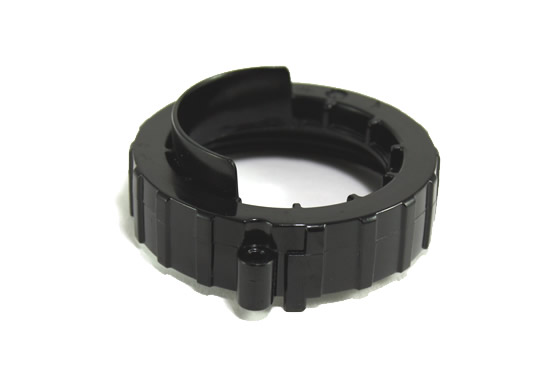

Filtomatic 14000 / 25000 - Quartz Nut (12054)
Our Ref: OAS065 - Manufacturers Ref: 12054

Diagram Part Ref: A11
Click to Enlarge an image of Filtomatic 14000 / 25000 - Quartz Nut (12054)Large image of Filtomatic 14000 / 25000 - Quartz Nut (12054)
Roll over to zoom
Our Price:
£3.58
 Quantity:

Oase Filtomatic Filter Spare Parts
Diagram - Part 12

Filtomatic 7000 - Quartz Nut O-Ring (73481 was 19475)
Our Ref: OAS681 - Manufacturers Ref: 73481

Diagram Part Ref: 1 / A12
Click to Enlarge an image of Filtomatic 7000 - Quartz Nut O-Ring (73481 was 19475)Large image of Filtomatic 7000 - Quartz Nut O-Ring (73481 was 19475)
Roll over to zoom
Our Price:
£1.69
 Quantity:

Filtomatic 14000 / 25000 - Quartz Nut O-Ring (73486 was 26143)
Our Ref: OAS717 - Manufacturers Ref: 73486

Diagram Part Ref: 1 / A12
Click to Enlarge an image of Filtomatic 14000 / 25000 - Quartz Nut O-Ring (73486 was 26143)Large image of Filtomatic 14000 / 25000 - Quartz Nut O-Ring (73486 was 26143)
Roll over to zoom
Our Price:
£2.12
 Quantity:

Oase Filtomatic Filter Spare Parts
Diagram - Part 13

Filtomatic - 7000 Quartz Sleeve (13312 was 22622)
Our Ref: OAQ001 - Manufacturers Ref: 13312

Diagram Part Ref: A13
Click to Enlarge an image of Filtomatic - 7000 Quartz Sleeve (13312 was 22622)Large image of Filtomatic - 7000 Quartz Sleeve (13312 was 22622)
Roll over to zoom
Our Price:
£26.56
 Quantity:

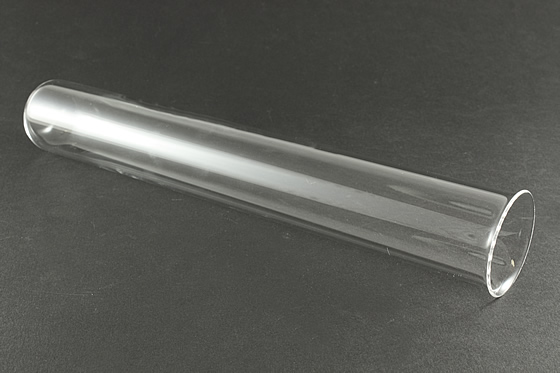

Filtomatic - 14000 / 25000 Quartz Sleeve (13332)
Our Ref: OAQ005 - Manufacturers Ref: 13332

Diagram Part Ref: 13
Click to Enlarge an image of Filtomatic - 14000 / 25000 Quartz Sleeve (13332)Large image of Filtomatic - 14000 / 25000 Quartz Sleeve (13332)
Roll over to zoom
Our Price:
£31.22
 Quantity:

Oase Filtomatic Filter Spare Parts
Diagram - Part 14

Oase - Filtomatic 7000 - 11w PLS UV Ultra Violet Bulb (2 Pin) (56112)
Our Ref: TMB019 - Manufacturers Ref: 56112

Diagram Part Ref: a14

Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Oase - Filtomatic 7000 - 11w PLS UV Ultra Violet Bulb (2 Pin) (56112)Large image of Oase - Filtomatic 7000 - 11w PLS UV Ultra Violet Bulb (2 Pin) (56112)
Roll over to zoom
Our Price:
£26.99
 Quantity:

UV Bulb Specification
• Description : Oase 11w PLS UV bulb (2 pins at one end and one lug per side)
• Length - Overall : 234mm
• Length - Glass : 194mm
• Ceramic - Width : 16mm
• Ceramic - Breadth : 32mm
Oase - Filtomatic 14000 / 25000 - 24W - 4 Pin PL-L TUV Ultra Violet Bulb (56237)
Our Ref: TMB015 - Manufacturers Ref: 56237

Diagram Part Ref: A14

Buy any 3 replacement UV Bulbs and get the cheapest one FREE
Click to Enlarge an image of Oase - Filtomatic 14000 / 25000 - 24W - 4 Pin PL-L TUV Ultra Violet Bulb (56237)Large image of Oase - Filtomatic 14000 / 25000 - 24W - 4 Pin PL-L TUV Ultra Violet Bulb (56237)
Roll over to zoom
Our Price:
£48.98
 Quantity:

UV Bulb Specification
• Description : Oase 24w PLL UV bulb (4 pins at one end)
• Length - Overall : 321mm
• Length - Excluding Pins : 314mm
• Length - Glass : 290mm
• Ceramic - Width : 23mm
• Ceramic - Breadth : 45mm

Oase Filtomatic Filter Spare Parts
Diagram - Part 15

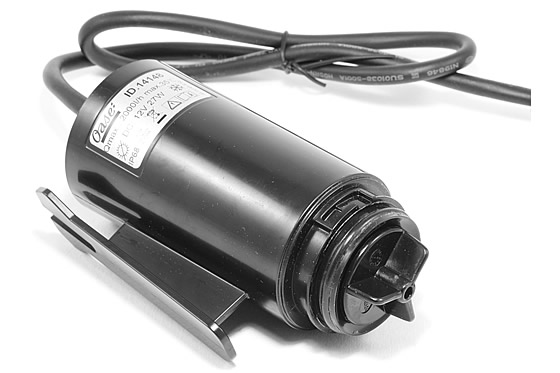

Filtomatic - Slush Pump (14148)
Our Ref: OAS066 - Manufacturers Ref: 14148

Diagram Part Ref: 15
Click to Enlarge an image of Filtomatic - Slush Pump (14148)Large image of Filtomatic - Slush Pump (14148)
Roll over to zoom
Our Price:
£41.71
 Quantity:

Oase Filtomatic Filter Spare Parts
Diagram - Part 16

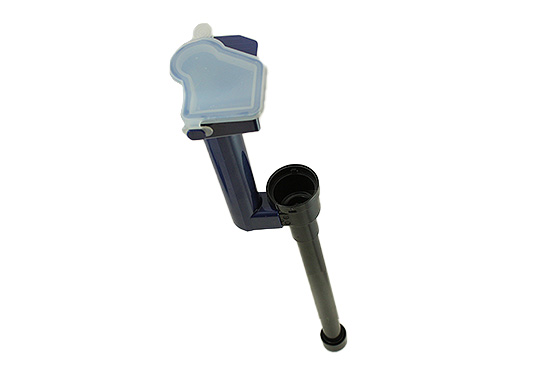

Filtomatic 7000 CWS - Dirt Tube Glued (12319)
Our Ref: OAS056 - Manufacturers Ref: 12319

Diagram Part Ref: 16
Unfortunately this product Currently Out of Stock
Pleaseclick here to send us your details and we will contact you when it comes back in to stock.
Click to Enlarge an image of Filtomatic 7000 CWS - Dirt Tube Glued (12319)Large image of Filtomatic 7000 CWS - Dirt Tube Glued (12319)
Roll over to zoom
Our Price:
£14.14
 Quantity:

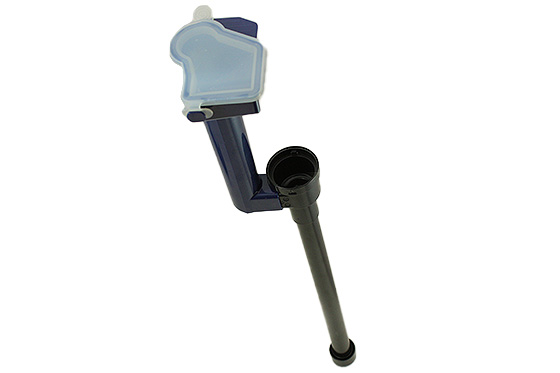

Filtomatic 14000 / 25000 CWS - Dirt Tube Glued (12321)
Our Ref: OAS077 - Manufacturers Ref: 12321

Diagram Part Ref: 16

Limited availability - 2 left in stock


Click to Enlarge an image of Filtomatic 14000 / 25000 CWS - Dirt Tube Glued (12321)Large image of Filtomatic 14000 / 25000 CWS - Dirt Tube Glued (12321)
Roll over to zoom
Our Price:
£26.56
 Quantity:

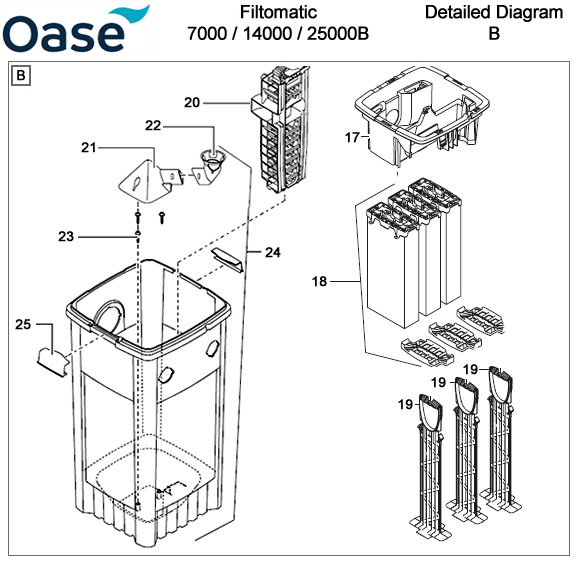

Detailed Diagram - B
Detailed Diagram - B

Oase Filtomatic Filter Spare Parts
Diagram - Part 17

Filtomatic 7000 / 14000 CWS - Inner Cover (10857)
Our Ref: OAS068 - Manufacturers Ref: 10857

Diagram Part Ref: B17
Unfortunately this product Currently Out of Stock
Pleaseclick here to send us your details and we will contact you when it comes back in to stock.
Our Price:
£24.67
 Quantity:

Filtomatic 25000 CWS - Inner Cover (10860)
Our Ref: OAS078 - Manufacturers Ref: 10860

Diagram Part Ref: B18
Unfortunately this product Currently Out of Stock
Pleaseclick here to send us your details and we will contact you when it comes back in to stock.
Our Price:
£41.71
 Quantity:

Oase Filtomatic Filter Spare Parts
Diagram - Part 18

Oase Filtomatic 7000 Replacement Foam Set (50901)
Our Ref: OAS045 - Manufacturers Ref: 50901

Diagram Part Ref: B18
Contains 1 x Red Filter Foams and 2 x Purple Filter Foams
Limited availability - 2 left in stock


Click to Enlarge an image of Oase Filtomatic 7000 Replacement Foam Set (50901)Large image of Oase Filtomatic 7000 Replacement Foam Set (50901)
Roll over to zoom
Our Price:
£52.04
 Quantity:

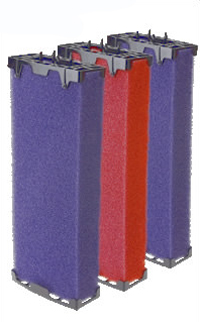

Oase Filtomatic 140000 - 25000 Foam Set (50904)
Our Ref: OAS046 - Manufacturers Ref: 50904

Diagram Part Ref: B18
Contains 1 x Red Filter Foams and 2 x Purple Filter Foams
(For the 25000 Filtomatic, 2 of these sets are required)
Click to Enlarge an image of Oase Filtomatic 140000 - 25000 Foam Set (50904)Large image of Oase Filtomatic 140000 - 25000 Foam Set (50904)
Roll over to zoom
Our Price:
£78.59
 Quantity:

Oase Filtomatic Filter Spare Parts
Diagram - Part 19

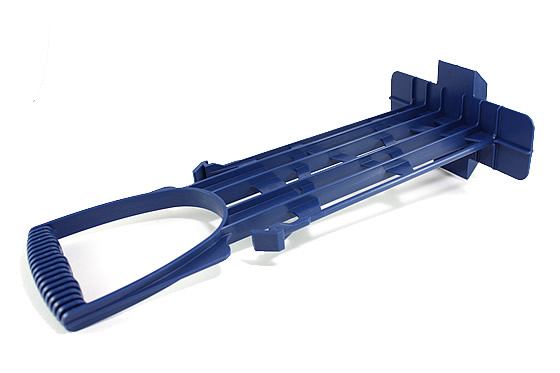

Filtomatic 7000 CWS - Foam Holder (11050)
Our Ref: OAS057 - Manufacturers Ref: 11050

Diagram Part Ref: B19

Limited availability - 2 left in stock


Click to Enlarge an image of Filtomatic 7000 CWS - Foam Holder (11050)Large image of Filtomatic 7000 CWS - Foam Holder (11050)
Roll over to zoom
Our Price:
£10.37
 Quantity:

Filtomatic 14000 / 25000 CWS - Foam Holder (11052)
Our Ref: OAS069 - Manufacturers Ref: 11052

Diagram Part Ref: B19

Limited availability - 2 left in stock


Click to Enlarge an image of Filtomatic 14000 / 25000 CWS - Foam Holder (11052)Large image of Filtomatic 14000 / 25000 CWS - Foam Holder (11052)
Roll over to zoom
Our Price:
£16.99
 Quantity:

Oase Filtomatic Filter Spare Parts
Diagram - Part 20

Filtomatic 7000 CWS - Lamella (11425)
Our Ref: OAS058 - Manufacturers Ref: 11425

Diagram Part Ref: B20
Unfortunately this product Currently Out of Stock
Pleaseclick here to send us your details and we will contact you when it comes back in to stock.
Our Price:
£20.87
 Quantity:

Filtomatic 14000 / 25000 CWS - Lamella (17684)
Our Ref: OAS070 - Manufacturers Ref: 17684

Diagram Part Ref: B20
Unfortunately this product Currently Out of Stock
Pleaseclick here to send us your details and we will contact you when it comes back in to stock.
Our Price:
£8.04
 Quantity:

Oase Filtomatic Filter Spare Parts
Diagram - Part 21

Filtomatic 7000 / 14000 CWS - Pyramide Upper Part (12756)
Our Ref: OAS071 - Manufacturers Ref: 12756

Diagram Part Ref: B21
Unfortunately this product Currently Out of Stock
Pleaseclick here to send us your details and we will contact you when it comes back in to stock.
Our Price:
£16.07
 Quantity:

Filtomatic 25000 CWS - Pyramide Upper Part (12757)
Our Ref: OAS079 - Manufacturers Ref: 12757

Diagram Part Ref: B21
Unfortunately this product Currently Out of Stock
Pleaseclick here to send us your details and we will contact you when it comes back in to stock.
Our Price:
£20.87
 Quantity:

Oase Filtomatic Filter Spare Parts
Diagram - Part 22

Filtomatic - Pyramide Connection (12114)
Our Ref: OAS050 - Manufacturers Ref: 12114

Diagram Part Ref: B22

Limited availability - 1 left in stock


Click to Enlarge an image of Filtomatic - Pyramide Connection (12114)Large image of Filtomatic - Pyramide Connection (12114)
Roll over to zoom
Our Price:
£3.58
 Quantity:

Oase Filtomatic Filter Spare Parts
Diagram - Part 23

Filtomatic - Oval Head Screw Ch-V2A Din 7981 4.8 X 22 (25000)
Our Ref: OAS059 - Manufacturers Ref: 25000

Diagram Part Ref: B23
Unfortunately this product Currently Out of Stock
Pleaseclick here to send us your details and we will contact you when it comes back in to stock.
Our Price:
£0.46
 Quantity:

Oase Filtomatic Filter Spare Parts
Diagram - Part 24

Filtomatic 7000 CWS - Filter Box (12003)
Our Ref: OAS060 - Manufacturers Ref: 12003

Diagram Part Ref: B24
Includes Parts: 21, 22, 23 and 25 Unfortunately this product Currently Out of Stock
Pleaseclick here to send us your details and we will contact you when it comes back in to stock.
Our Price:
£74.89
 Quantity:

Filtomatic 14000 CWS - Filter Box (12051)
Our Ref: OAS072 - Manufacturers Ref: 12051

Diagram Part Ref: B24
Includes Parts: 21, 22, 23 and 25 Unfortunately this product Currently Out of Stock
Pleaseclick here to send us your details and we will contact you when it comes back in to stock.
Our Price:
£86.34
 Quantity:

Filtomatic 25000 CWS - Filter Box (12401)
Our Ref: OAS080 - Manufacturers Ref: 12401

Diagram Part Ref: B24
Includes Parts: 21, 22, 23 and 25 Unfortunately this product Currently Out of Stock
Pleaseclick here to send us your details and we will contact you when it comes back in to stock.
Our Price:
£135.67
 Quantity:

Oase Filtomatic Filter Spare Parts
Diagram - Part 25

Filtomatic - Inner Cover Holder Clip (11041)
Our Ref: OAS073 - Manufacturers Ref: 11041

Diagram Part Ref: B25

Limited availability - 2 left in stock


Click to Enlarge an image of Filtomatic - Inner Cover Holder Clip (11041)Large image of Filtomatic - Inner Cover Holder Clip (11041)
Roll over to zoom
Our Price:
£1.42
 Quantity:

Oase Filtomatic Filter Spare Parts
Diagram - Part 26

Filtomatic 7000 CWS - UVC 11 Complete Assembly - With Reflector (11383)
Our Ref: OAS061 - Manufacturers Ref: 11383

Diagram Part Ref: 26
Unfortunately this product Currently Out of Stock
Pleaseclick here to send us your details and we will contact you when it comes back in to stock.
Our Price:
£135.67
 Quantity:

Filtomatic 14000 CWS - UVC 24W Complete Assembly - With Reflector (11391)
Our Ref: OAS074 - Manufacturers Ref: 11391

Diagram Part Ref: 26

Limited availability - 1 left in stock


Click to Enlarge an image of Filtomatic 14000 CWS - UVC 24W Complete Assembly - With Reflector (11391)Large image of Filtomatic 14000 CWS - UVC 24W Complete Assembly - With Reflector (11391)
Roll over to zoom
Our Price:
£249.61
 Quantity:

Filtomatic 25000 CWS - UVC 24 Complete Assembly - With Reflector (17685)
Our Ref: OAS081 - Manufacturers Ref: 17685

Diagram Part Ref: 26

Limited availability - 1 left in stock


Click to Enlarge an image of Filtomatic 25000 CWS - UVC 24 Complete Assembly - With Reflector (17685)Large image of Filtomatic 25000 CWS - UVC 24 Complete Assembly - With Reflector (17685)
Roll over to zoom
Our Price:
£207.82
 Quantity:

Oase Filtomatic Filter Spare Parts
Diagram - Part 27

Filtomatic Controller (14150)
Our Ref: OAS082 - Manufacturers Ref: 14150

Diagram Part Ref: 27

Limited availability - 2 left in stock


Click to Enlarge an image of Filtomatic Controller (14150)Large image of Filtomatic Controller (14150)
Roll over to zoom
Our Price:
£78.73
 Quantity:


Customers Reviews


spacer

Why Buy From Us

FREE Delivery for Orders Over £50
(Uk Mainland excluding Highlands and Islands of Scotland)		Tick
1000's of Happy CustomersTick
1000's of Products in StockTick
Free Help and Advice from our Experienced Technical StaffTick
Over 20 Years Mail Order ExperienceTick
spacer

Secure Payments

Secure Online Payments
spacer

Follow Us

Manufacturers Details

Oase Pond ProductsHozelock Pond ProductsGordon Low Pond LinersEvolution Aqua Pond ProductsLotus Pond ProductsPontec Pond ProductsBlagdon Interpet Pond Products
Tetra Pond ProductsTAP Pond ProductsSmart Solar Garden ProductsJBL Fish Keeping ProductsAquaHydrotech - Ecoponds Pond ProductsFish mate and Pond Mate Pond ProductsWater Gardening Direct Pond Products
